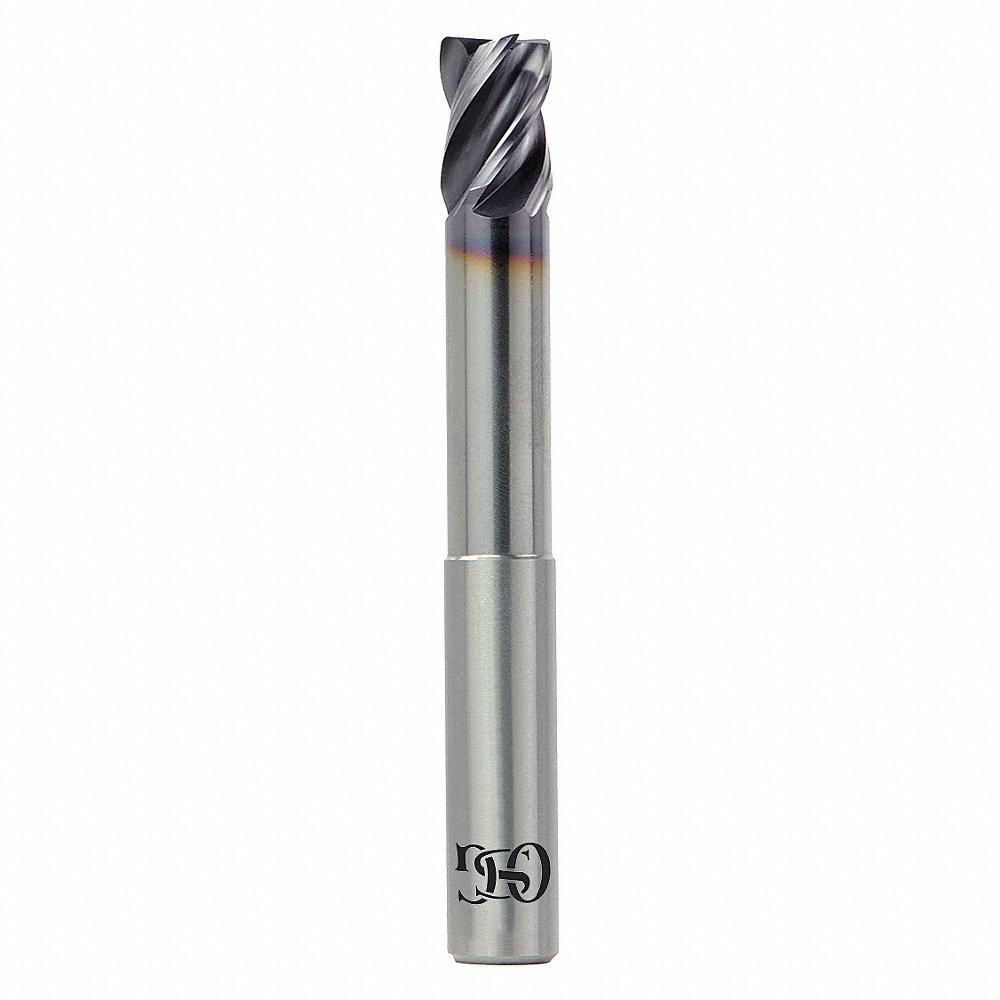

OSG VG446-3752 Corner Radius End Mill, TiAlN, 4 Flutes, 3/8 Inch Milling Dia.
Item: CT4XYNModel: VG446-3752Cross Ref: 35CH63
7 In Stock
3/8"
0.5"
4
Ships within 2 days via
€119.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Corner Radius End Mill |
| Cast Iron (k) Compatibility | Yes |
| Chamfer Width | 0.02" |
| Corner Radius | 0.02" |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 1/2" |
| Cutting Type | Center Cutting |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Corner Radius |
| End Type | Single End |
| Finish | Titanium Aluminum Nitride Coating |
| Finish-machining | TiAlN |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 35° |
| List Number | VG446 |
| Material | Carbide |
| Material Grade-machining | General Purpose |
| Material-machining | Carbide |
| Milling Dia. | 3/8" |
| Neck Dia. | 11/32" |
| Neck Length | 1 7/8" |
| No. Of Flutes | 4 |
| Non Ferrous (n) Compatibility | No |
| Overall Length | 4" |
| Primary Material Application | Cast Iron, Hardened Steel, Nickel, Stainless Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, M, P, S |
| Shank Dia. | 3/8" |
| Shank Type | End Mill , Weldon Flat |
| Shank Type-machining | Weldon Flat |
| Single End/double End | Single End |
| Stainless Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Milling Dia. | Primary Material Application Iso Code | Cutting Length | Shank Dia. | Shank Type-machining | Finish-machining | Neck Length | Neck Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| HP432-5006 | 1/2" | K, M, P, S | 1" | 1/2" | Straight | TiAlN | - | - | €162.10 | |
| HP432-2502 | 1/4" | K, M, P, S | 3/4" | 1/4" | Straight | TiAlN | - | - | €59.32 | |
| HP432-1251 | 1/8" | K, M, P, S | 1/2" | 1/8" | - | - | - | - | €30.03 | |
| HP432-1872 | 3/16" | K, M, P, S | 5/8" | 3/16" | Straight | TiAlN | - | - | €45.18 | |
| HP432-7512 | 3/4" | K, M, P, S | 1 1/2" | 3/4" | Straight | TiAlN | - | - | €433.50 | |
| HP432-7509 | 3/4" | K, M, P, S | 1 1/2" | 3/4" | Straight | TiAlN | - | - | €433.50 | |
| HP432-7506 | 3/4" | K, M, P, S | 1 1/2" | 3/4" | Straight | TiAlN | - | - | €433.50 |
