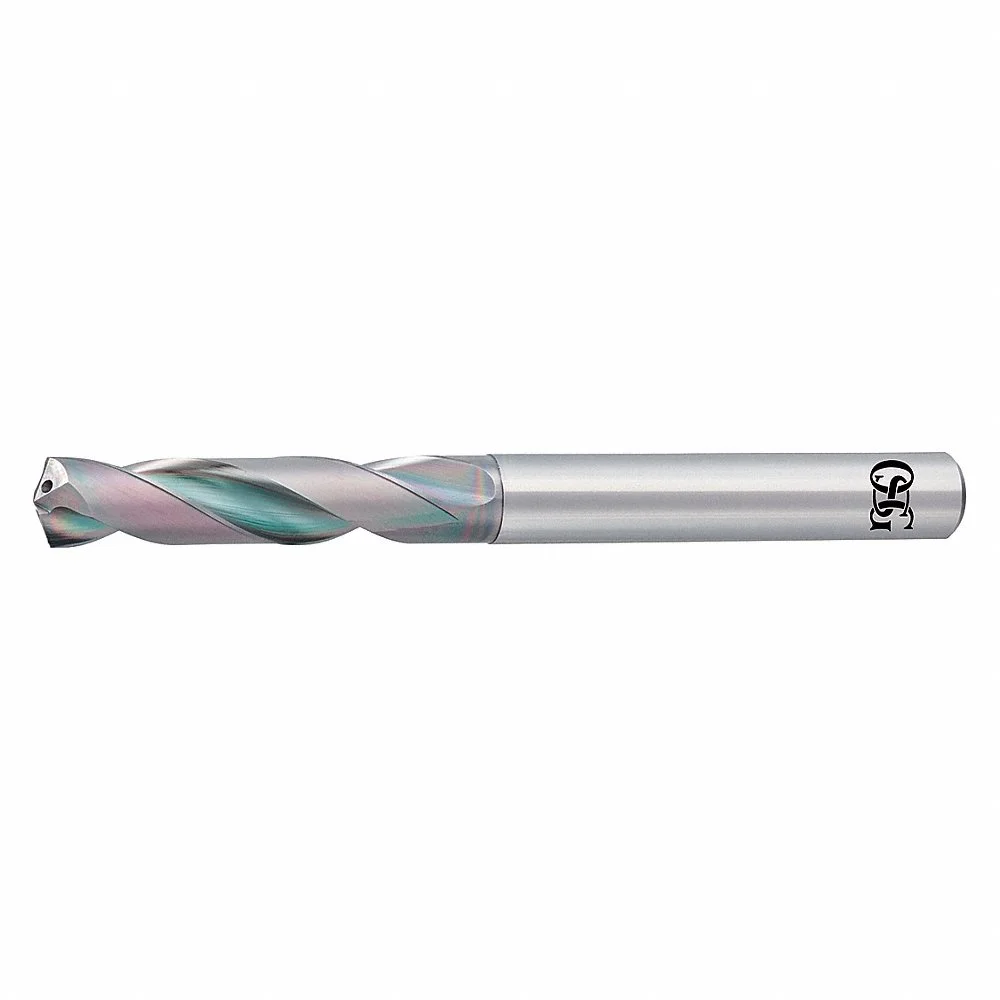

OSG 8700660 Screw Machine Drill Bit, 6.60 mm Size, 88 mm Overall Length
Item: CT6KBMModel: 8700660Cross Ref: 405L44
7 In Stock
0.259"
+0 To -0.0009"
Ships within 2 days via
5.00% off
€167.40 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Coolant Thru | Yes |
| Cutting Dia. Tolerance | -0.0009" to 0" , H8 |
| Cutting Direction | Right |
| Decimal Equivalent | 0.2598 |
| Depth X Dia. Ratio | 3xd |
| Diameter | 0.25984" |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Egias |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | 6.6 mm |
| Drill Diameter Tolerance | -0.018 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Drilling L/d Ratio | 3 |
| Finish | EgiAs |
| Finish - Machining | Egias |
| Flute Length | 33 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 30° |
| Helix Direction | Right Hand |
| Length Of Cut Specification | Stub |
| List Number | 6500 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 88 mm |
| Point Angle | 140° |
| Point Thinning | R Thinning |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P, S |
| Secondary Material Application | Aluminum, Nickel Alloy, Stainless Steel |
| Secondary Material Application Iso Code | M, N, S |
| Shank Dia. | 8 mm |
| Shank Length | 55 mm |
| Shank Tolerance | H6 |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| Substrate | Carbide |
| Surface Treatment | EgiAs |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 8.8 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Flute Length | Drill Bit Size | Flute Type | Shank Dia. | Drill Bit Point Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
220-2280 | 2 3/4" | 0.228 | 1 3/4" | #1 | Spiral | 0.219" | 4 Facet Point | Non Coolant Through | €48.65 | |
 |
215-2280 | 2 7/16" | 0.228 | 1 5/16" | #1 | - | 0.219" | 4 Facet Point | Non Coolant Through | €54.59 | |
 |
215-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | - | 0.188" | 4 Facet Point | Non Coolant Through | €45.23 | |
|
220-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.87 | |
|
215-1910 | 2 1/4" | 0.191 | 1 3/16" | #11 | - | 0.188" | 4 Facet Point | - | €42.86 | |
|
220-1890 | 2 3/4" | 0.189 | 1 5/8" | #12 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.32 | |
|
215-1890 | 57 mm | 0.189 | - | #12 | Spiral | 4.8 mm | 4 Facet Point | Non Coolant Through | €43.70 |
