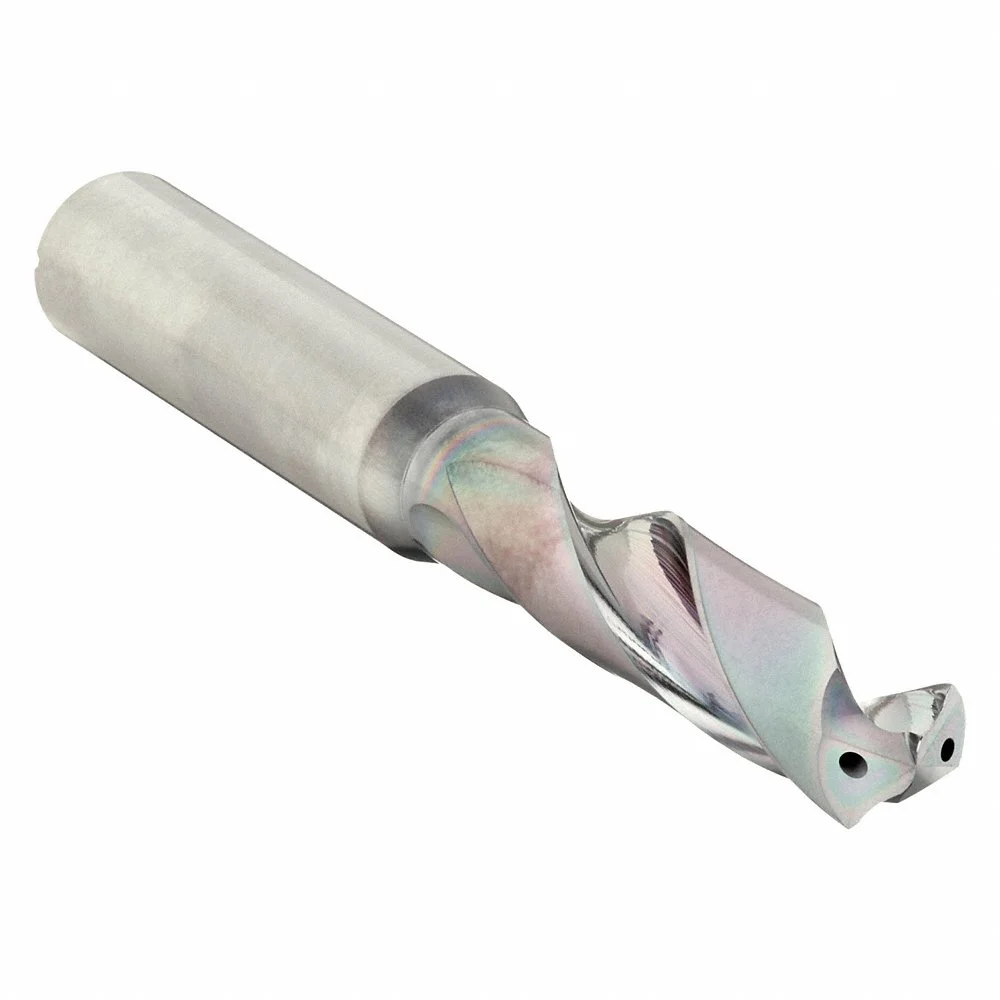

OSG 8691020 Screw Machine Drill Bit, 10.20 mm Size, 113 mm Overall Length
Item: CT6HQLModel: 8691020Cross Ref: 405M15
7 In Stock
0.401"
+0 To -0.0011"
Ships within 2 days via
10.00% off
€271.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right |
| Decimal Equivalent | 0.4016 |
| Depth X Dia. Ratio | 3xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Egias |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | 10.2 mm |
| Drill Diameter Tolerance | -0.027 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Finish | EgiAs |
| Finish - Machining | Egias |
| Flute Length | 51 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 30° |
| List Number | 6500 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Number Of Coolant Holes | 3 |
| Number Of Flutes | 2 |
| Overall Length | 113 mm |
| Primary Material Application | Hardened Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | 4.3, H, P |
| Secondary Material Application | Aluminum, Inconel, Stainless Steel |
| Secondary Material Application Iso Code | M, N, S |
| Shank Dia. | 11 mm |
| Shank Length | 62 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.12 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Drill Bit Size | Shank Dia. | Max. Drilling Depth | Price | |
|---|---|---|---|---|---|---|---|---|
 |
220-2280 | 2 3/4" | 0.228 | #1 | 0.219" | 44.5 mm | €48.65 | |
 |
215-2280 | 2 7/16" | 0.228 | #1 | 0.219" | 33.3 mm | €54.59 | |
 |
215-1935 | 2 1/4" | 0.1935 | #10 | 0.188" | 30.2 mm | €45.23 | |
|
220-1935 | 2 1/4" | 0.1935 | #10 | 0.188" | 41.3 mm | €43.87 | |
|
215-1910 | 2 1/4" | 0.191 | #11 | 0.188" | 30.2 mm | €42.86 | |
|
220-1890 | 2 3/4" | 0.189 | #12 | 0.188" | 41.3 mm | €43.32 | |
|
215-1890 | 57 mm | 0.189 | #12 | 4.8 mm | 30.2 mm | €43.70 |
