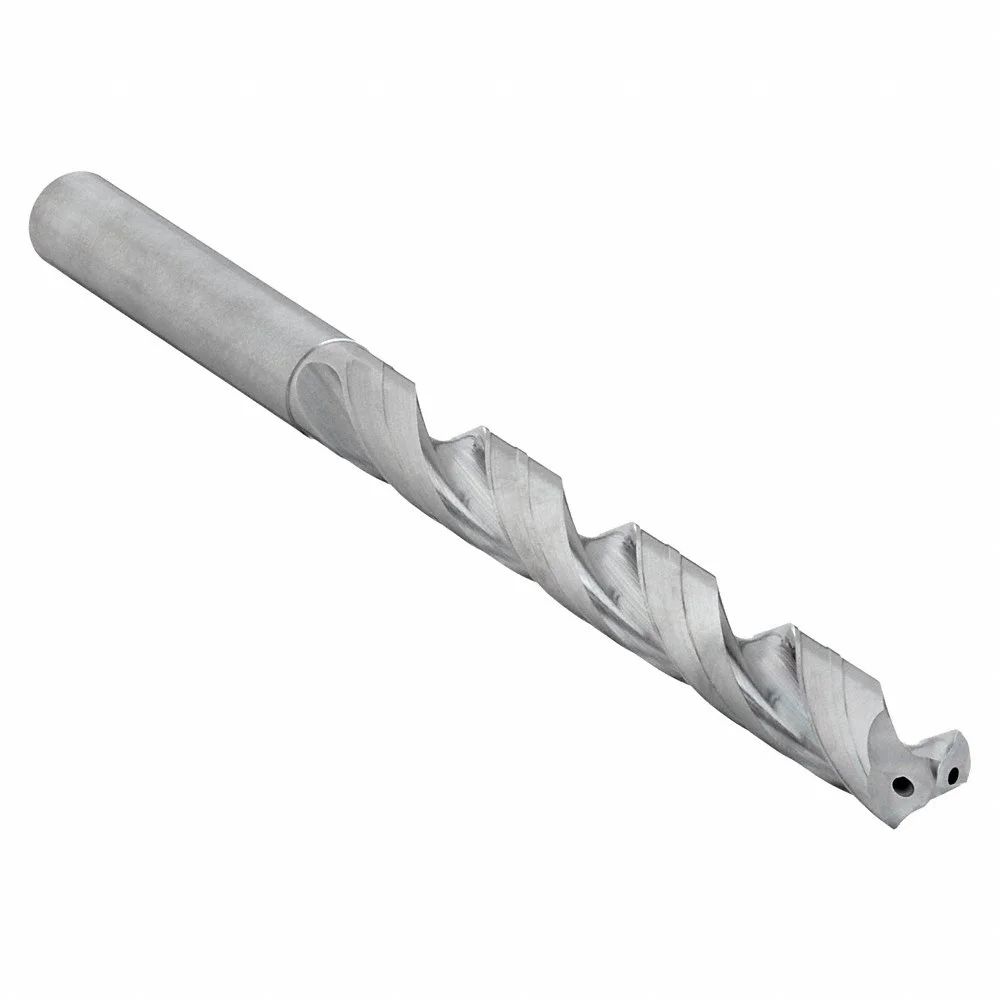

OSG 8694850 Taper Length Drill Bit, 8.50 mm Drill Bit Size, 94 mm Flute Length, 9 mm Shank Dia
Item: CT6YCHModel: 8694850Cross Ref: 405T86
7 In Stock
0.334"
0.354"
Ships within 2 days via
10.00% off
€296.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Taper Length Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.3346 |
| Depth X Dia. Ratio | 8xd |
| Drill Bit Dimension Type | Metric |
| Drill Bit Finish | Egias |
| Drill Bit Material | Solid Carbide |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | X Thinning Point |
| Drill Bit Size | 8.5 mm |
| Drill Diameter Tolerance | -0.022 mm to 0 mm |
| Drill Length Class | Taper Length |
| Finish | EgiAs |
| Finish - Machining | Egias |
| Flute Length | 94 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 30° |
| List Number | 6520 |
| Material | Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 94 mm |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 150 mm |
| Point Angle | 140° |
| Point Type | X Thinning Point |
| Primary Material Application | Cast Iron, Hardened Steel, Steel, Titanium, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P, S |
| Secondary Material Application | Aluminum, Nickel, Stainless Steel |
| Secondary Material Application Iso Code | M, N, S |
| Shank Dia. | 9 mm |
| Shank Length | 56 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 8.5 mm |
| Standards | Not Rated |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Decimal Equivalent | Overall Length | Max. Drilling Depth | Shank Dia. | Drill Bit Size | Price | |
|---|---|---|---|---|---|---|---|---|
 |
HP258-1890 | 0.189 | 90 mm | 50 mm | 6 mm | #12 | €180.37 | |
 |
8704480 | 0.189 | 105 mm | 53 mm | 6 mm | #12 | €242.98 | |
|
HP258-1850 | 0.185 | 85 mm | 45 mm | 6 mm | #13 | €180.37 | |
|
8704470 | 0.185 | 105 mm | 52 mm | 6 mm | #13 | €242.98 | |
|
HP258-1610 | 0.161 | 85 mm | 50 mm | 6 mm | #20 | €176.62 | |
|
652016011 | 0.161 | 105 mm | 45 mm | - | #20 | €237.71 | |
|
HP258-1496 | 0.1495 | 85 mm | 45 mm | 4 mm | #25 | €173.05 |
