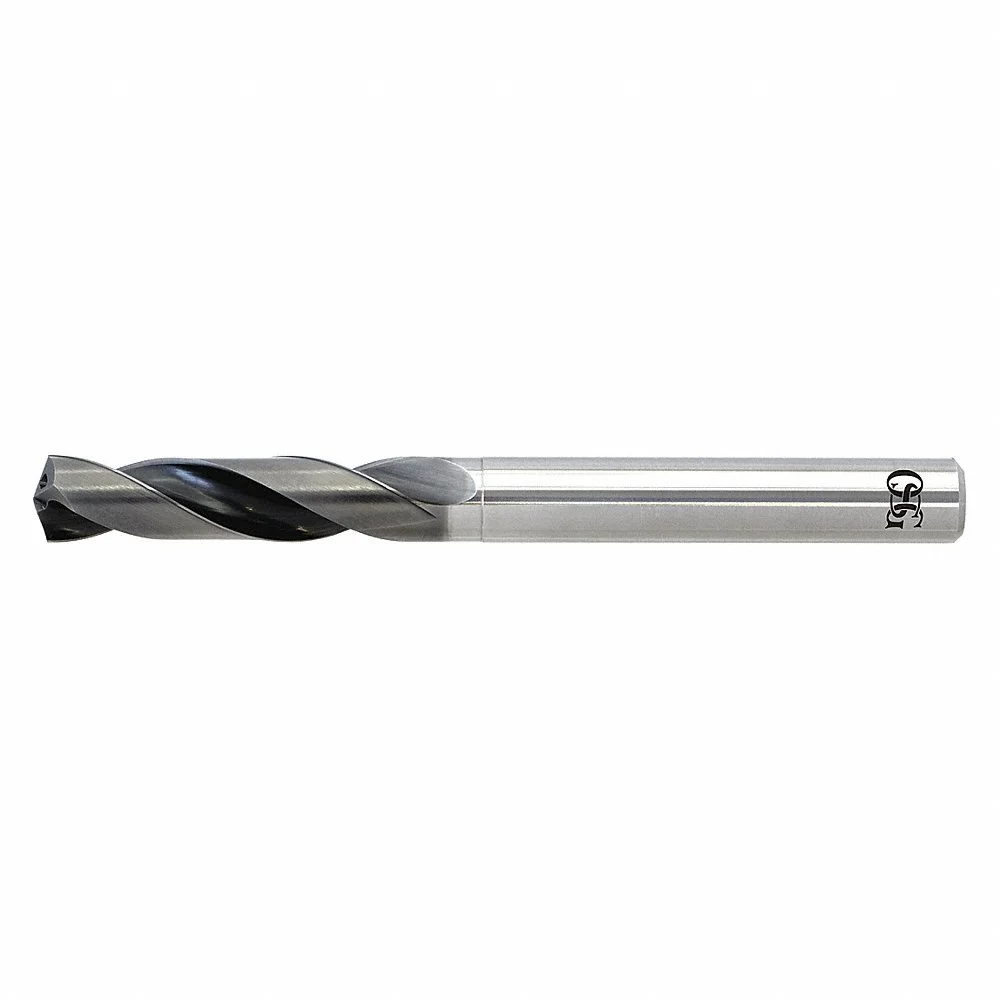

OSG 8665280 Screw Machine Drill Bit, 2.80 mm Size, 66 mm Overall Length, Carbide
Item: CT6JENModel: 8665280Cross Ref: 54LU54
7 In Stock
0.110"
+0 To -0.0006"
Ships within 2 days via
5.00% off
€121.08 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Coolant Thru | Yes |
| Cutting Dia. Tolerance | -0.0006" to 0" , H8 |
| Cutting Direction | Right |
| Decimal Equivalent | 0.1102 |
| Depth X Dia. Ratio | 3xd |
| Diameter | 0.11024" |
| Drill Bit Dimension Type | Metric |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 2.8 mm |
| Drill Diameter Tolerance | -0.014 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Drilling L/d Ratio | 3 |
| Finish | WXL |
| Finish - Machining | WXL |
| Flute Length | 17 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| Helix Angle | 30° |
| Helix Direction | Right Hand |
| Length Of Cut Specification | Stub |
| List Number | 5200 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 66 mm |
| Point Angle | 140° |
| Point Thinning | R Thinning |
| Primary Material Application | Cast Iron, Stainless Steel, Steel, Titanium |
| Primary Material Application Iso Code | K, M, P, S |
| Secondary Material Application | Alloy Steel, Aluminum, Hardened Steel, High Carbon Steel |
| Secondary Material Application Iso Code | H, N, P |
| Shank Dia. | 3 mm |
| Shank Length | 49 mm |
| Shank Tolerance | H6 |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| Substrate | Carbide |
| Surface Treatment | WXL |
| System Of Measurement | Metric |
| Web Thinning | R Thinned |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6.6 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Length | Decimal Equivalent | Flute Length | Drill Bit Size | Flute Type | Shank Dia. | Drill Bit Point Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
220-2280 | 2 3/4" | 0.228 | 1 3/4" | #1 | Spiral | 0.219" | 4 Facet Point | Non Coolant Through | €48.65 | |
 |
215-2280 | 2 7/16" | 0.228 | 1 5/16" | #1 | - | 0.219" | 4 Facet Point | Non Coolant Through | €54.59 | |
 |
215-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | - | 0.188" | 4 Facet Point | Non Coolant Through | €45.23 | |
|
220-1935 | 2 1/4" | 0.1935 | 1 3/16" | #10 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.87 | |
|
215-1910 | 2 1/4" | 0.191 | 1 3/16" | #11 | - | 0.188" | 4 Facet Point | - | €42.86 | |
|
220-1890 | 2 3/4" | 0.189 | 1 5/8" | #12 | Spiral | 0.188" | 4 Facet Point | Non Coolant Through | €43.32 | |
|
215-1890 | 57 mm | 0.189 | - | #12 | Spiral | 4.8 mm | 4 Facet Point | Non Coolant Through | €43.70 |
