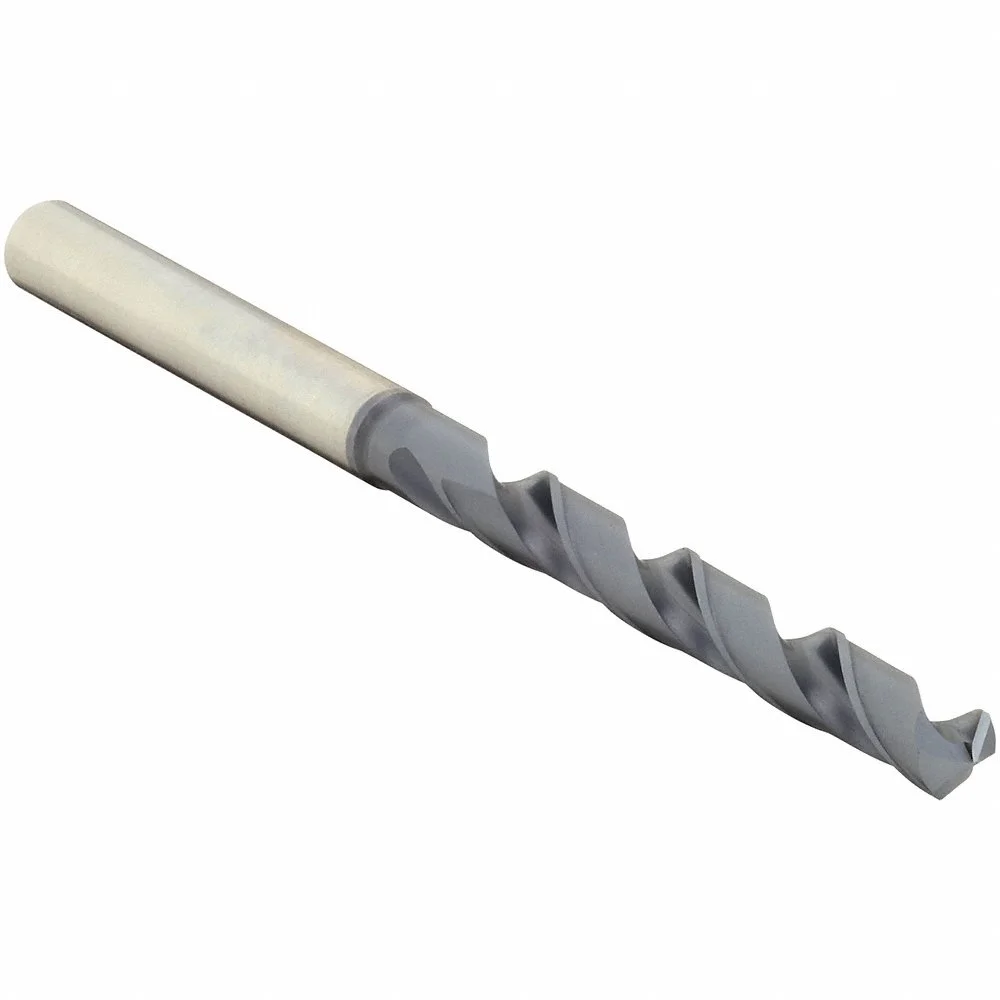

OSG 8612439 Jobber Length Drill Bit, #17 Size
Item: CT6CDNModel: 8612439Cross Ref: 34YR43
7 In Stock
0.172"
0.236"
Ships within 2 days via
10.00% off
€73.30 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Coolant Fed | Non-Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.173 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Wire |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | Powdered Metal |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | #17 |
| Drill Diameter Tolerance | -0.018 mm to 0 mm |
| Drill Length Class | Jobber Length |
| Finish | V Coat |
| Finish - Machining | V |
| Flute Length | 47 mm |
| Flute Type | Spiral |
| Helix Angle | 30° |
| List Number | 1950 |
| Material | Powdered Metal |
| Material - Machining | Powdered Metal |
| Max. Drilling Depth | 47 mm |
| Measurement System | Wire |
| Number Of Flutes | 2 |
| Overall Length | 91 mm |
| Point Angle | 130° |
| Point Type | R Thinning Point |
| Primary Material Application | Cast Iron, Hardened Steel, Nickel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, P, S |
| Secondary Material Application | Aluminum, Hardened Steel, Low Carbon Steel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, M, N, P, S |
| Series | 1950 Series |
| Shank Dia. | 6 mm |
| Shank Length | 44 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | #17 |
| Standards | Not Rated |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Decimal Equivalent | Flute Type | Overall Length | Max. Drilling Depth | Flute Length | Shank Dia. | Drill Bit Size | Drill Bit Point Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 8612579 | 0.228 | Spiral | 101 mm | 57 mm | 57 mm | 6 mm | #1 | 130° | €116.00 | |
| 8612485 | 0.191 | Spiral | 96 mm | 52 mm | 52 mm | 6 mm | #11 | 130° | €79.60 | |
| 8612480 | 0.189 | Spiral | 96 mm | 52 mm | 52 mm | 6 mm | - | - | €56.66 | |

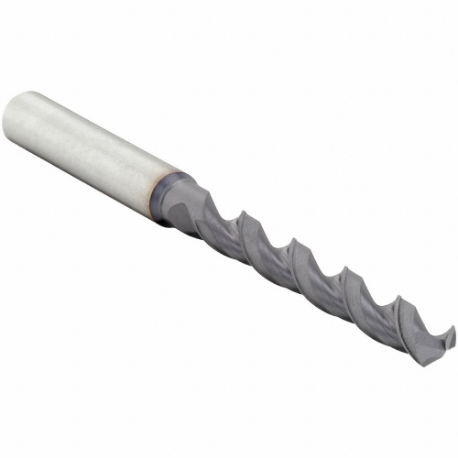

| 8593048 | 0.189 | Fast Spiral | 96 mm | 52 mm | 52 mm | 6 mm | #12 | 120° | €77.39 | |
| 8593047 | 0.185 | Fast Spiral | 91 mm | 47 mm | 47 mm | 6 mm | #13 | 120° | €77.39 | |
| 8612470 | 0.185 | Spiral | 91 mm | 47 mm | 47 mm | 6 mm | #13 | 130° | €56.66 | |
| 8612462 | 0.182 | Spiral | 91 mm | 47 mm | 47 mm | 6 mm | #14 | 130° | €91.55 |
