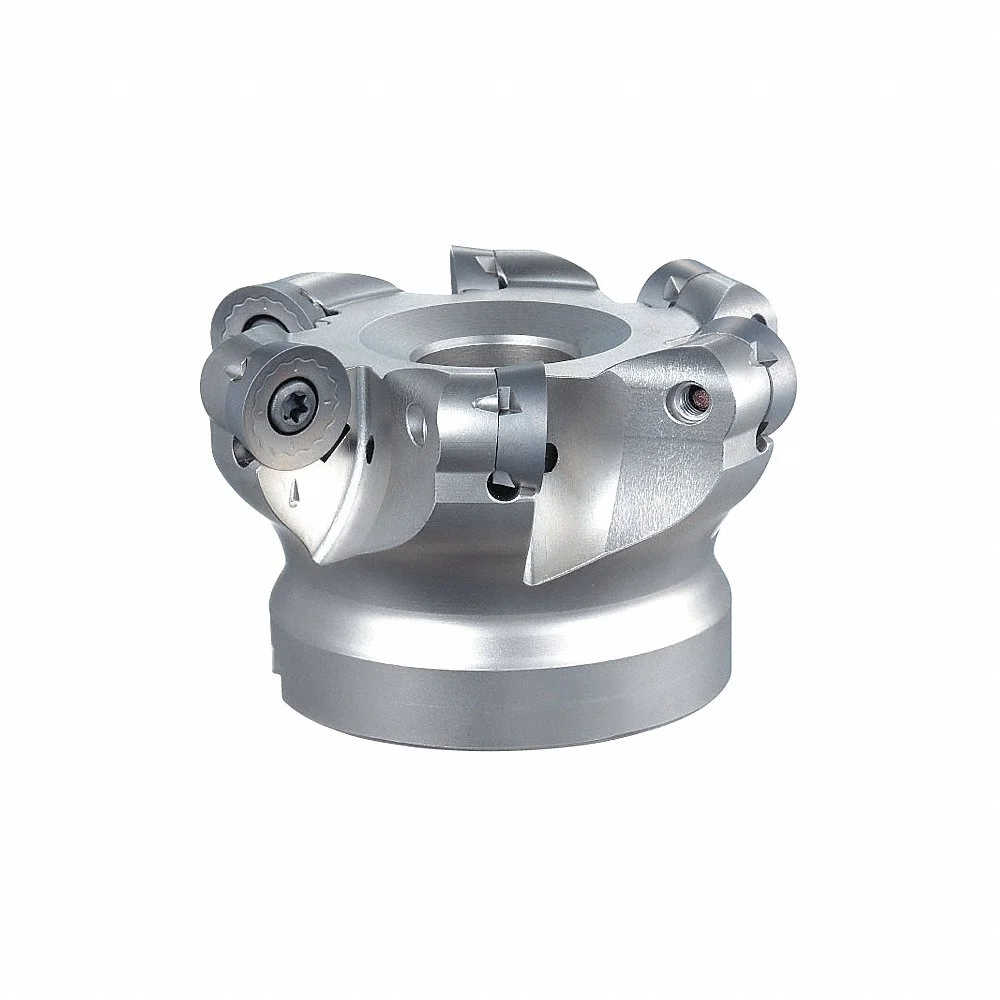

OSG 7800407 Indexable Profiling End Mill, 4 Inch Max. Cutting Dia, 0.0930 Inch Depth
Item: CT4ZMHModel: 7800407Cross Ref: 60ET17
7 In Stock
Ships within 2 days via
10.00% off
€1,170.03 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | End Mill |
| Ansi Code | PRC12R400A150-10 |
| Compatible Hardware | 7808112, 7808208 |
| Coolant Fed | Coolant Through |
| Cutting Application | Rough Milling |
| Cutting Depth | 0.093" |
| Cutting Direction | Right Hand |
| Features | End Mill And Face Mill Styles, Inch And Metric, Insert Rotation Notch, Large Body Relief, Secure Insert Clamping With Screws And Wide Chip Pockets |
| Head Dia. | 4" |
| Head Projection Length | Not Applicable |
| Insert Holding Type | Clamping Screw |
| Insert Shape | Round |
| Insert Size | 12 mm |
| Max. Cutting Dia. | 4" |
| Max. Speed | 1970 RPM |
| Mfr. Series | CV40 |
| Min. Cutting Dia. | 3.528" |
| Number Of Coolant Holes | 10 |
| Number Of Inserts | 10 |
| Overall Length | 1.968" |
| Shank Type | Straight |
| Side Cutting Edge Angle | 11° |
Shipping Info:
| Ship weight (kg) | 1.21 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Overall Length | Insert Shape | Coolant Fed | Max. Cutting Dia. | Insert Size | Side Cutting Edge Angle | Depth Of Cut | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 52200024 | 3 1/4" | Triangle | Non Coolant Through | 1/4" | - | - | - | 3/25" | €415.15 | |
| 52200025 | 3 3/4" | Triangle | Non Coolant Through | 1/4" | - | - | - | 3/25" | €415.15 | |
| 52200033 | 4" | Round | Non Coolant Through | 1/4" | - | - | - | 0.093" | €692.59 | |
| 52200034 | 4 1/2" | Round | Non Coolant Through | 1/4" | - | - | - | 1/8" | €694.62 | |
| 52200018 | 5 1/2" | Triangle | Non Coolant Through | 3/8" | - | - | - | 3/25" | €723.48 | |
| 52200026 | 4" | Triangle | Non Coolant Through | 3/8" | - | - | - | 3/25" | €460.62 | |
| 52200000 | 5 1/2" | - | Non Coolant Through | 3/8" | - | - | - | 1.998" | €460.62 |
