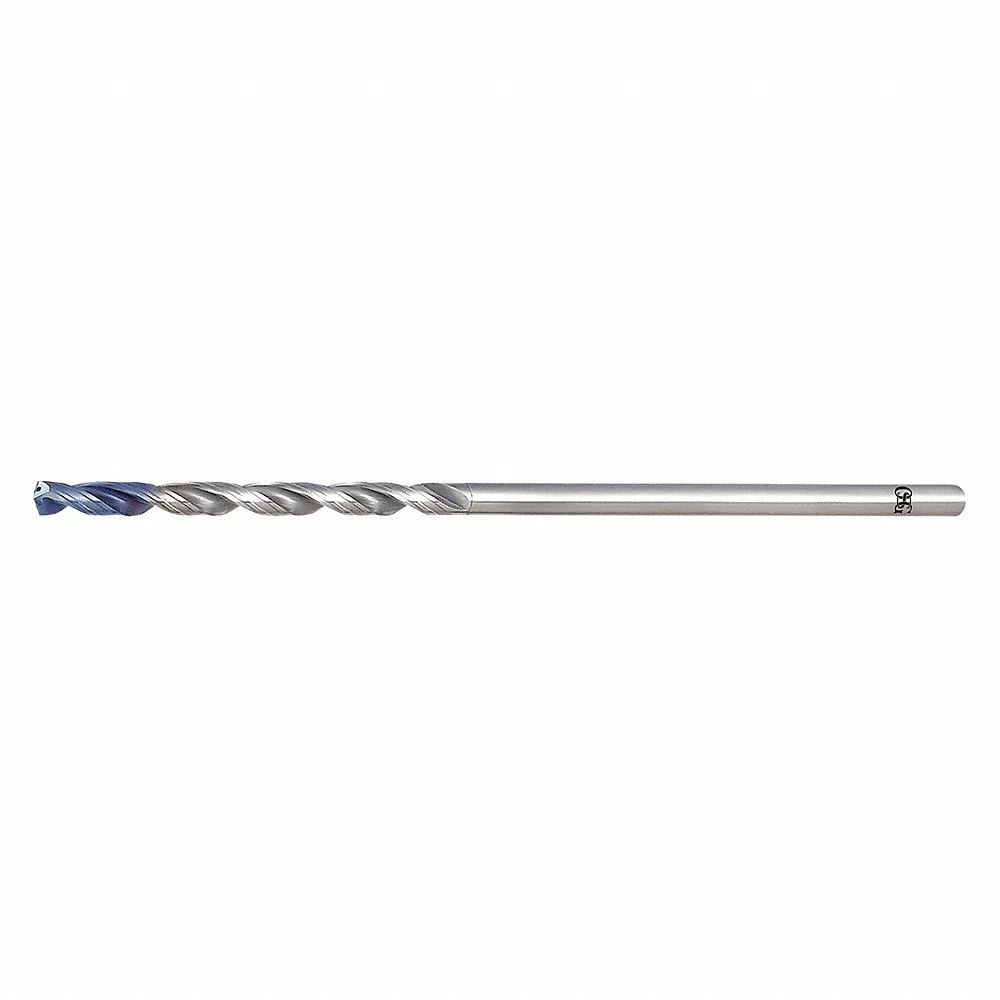

OSG 653517212 Extra Long Drill Bit, 11/64 Inch Size, 4.80 mm Shank Dia, 140 mm Overall Length
Item: CT6ACKModel: 653517212Cross Ref: 54LA81
7 In Stock
0.171"
0.1875"
Ships within 2 days via
10.00% off
€381.44 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Extra Long Drill Bit |
| Application | For Deeper Hole Drilling And High Penetration Rates In Cast Aluminum, Cast Iron, Carbon Steel, Alloy Die Steel, Stainless Steel And High Heat Alloys |
| Coolant Fed | Coolant Through |
| Coolant Through | Yes |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.1719 |
| Depth X Dia. Ratio | 15xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 11/64" |
| Drill Diameter Tolerance | -0.02 mm to -0.038 mm |
| Drill Length Class | Extra Long |
| Finish | WD1 |
| Finish - Machining | WD1 |
| Flute Length | 85 mm |
| Flute Type | Spiral |
| Grade | High Performance |
| List Number | 6535 |
| Material | Solid Carbide |
| Material - Machining | Carbide |
| Material Grade - Machining | HIGH PERFORMANCE |
| Max. Drilling Depth | 85 mm |
| Measurement System | Fractional Inch |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 140 mm |
| Primary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, M, P |
| Secondary Material Application | Aluminum, Hardened Steel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, M, N, S |
| Shank Dia. | 4.8 mm |
| Shank Length | 55 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Standards | Not Rated |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Decimal Equivalent | Drill Bit Size | Max. Drilling Depth | Overall Length | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|
 |
8710480 | 0.189 | #12 | 65 mm | 115 mm | 6 mm | €256.30 | |
 |
8712480 | 0.189 | #12 | 90 mm | 140 mm | 6 mm | €446.58 | |
 |
8714480 | 0.189 | #12 | 115 mm | 165 mm | 6 mm | €670.23 | |
 |
8716480 | 0.189 | #12 | 165 mm | 215 mm | 6 mm | €835.61 | |
|
8710470 | 0.185 | #13 | 65 mm | 115 mm | 6 mm | €256.30 | |
 |
8646450 | 0.177 | #16 | 110 mm | 165 mm | 5 mm | €485.10 | |
|
653016012 | 0.161 | #20 | 55 mm | 115 mm | 6 mm | €250.51 |
