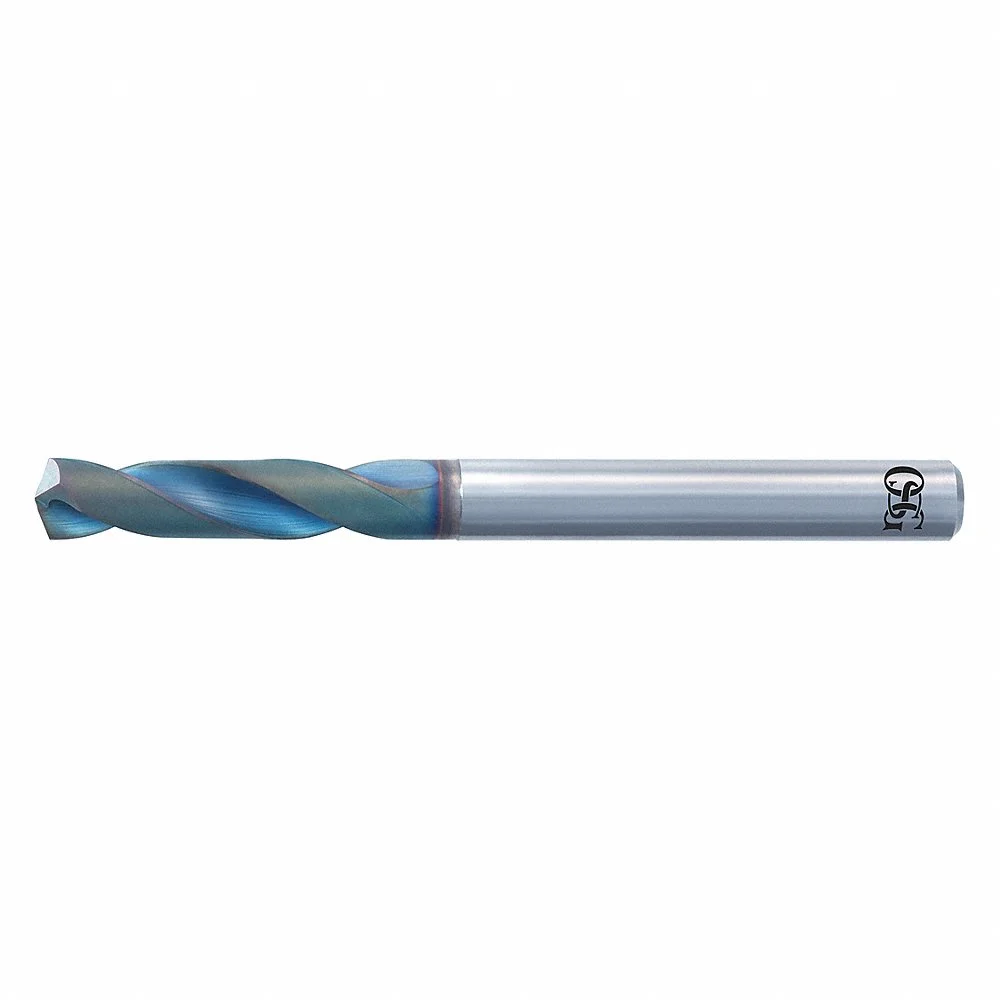

OSG 630024911 Screw Machine Drill Bit, 1/4 Inch Size, 79 mm Overall Length
Item: CT6HPPModel: 630024911Cross Ref: 34XH17
7 In Stock
0.25"
+0 To -0.0009"
Ships within 2 days via
5.00% off
€107.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Screw Machine Drill Bit |
| Coolant Fed | Non Coolant Through |
| Coolant Through | No |
| Coolant Thru | No |
| Cutting Dia. Tolerance | -0.0009" to 0" , H8 |
| Cutting Direction | Right |
| Decimal Equivalent | 0.25 |
| Depth X Dia. Ratio | 2xd |
| Dia. | 1/4" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Point Angle | 140° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 1/4" |
| Drill Dia. Tolerance | -0.022 mm to 0 mm |
| Drill Length Class | Screw Machine Length |
| Drilling L/d Ratio | 2 |
| Finish | WD1 |
| Finish-machining | WD1 |
| Flute Length | 34 mm |
| Flute Type | Spiral |
| Grade | General Purpose |
| Helix Angle | 30° |
| Helix Direction | Right Hand |
| Length Of Cut Specification | Stub |
| List Number | 6300 |
| Material | Solid Carbide |
| Material Grade-machining | General Purpose |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Flutes | 2 |
| Overall Length | 79 mm |
| Point Angle | 140° |
| Point Thinning | R Thinning |
| Primary Material Application | Cast Iron, Stainless Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | K, N, P |
| Secondary Material Application | Alloy Steel, Die Steel, Hardened Steel |
| Secondary Material Application Iso Code | H, P |
| Shank Dia. | 1/2" , 8 mm |
| Shank Length | 45 mm |
| Shank Tolerance | H6 |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Sheeter Drill | No |
| Substrate | Carbide |
| Surface Treatment | EgiAs |
| System Of Measurement | Imperial |
| Web Thinning | R Thinned |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 7.9 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Shank Dia. | Material | Flute Length | Drill Bit Size | Shank Length | Drill Dia. Tolerance | Finish-machining | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
220-2280 | 0.219" | Solid Carbide | 1 3/4" | #1 | 31.7 mm | -0.013 mm to 0 mm | Bright (Uncoated) | Right Hand | €48.65 | |
 |
215-2280 | 0.219" | Carbide | 1 5/16" | #1 | 28.6 mm | -0.013 mm to 0 mm | Bright (Uncoated) | Right Hand | €54.59 | |
 |
215-1935 | 3/16" | Carbide | 1 3/16" | #10 | 27 mm | -0.013 mm to 0 mm | Bright (Uncoated) | Right Hand | €45.23 | |
|
220-1935 | 3/16" | Solid Carbide | 1 3/16" | #10 | 28.6 mm | -0.013 mm to 0 mm | Bright (Uncoated) | Right Hand | €43.87 | |
|
215-1910 | 3/16" | Carbide | 1 3/16" | #11 | 27 mm | -0.013 mm to 0 mm | Bright (Uncoated) | Right Hand | €42.86 | |
|
220-1890 | 3/16" | Solid Carbide | 1 5/8" | #12 | 28.6 mm | -0.013 mm to 0 mm | Bright (Uncoated) | Right Hand | €43.32 | |
|
215-1890 | 4.8 mm | Carbide | - | #12 | 27 mm | -0.013 mm to 0 mm | Bright (Uncoated) | Right Hand | €43.70 |
