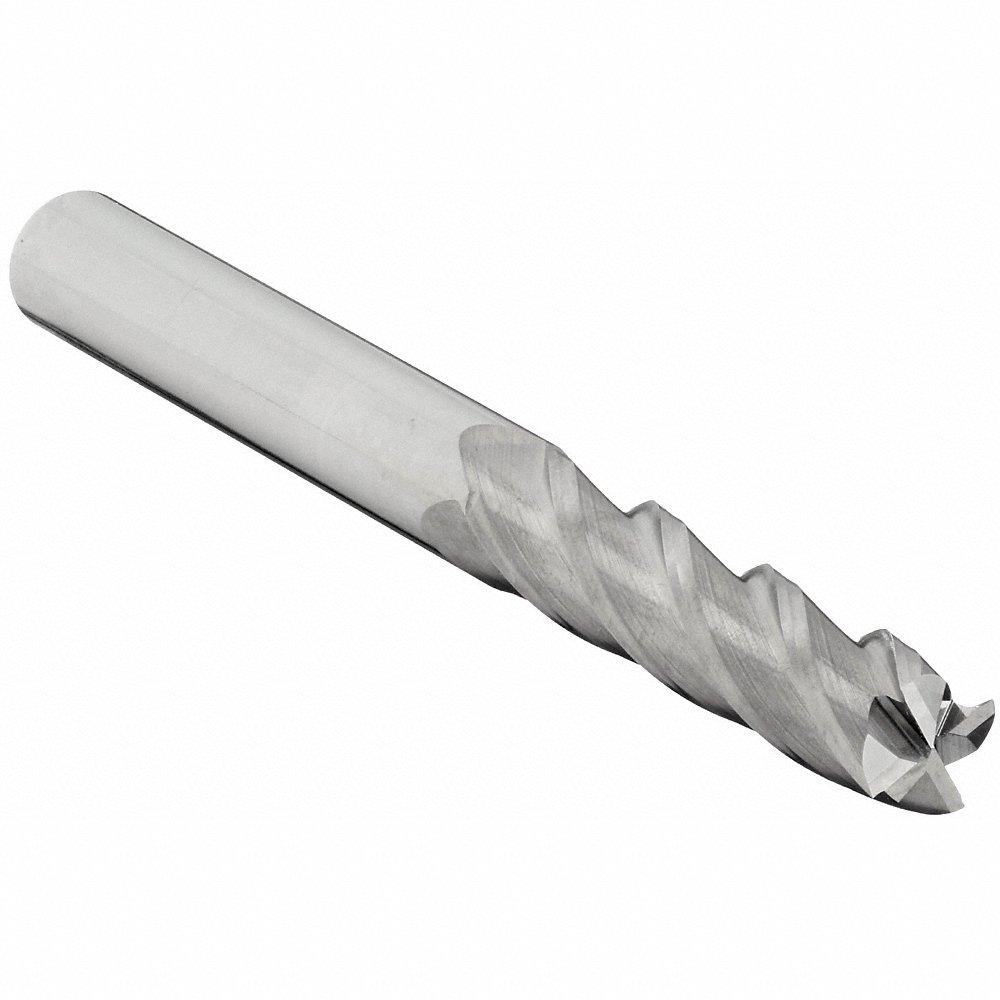

OSG 484-3125 Square End Mill, Center Cutting, 4 Flutes, 5/16 Inch Milling Dia, 1 5/8 Inch Length Of Cut
Item: CT6UPUModel: 484-3125Cross Ref: 2TYD8
7 In Stock
Ships within 2 days via
10.00% off
€75.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 1 5/8" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Grade | General Purpose |
| Hardened Compatibility | Yes |
| Helix Angle | 30° |
| List Number | 484 |
| Material | Carbide |
| Material Grade - Machining | General Purpose |
| Measurement System | Fractional Inch |
| Milling Dia. | 0.312" |
| Milling Diameter | 5/16" |
| Non Ferrous (n) Compatibility | Yes |
| Number Of Flutes | 4 |
| Overall Length | 4" |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 0.312" |
| Shank Diameter | 5/16" |
| Shank Type | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Milling Dia. | Number Of Flutes | Shank Dia. | Overall Length | List Number | Helix Angle | Length Of Cut | Cutting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
402-1000 | 1" | 2 | 1" | 4" | 402 | 30° | - | 1 1/2" | €469.65 | |
 |
402-2500 | 1/4" | 2 | 1/4" | 2 1/2" | 402 | 30° | - | 3/4" | €37.48 | |
 |
402-1250 | 1/8" | 2 | 1/8" | 1 1/2" | 402 | 30° | - | 1/2" | €20.76 | |
|
402-4062 | 13/32" | 2 | 0.438" | 2 3/4" | 402 | 30° | - | 1" | €91.86 | |
|
402-9843 | 25 mm | 2 | 25 mm | 102 mm | 402 | 30° | - | 38 mm | €443.55 | |
|
402-1875 | 0.188" | 2 | 0.188" | 2" | 402 | 30° | - | 5/8" | €29.99 | |
|
402-7500 | 3/4" | 2 | 3/4" | 4" | 402 | 30° | - | 1 1/2" | €243.33 |
