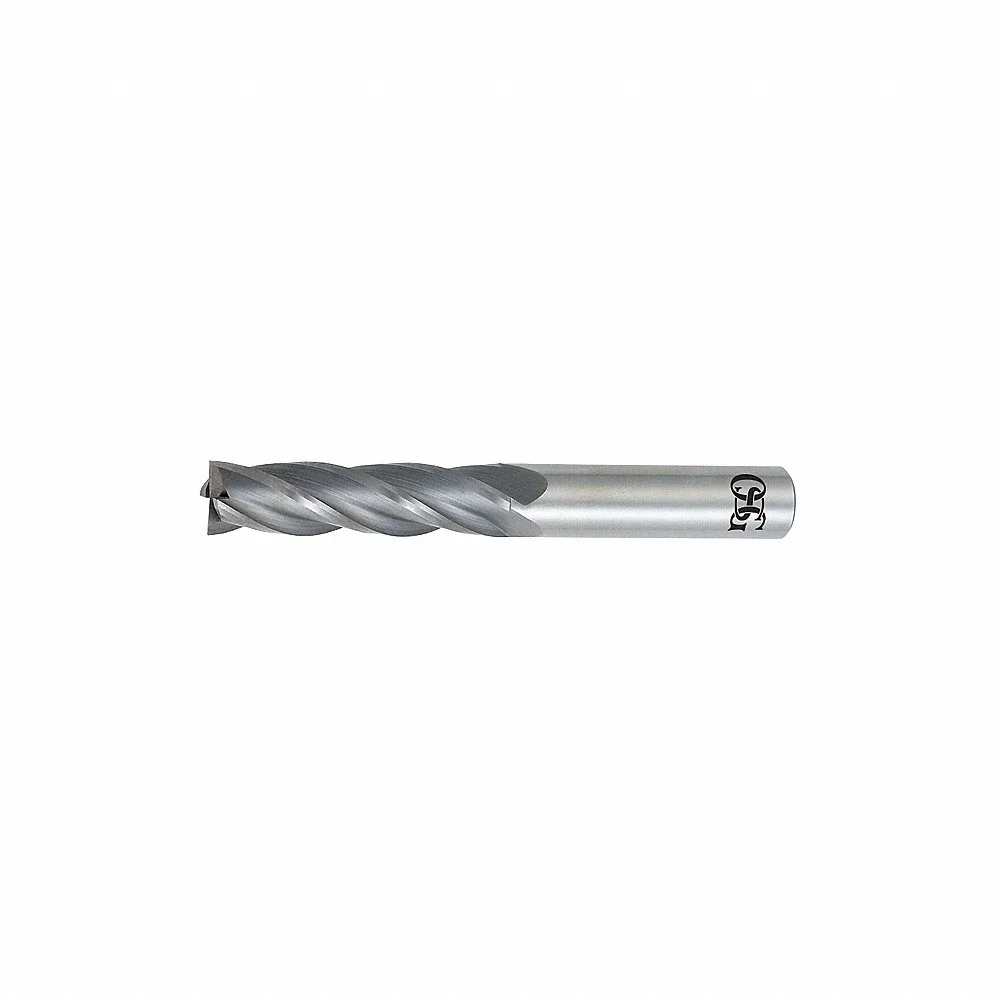

OSG 464-6299 Square End Mill, Center Cutting, 4 Flutes, 16 mm Milling Dia, 57 mm Length Of Cut
Item: CT6UHWModel: 464-6299Cross Ref: 35CT21
7 In Stock
0.62"
Ships within 2 days via
10.00% off
€256.80 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 57 mm |
| Cutting Type | Center Cutting |
| Dimension Type | Metric |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | 464 |
| Material | Carbide |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 16 mm |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 4 |
| Overall Length | 127 mm |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 16 mm |
| Shank Type | Straight |
| Single End/double End | Single End |
| Stainless (m) Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.27 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Shank Dia. | Helix Angle | Overall Length | Milling Dia. | List Number | Cutting Direction | Number Of Flutes | Length Of Cut | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
408-7500 | 3/4" | 15° | 4" | 3/4" | - | - | 10 | - | €243.57 | |
|
408-6250 | 5/8" | 15° | 3 1/2" | 5/8" | 408 | Right | 10 | - | €166.32 | |
 |
403-687511 | 3/4" | 30° | 4" | 0.688" | 403 | Right | - | - | €294.26 | |
 |
445-6875 | 3/4" | 45° | 4" | 0.688" | 445 | Right | 3 | - | €211.45 | |
 |
454-6875 | 3/4" | 30° | 4" | 0.688" | 454 | Right | 4 | - | €310.66 | |
|
408-6875 | 3/4" | 15° | 4" | 0.688" | 408 | Right | 10 | - | €196.41 | |
|
403-6875 | 3/4" | 30° | 4" | 0.688" | 403 | Right | 3 | - | €249.44 |
