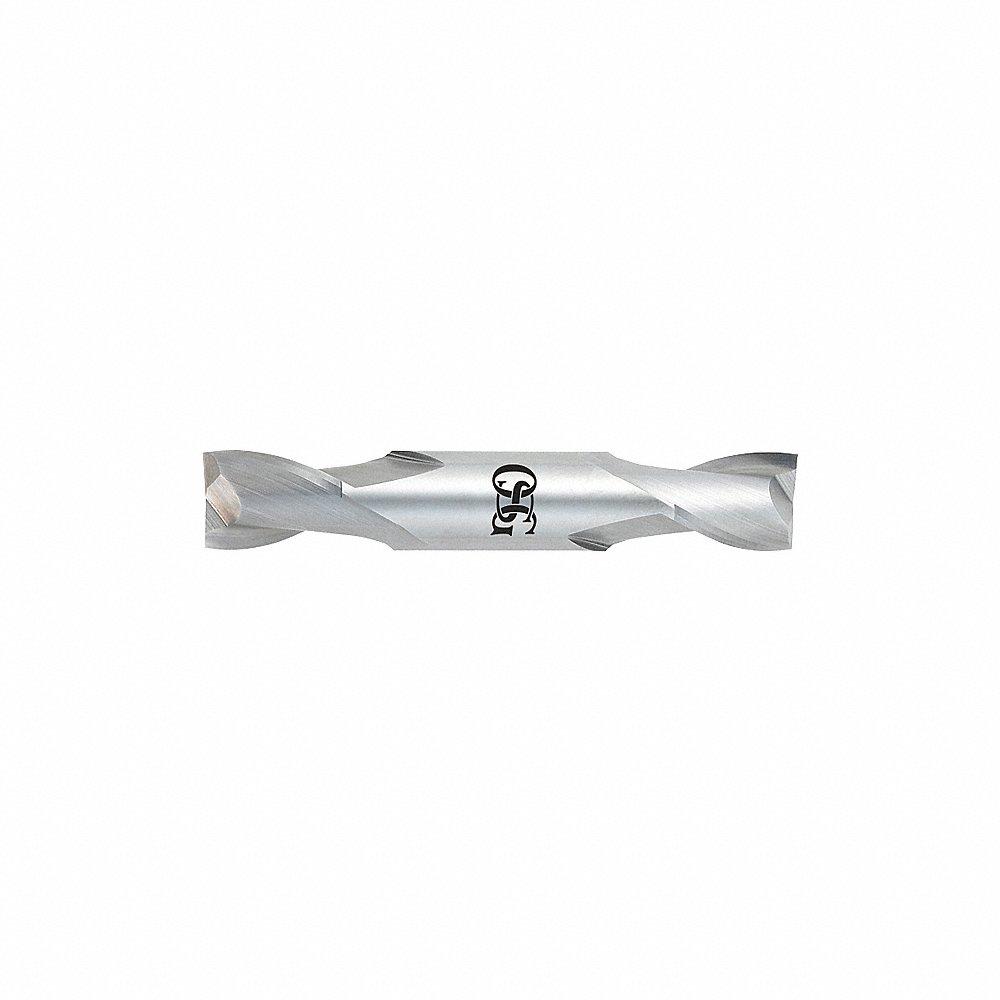

OSG 422-1094 Square End Mill, Carbide, Double End, 7/64 Inch Milling Dia., 2 Flutes
Item: CT6RRRModel: 422-1094Cross Ref: 35CZ10
7 In Stock
Ships within 2 days via
5.00% off
€23.04 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | Yes |
| Cutting Direction | Right Hand |
| Cutting Direction-machining | Right Hand |
| Cutting Length | 0.219" |
| Cutting Type | Center Cutting |
| Dimensions Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Cutting Type | Center Cutting |
| End Mill Style | Square |
| End Type | Double End |
| Finish | Bright Uncoated |
| Finish-machining | Bright (Uncoated) |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| Length Of Cut | 7/32" |
| List Number | 422 |
| Material | Carbide |
| Material Grade-machining | General Purpose |
| Material-machining | Carbide |
| Milling Dia. | 7/64" |
| No. Of Flutes | 2 |
| Non Ferrous (n) Compatibility | No |
| Overall Length | 1 1/2" |
| Primary Material Application | Aluminum, Cast Iron, Hardened Steel, Steel, Tool And Die Steel |
| Primary Material Application Iso Code | H, K, N, P |
| Shank Dia. | 1/8" |
| Shank Type | End Mill , Straight |
| Shank Type-machining | Straight |
| Single End/double End | Double End |
| Stainless Compatibility | Yes |
| Steel (p) Compatibility | Yes |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 1.27 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Milling Dia. | Shank Dia. | Primary Material Application Iso Code | Material Grade-machining | Cutting Length | Grade | Finish-machining | Helix Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
422-062511 | 1/16" | 1/8" | H, K, N, P | Grade C2 Micro Grain | 1/8" | Micro Grain Carbide | TiAlN | 30° | €35.20 | |
 |
424-062511 | 1/16" | 1/8" | H, K, N, P | General Purpose | 1/8" | General Purpose | TiAlN | 30° | €33.62 | |
 |
422-0625 | 1/16" | 1/8" | H, K, N, P | General Purpose | 1/8" | General Purpose | Bright (Uncoated) | 30° | €27.81 | |
 |
424-0625 | 1/16" | 1/8" | H, K, N, P | General Purpose | 1/8" | General Purpose | Bright (Uncoated) | 30° | €27.26 | |
|
422-0312 | 1/32" | 1/8" | H, K, N, P | General Purpose | 0.078" | General Purpose | Bright (Uncoated) | 30° | - | RFQ
|
|
424-0312 | 1/32" | 1/8" | H, K, N, P | General Purpose | 0.078" | General Purpose | Bright (Uncoated) | 30° | €40.77 | |
|
424-031211 | 1/32" | 1/8" | H, K, N, P | General Purpose | 0.078" | General Purpose | TiAlN | 30° | €53.08 |
