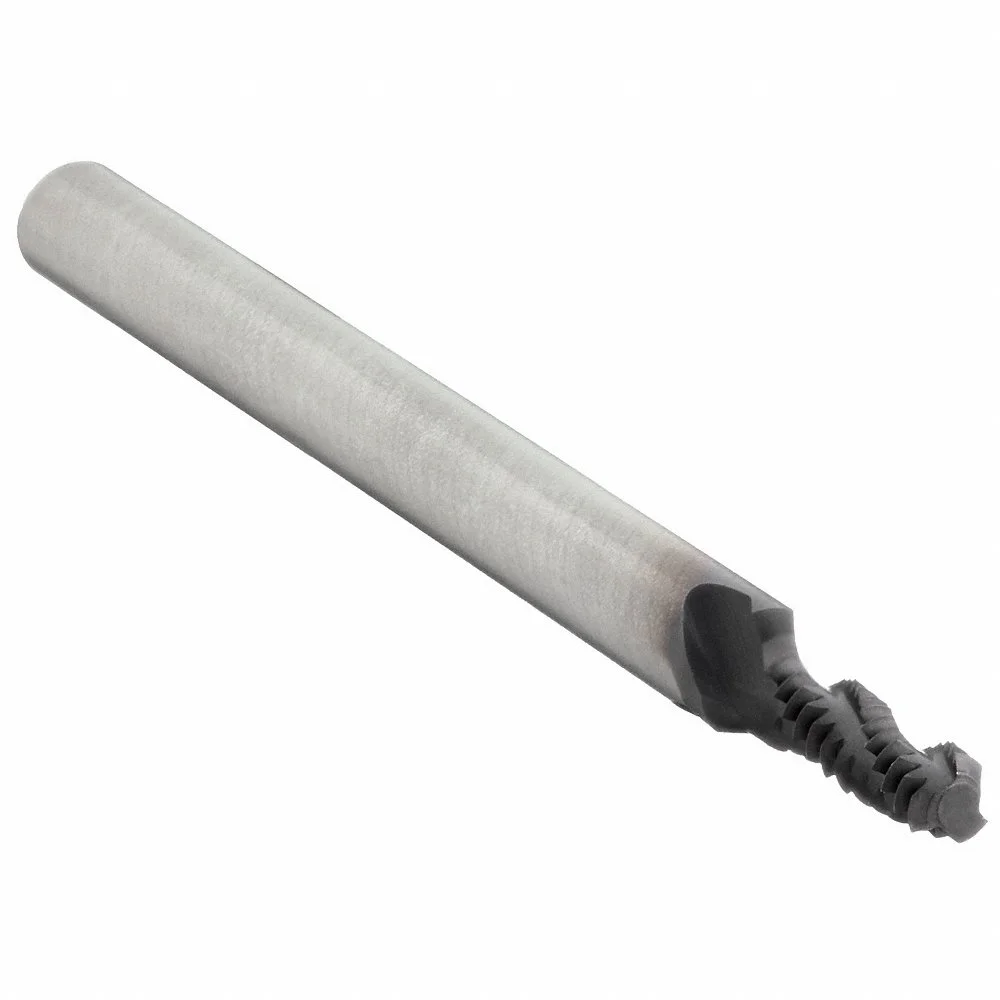

OSG 4100000411 Thread Mill, Carbide, EXO, 3 Flute, #10-24 Thread Size, 0.1300 Inch Size Cutter Dia
Item: CT7AZBModel: 4100000411Cross Ref: 2TNT2
7 In Stock
Ships within 2 days via
10.00% off
€343.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Mill |
| Application | For Milling Threads In Cast Iron, Exotics And Difficult To Machine Materials |
| Cutter Diameter | 0.13" |
| Cutting Dia. | 0.13" |
| Cutting Length | 0.374" |
| Drilling Tool Configuration | Individual |
| End Mill Material | Carbide |
| Finish | Exo |
| Flute Type | Helical |
| Flutes | 3 |
| List Number | 41000 |
| Material | Carbide |
| Material Application | Cast Iron, Composite, Steel |
| Material Applications | Cast Iron, Composite, Steel |
| Measurement System | Fractional Inch |
| Neck Length | 0.437" |
| Nomenclature | 41000 |
| Number Of Flutes | 3 |
| Overall Length | 2 1/2" |
| Primary Material Application | Aluminum, Cast Iron, Steel |
| Shank Dia. | 3/16" |
| Shank Length | 2.126" |
| Size | #10 |
| System Of Measurement | Imperial |
| Teeth Per Inch | 24 |
| Thread Length | 0.411" |
| Thread Size | #10-24 |
| Thread Standard | Coarse |
| Thread Type | Inch |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Number Of Flutes | Overall Length | Shank Dia. | Primary Material Application | List Number | Thread Size | Finish | Cutting Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3900499 | 3 | 40 mm | 3 mm | All Materials | 41300 | M1.7 x M1.8 x 0.35 | Stainless Steel | 0.36 mm | €251.98 | |
| 4100000811 | 3 | 3" | 1/4" | Aluminum, Cast Iron, Steel | 41000 | - | Exo | 0.402" | €387.22 | |
| 4100003211 | 3 | 3" | 1/4" | Aluminum, Cast Iron, Steel | 41000 | 1/4"-20 | Exo | 0.551" | €458.14 | |
| 4100003311 | 3 | 3" | 1/4" | Aluminum, Cast Iron, Steel | 41000 | 1/4"-28 | Exo | 0.535" | €458.14 | |
| 4100000911 | 3 | 3" | 1/4" | Aluminum, Cast Iron, Steel | 41000 | 1/4"-28 | Exo | 0.394" | €381.75 | |
| 4100003611 | 3 | 3" | 5/16" | Aluminum, Cast Iron, Steel | 41000 | 3/8"-16 | Exo | 0.874" | €488.57 | |
| 4100001311 | 3 | 3" | 5/16" | Aluminum, Cast Iron, Steel | 41000 | 3/8"-24 | Exo | 0.583" | €409.01 |
