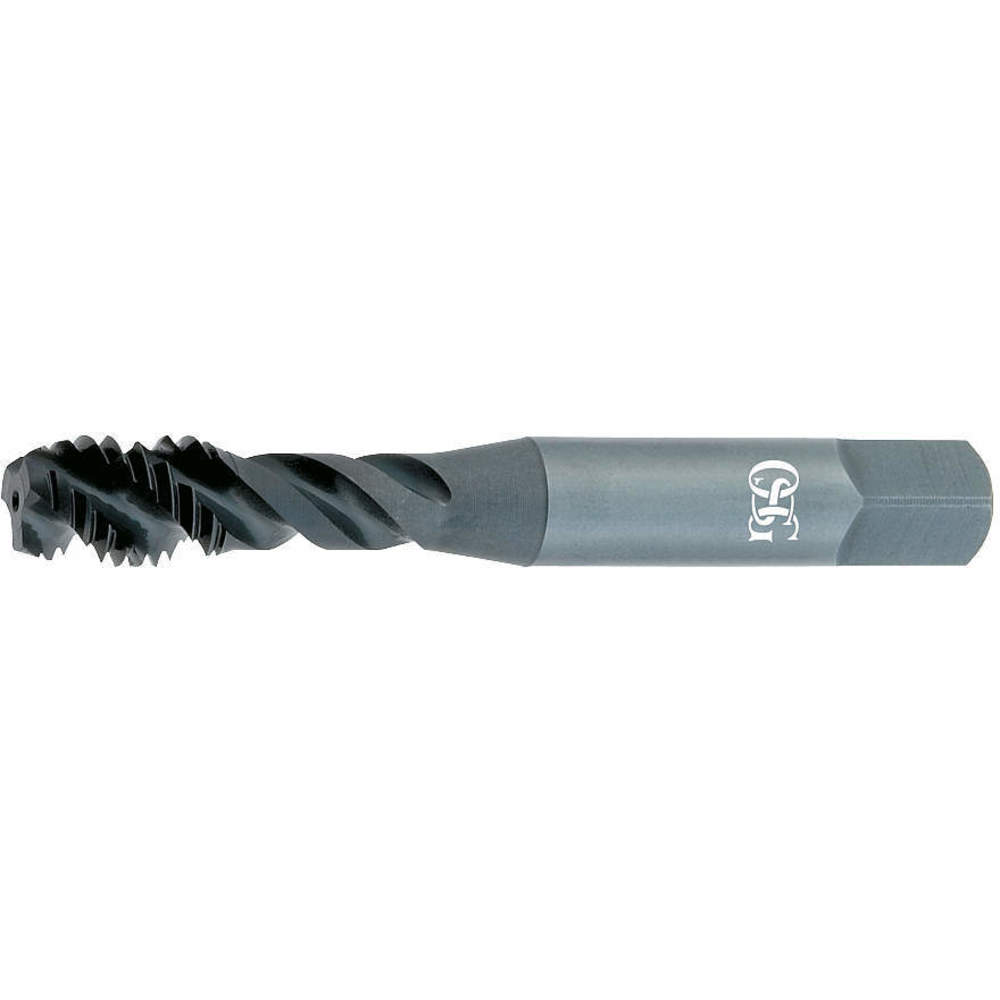

OSG 2907208 Spiral Flute Tap, #6-40 Thread Size, 3/16 Inch Thread Lg, TiCN, H2, Modified Bottoming
Item: AG3NUPModel: 2907208Cross Ref: 33PD91
7 In Stock
Ships within 2 days via
€38.48 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #31 |
| 65% Thread Drill Size | #32 |
| 75% Thread Drill Size | #36 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.1120", 0.1136", 0.1153", 0.1169", 0.1185" |
| Extended Neck | Yes |
| Features | Increased Wear Resistance |
| Finish | TiCN Coating |
| Helix Angle | 45° |
| List Number | 290 |
| Material | High Speed Steel |
| Material Grade-machining | Vanadium High Speed Steel |
| Measurement System | Pipe |
| No. Of Flutes | 3 |
| Overall Length | 2" |
| Pitch Dia. Limits | H2 |
| Pitch Type | 40 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 9/64" |
| Shank Length | 1 5/16" |
| Shank Type-machining | Straight |
| Size | #6 |
| Square Size | 0.109" |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | TiCN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | #6-40 |
| Tap Type | Modified Bottom |
| Thread Direction | Right Hand |
| Thread Length | 3/16" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2 |
| Thread Size | #6-40 |
| Thread Standard | Unf |
| Thread Type | Fine |
| Threads Per Inch | 40 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 0.76 |
| HS code | 8207406000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Thread Size | Overall Length | 75% Thread Drill Size | Thread Limit | Tap Chamfer | Shank Dia. | Thread Standard | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
0139608 | 3/4"-10 | 4 1/4" | 16.5 | H3 | Bottoming | 37/64" | UNC | High Speed Steel | €175.25 | |
 |
1305800408 | #10-32 | 2 11/32" | #21 | 2B | Modified Bottoming | 3/16" | Unf | High Speed Steel | €35.27 | |
 |
1315900308 | M5 X 0.8 | 60 mm | 4.2 mm | - | Plug | 4.92 mm | Metric Coarse | High Speed Steel | €28.39 | |
 |
1756608 | M10 x 1.5 | 74 mm | 8.5 | D6 | Modified Bottoming | 9.67 mm | Metric Coarse | High Speed Steel | €76.55 | |
 |
2857408 | 1/2"-13 | 3 11/32" | 0.4219" | H11 | Plug | 11/64" | UNC | HSS E | €52.48 | |
 |
2893108 | M3 x 0.5 | 49 mm | 2.5 mm | D11 | Plug | 3.58 mm | Metric Coarse | HSS E | €36.78 | |
|
2893508 | M4 x 0.7 | 54 mm | 3.3 mm | D11 | Plug | 4.26 mm | Metric Coarse | HSS E | €37.01 |
