OSG 2893108 Spiral Point Tap, M3x0.5 Thread Size, 6 mm Thread Lg, TiCN, D11 / JIS 2, Plug
Item: AG3NUGModel: 2893108Cross Ref: 33PD84
7 In Stock
Ships within 2 days via
5.00% off
€49.92 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | #37 |
| 65% Thread Drill Size | #38 |
| 75% Thread Drill Size | 2.5 mm |
| Class Of Fit | Class JIS 2 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 2.48 mm, 2.51 mm, 2.55 mm, 2.58 mm, 2.61 mm |
| Extended Neck | Yes |
| Finish | TiCN Coated |
| List Number | 289 |
| Material | High Speed Steel |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 49 mm |
| Pitch Diameter Limits | D11 |
| Pitch Type | 0.5 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Nickel, Stainless Steel, Steel, Titanium |
| Secondary Material Application Iso Code | K, M, P, S3 |
| Shank Dia. | 3.58 mm |
| Shank Length | 33 mm |
| Shank Type - Machining | Straight |
| Size | M3 |
| Spiral Direction | Neutral |
| Square Size | 2.79 mm |
| Tap Chamfer | Plug |
| Tap Finish | TiCN |
| Tap Material | HSS E |
| Tap Thread Size | M3 x 0.5 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 6 mm |
| Thread Limit | D11 |
| Thread Limit / Class Of Fit | D11, JIS 2 |
| Thread Pitch | 0.5 mm |
| Thread Size | M3 x 0.5 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 0.76 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 0.76 |
| HS code | 8207406000 |
| Country of Origin | MX |
Product Variants
| Product | Model | Thread Size | Overall Length | 75% Thread Drill Size | Number Of Flutes | Thread Limit | Tap Chamfer | Shank Dia. | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

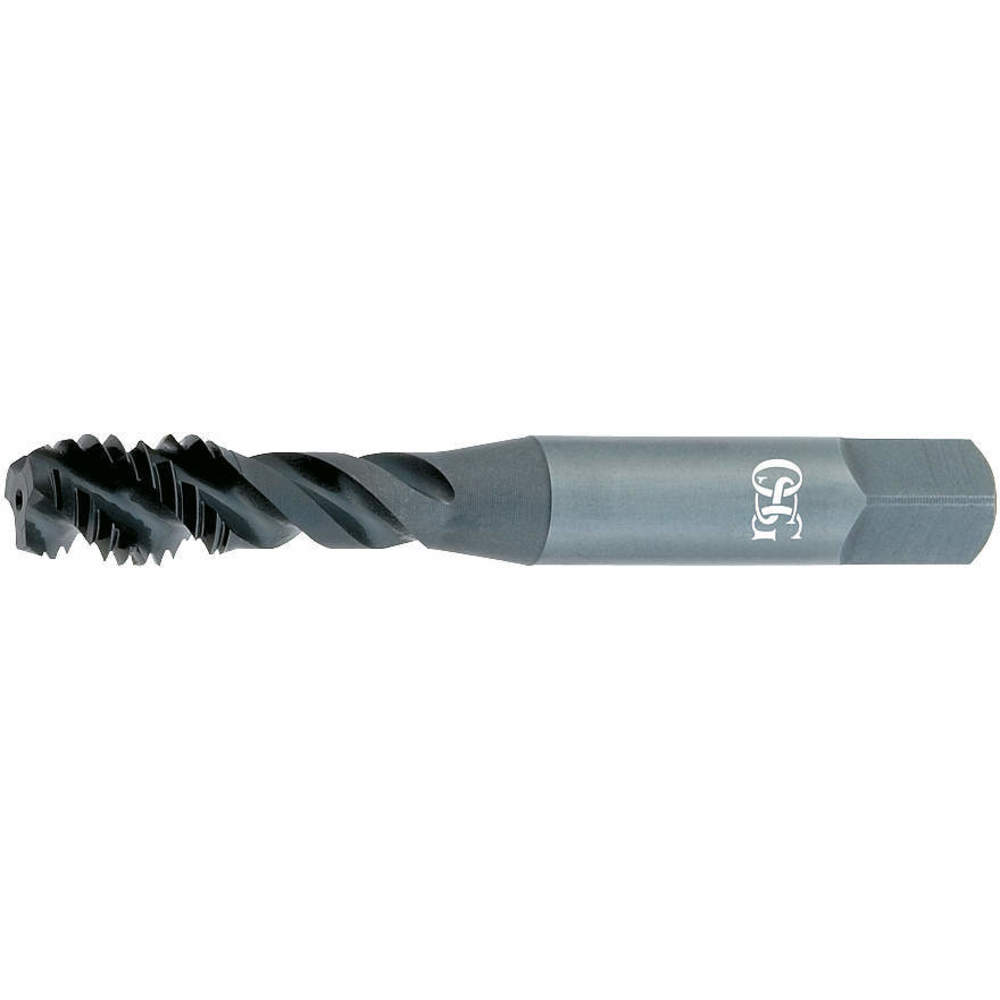

0139608 | 3/4"-10 | 4 1/4" | 16.5 | 4 | H3 | Bottoming | 37/64" | UNC | €250.36 | |
 |
1305800408 | #10-32 | 2 11/32" | #21 | 3 | 2B | Modified Bottoming | 3/16" | Unf | €50.39 | |
 |

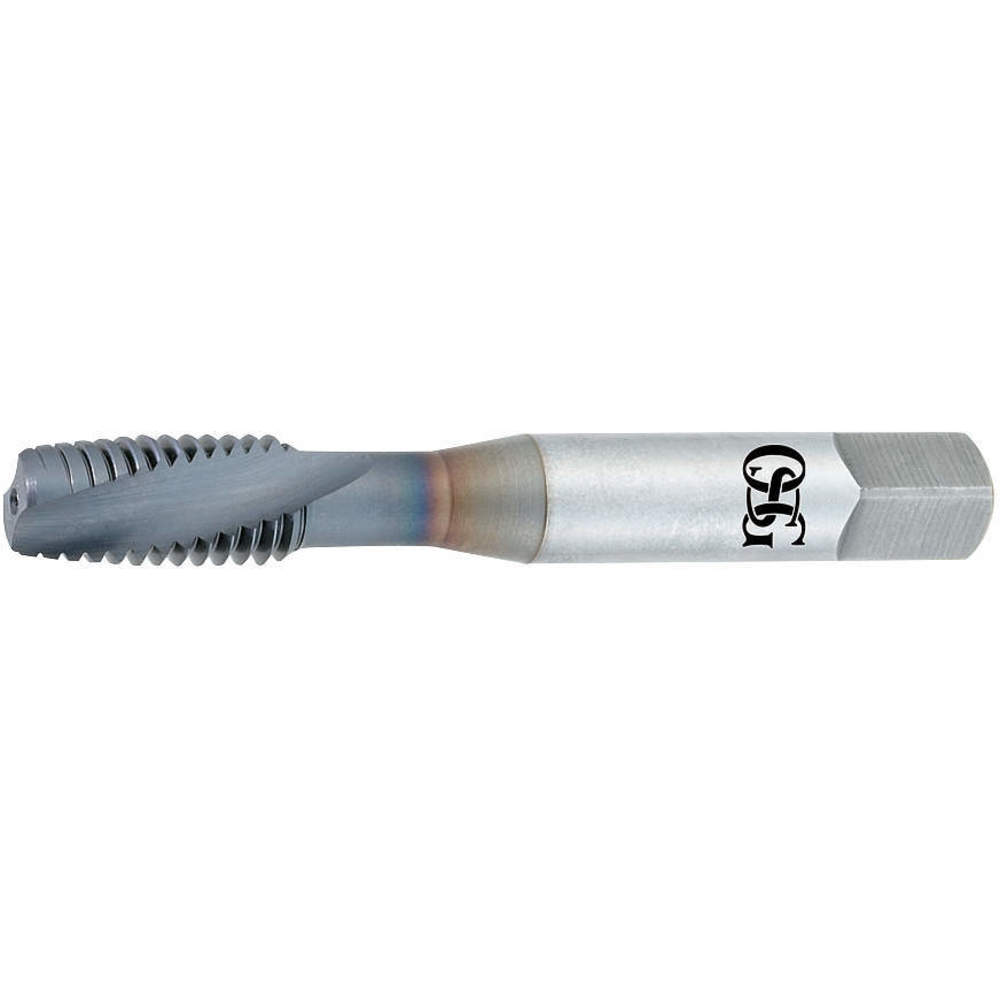

1315900308 | M5 X 0.8 | 60 mm | 4.2 mm | 3 | - | Plug | 4.92 mm | Metric Coarse | €40.56 | |
 |

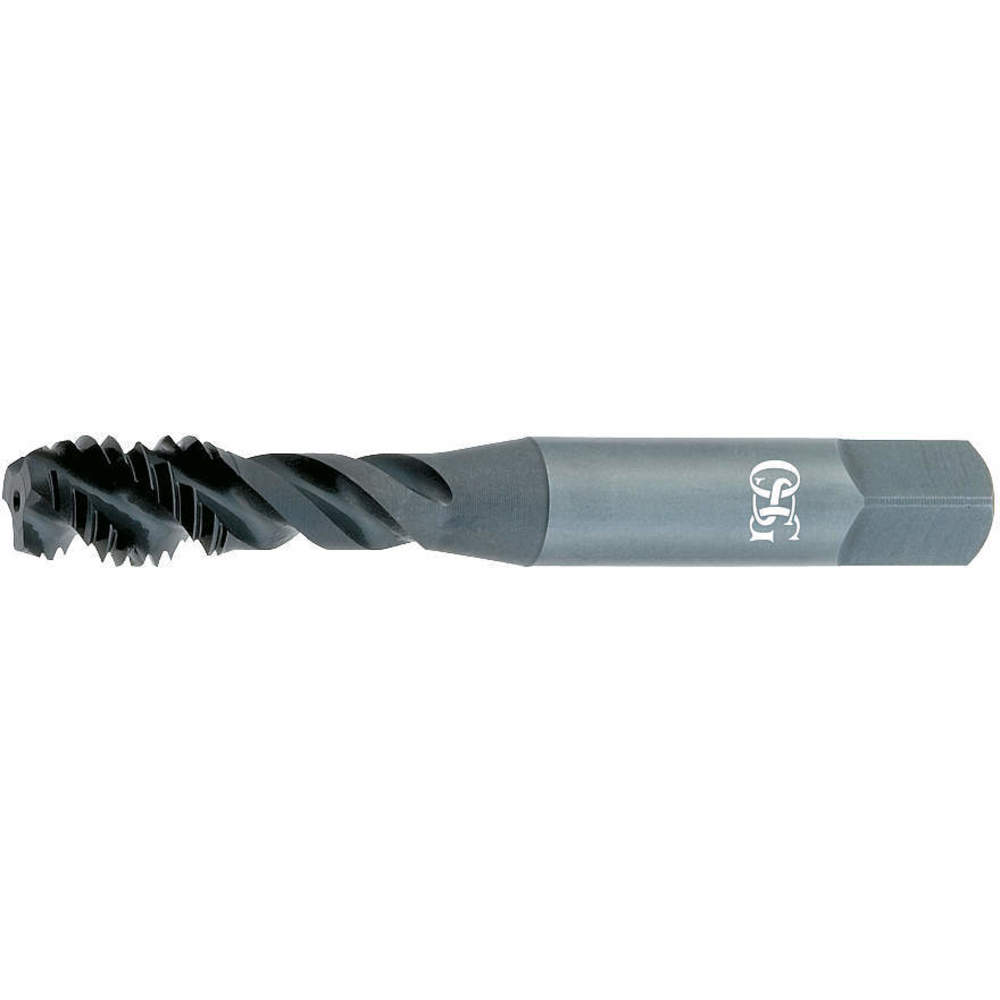

1756608 | M10 x 1.5 | 74 mm | 8.5 | 3 | D6 | Modified Bottoming | 9.67 mm | Metric Coarse | €109.36 | |
 |

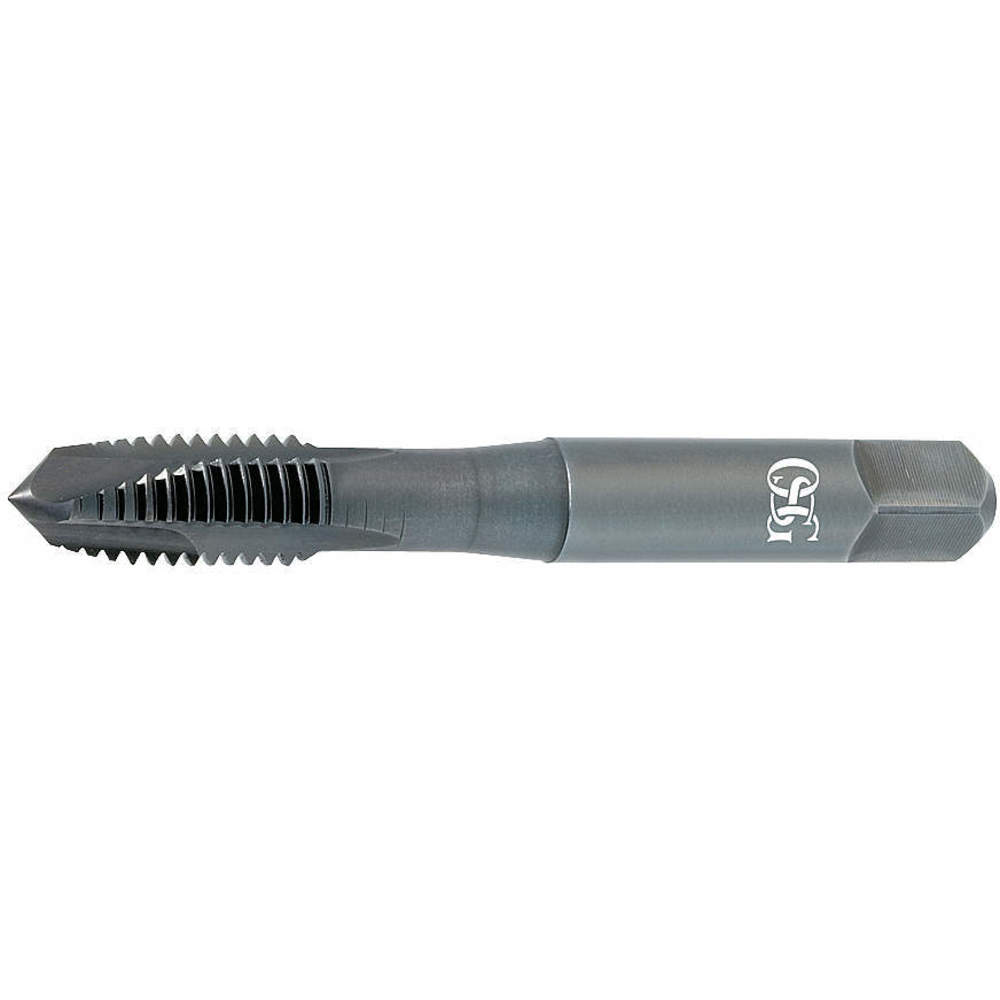

2857408 | 1/2"-13 | 3 11/32" | 0.4219" | 3 | H11 | Plug | 11/64" | UNC | €74.97 | |
|
2893508 | M4 x 0.7 | 54 mm | 3.3 mm | 3 | D11 | Plug | 4.26 mm | Metric Coarse | €52.87 | |
|
2893908 | M6 x 1 | 63 mm | 5 mm | 3 | D11 | Plug | 6.47 mm | Metric Coarse | €58.02 |
