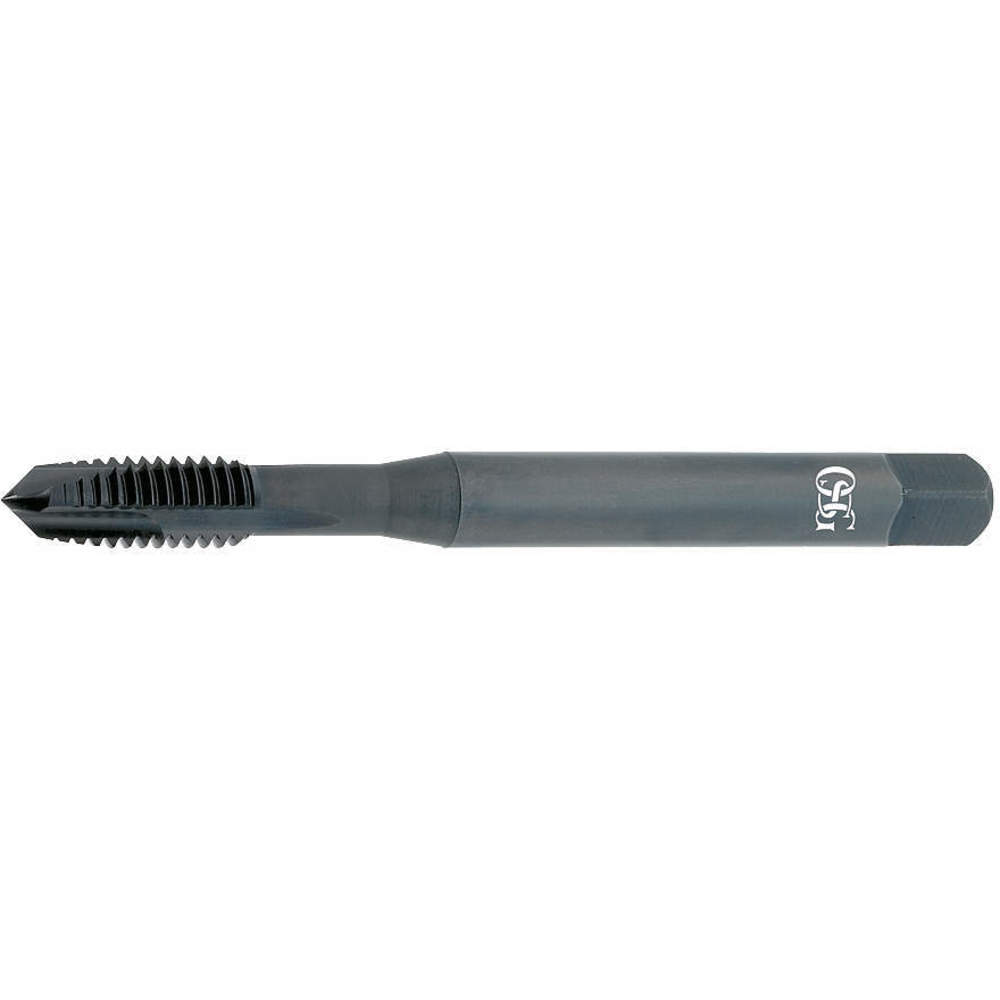

OSG 2592201 Spiral Point Tap Plug 12x1.50mm S/o
Item: AG4CAPModel: 2592201Cross Ref: 33XW11
7 In Stock
Ships within 2 days via
10.00% off
€78.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | 10.9 mm |
| 65% Thread Drill Size | 27/64" |
| 75% Thread Drill Size | 10.5 mm |
| Class Of Fit | Class 6H |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 10.44 mm, 10.54 mm, 10.64 mm, 10.73 mm, 10.83 mm |
| Extended Neck | Yes |
| Finish | Black Oxide |
| List Number | 259 |
| Material | High Speed Steel |
| Measurement System | Metric |
| Number Of Flutes | 3 |
| Overall Length | 100 mm |
| Pitch Diameter Limits | 6H |
| Pitch Type | 1.5 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Cast Iron, Hardened Steel, Stainless Steel, Steel |
| Secondary Material Application Iso Code | H, K, M, P |
| Shank Dia. | 9.32 mm |
| Shank Length | 68 mm |
| Shank Type - Machining | Straight |
| Size | M12 |
| Spiral Direction | Neutral |
| Square Size | 6.98 mm |
| Tap Chamfer | Plug |
| Tap Finish | Black Oxide |
| Tap Length Standard | DIN |
| Tap Material | HSS E |
| Tap Shank Standard | ANSI |
| Tap Thread Size | M12 x 1.5 |
| Tap Type | Plug |
| Thread Direction | Right Hand |
| Thread Length | 21 mm |
| Thread Limit/class Of Fit | 6H |
| Thread Pitch | 1.5 mm |
| Thread Size | M12 x 1.5 |
| Thread Standard | Metric Fine |
| Thread Type | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| HS code | 8207400000 |
Product Variants
| Model | Number Of Flutes | Overall Length | Thread Length | Thread Size | Tap Finish | 75% Thread Drill Size | Thread Limit | Thread Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1115710001 | 3 | 45 mm | 12 mm | M2.5 x 0.45 | Black Oxide | #46 | D3 | Metric Coarse | €95.30 | |
| 1115710008 | 3 | 45 mm | 12 mm | M2.5 x 0.45 | TiCN | #46 | D3 | Metric Coarse | €113.20 | |
| 1115710108 | 3 | 49 mm | 16 mm | M3 x 0.5 | TiCN | 2.5 mm | D3 | Metric Coarse | €82.75 | |
| 1115710208 | 3 | 54 mm | 19 mm | M4 x 0.7 | TiCN | 3.3 mm | D4 | Metric Coarse | €69.36 | |
| 1115710308 | 3 | 60 mm | 22 mm | M5 X 0.8 | TiCN | 4.2 mm | D4 | Metric Coarse | €71.12 | |
| 1115710408 | 3 | 63 mm | 25 mm | M6 x 1 | TiCN | 5 mm | D5 | Metric Coarse | €90.05 | |
| 1115710508 | 3 | 69 mm | 15 mm | M8 x 1.25 | TiCN | H | D5 | Metric Coarse | €98.63 |
