OSG 22837 Straight Flute Tap Bottom M12 x 1.75 Bright 4 Flutes
Item: AH3ZFBModel: 22837Cross Ref: 33YZ05
7 In Stock
Ships within 2 days via
10.00% off
€474.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap |
| 55% Thread Drill Size | 27/64" |
| 65% Thread Drill Size | 10.5 mm |
| 75% Thread Drill Size | 10.3 mm |
| Coolant Fed | Non Coolant Through |
| Dimension Type | Metric |
| Extended Neck | Yes |
| Finish | Bright |
| List Number | 349 |
| Material | Solid Carbide |
| Measurement System | Metric |
| Number Of Flutes | 4 |
| Number Of Pieces | 1 |
| Overall Length | 82 mm |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Primary Material Application Iso Code | K, N |
| Secondary Material Application | Composite |
| Secondary Material Application Iso Code | O |
| Shank Dia. | 8.5 mm |
| Shank Length | 53 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 6.5 mm |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Length Standard | Jis |
| Tap Material | High Speed Steel |
| Tap Shank Standard | JIS |
| Tap Style | Straight Flute (Hand) |
| Tap Type | Straight Flute |
| Thread Direction | Right Hand |
| Thread Length | 29 mm |
| Thread Limit | OH5 |
| Thread Limit/class Of Fit | OH5 |
| Thread Pitch | 1.75 mm |
| Thread Size | M12 x 1.75 |
| Thread Standard | Metric Coarse |
| Thread Type | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| Country of Origin | JP |
Product Details:
- Tap Grouping : Tap
- Pitch Diameter Limit : Not Rated
Product Variants
| Product | Model | Thread Size | Thread Length | Overall Length | 75% Thread Drill Size | Shank Dia. | Thread Standard | Thread Type | Shank Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1005910400 | 1/4"-20 | 9/16" | 2 9/16" | #7 | 1/4" | UNC | Coarse | 1 9/16" | €230.71 | |
 |

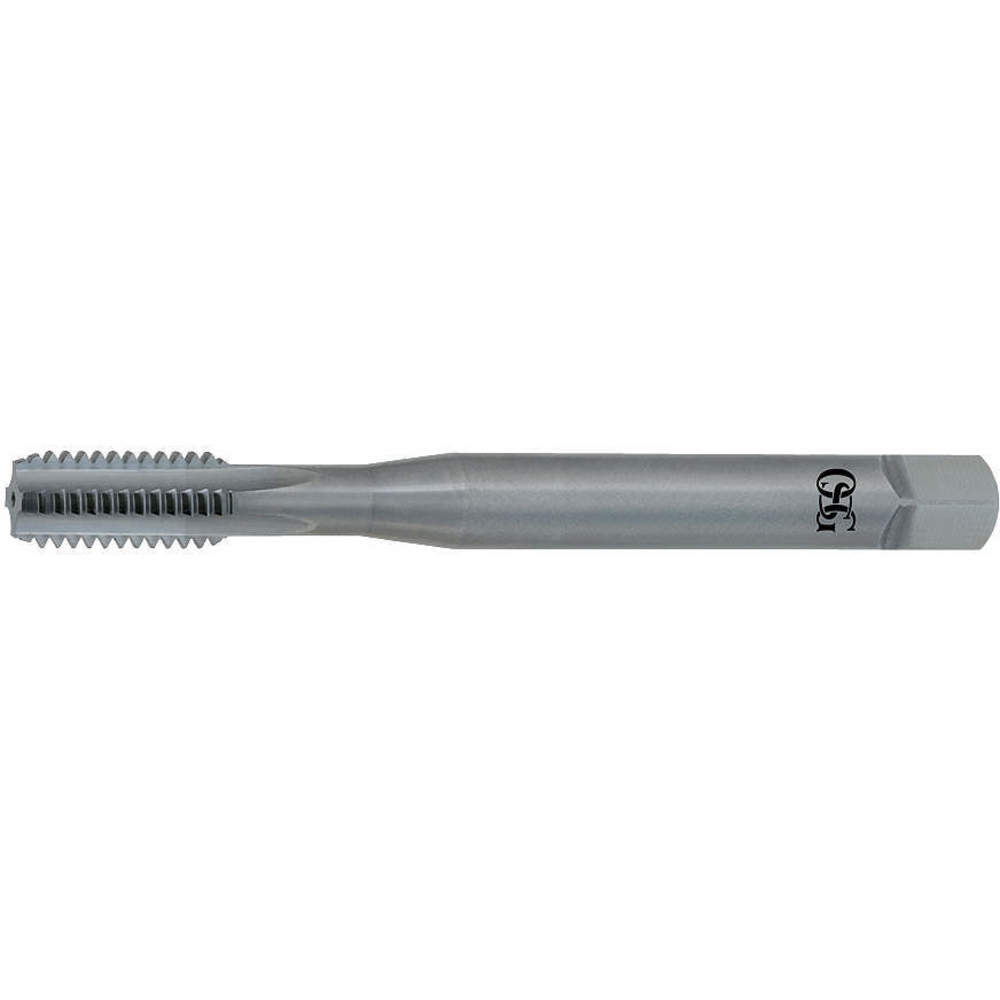

3191100 | 7/16"-14 | 13/16" | 3 29/32" | U | 5/16" | UNC | Coarse | 2 17/32" | €518.40 |
