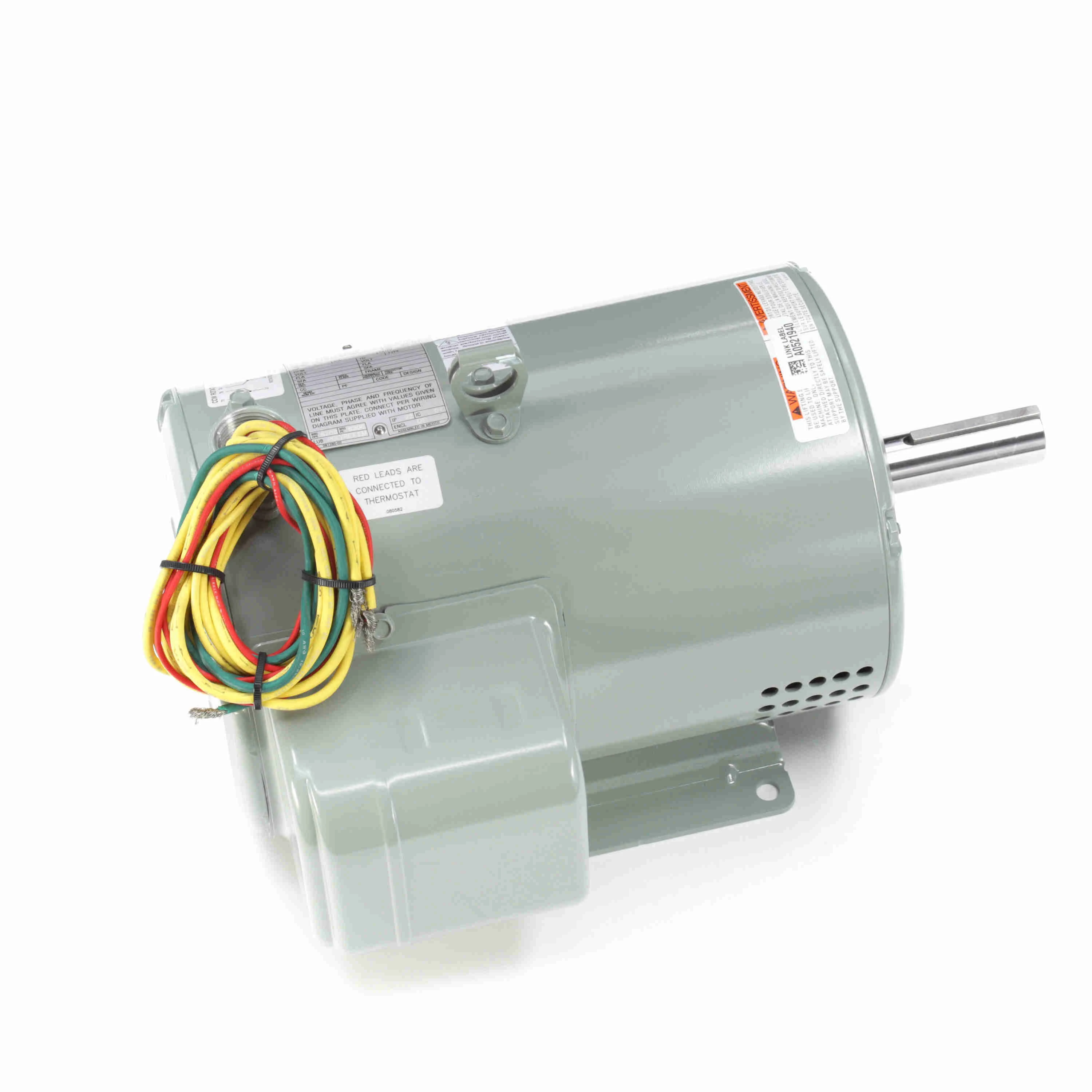

LEESON Agricultural Duty Crop Dryer Motors, Single Phase, Drip Proof Air Over, Rigid Base
Leeson crop dryer motors are suitable for farm or agricultural ventilation / exhaust systems and other commercial applications. These units offer rolled steel frames with epoxy enamel finish for superior corrosion resistance.
Filter
A
B
C
D| Style | Model | Hp | Frame | Thermal Protection | Shaft Length | Efficiency | Type | Nema Design | Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 131847.00 | 5 hp | 182TZ | Automatic | 3 1/2" | 81% | CD | J | J | €1,234.54 | |
| B | 131848.00 | 7 1/2 hp | 182TZ | Automatic | 3 1/2" | 82.5% | KD | L | G | €1,372.58 | |
| C | 140640.00 | 10 hp | 215TZ | Thermostat | 4 1/2" | 85.5% | KD | L | E | €1,934.20 | |
| D | 141084.00 | 10 hp | 215TZ | Thermostat | 3 3/4" | 84% | KD | L | K | €1,934.20 |
Features
- They feature an open dripproof enclosure to permit the flow of external air over and around the motor windings to keep it cool during operation.
- These motors come with oversized sealed ball bearings for smooth & continuous operation and to prevent frictional loss.
- This incorporates a rigid base mounting that resists excessive vibrations and provides an accurate alignment between the motor and the surrounding mechanisms.
- These units are integrated with 1 inch longer shaft than NEMA motors and a protective screen for safeguarding the motor vents against rodents & insects.
Standards and Approvals
- UL
- CSA
Frequently Asked Questions
Where are horizontal motors used?
Horizontal motors can be used for both variable-and-constant torque applications, such as pumps, fans, compressors, cranes and conveyors.
What are rugged cast iron endbells?
Heavy-duty rolled steel motor frames with rugged cast iron endbells offer maximum durability and structural rigidity.
What is a capacitor start- capacitor run electrical type connection?
Capacitor start- capacitor run (CSCR) connection provides the motor with superior torque characteristics when the motor is operating at full speed.
