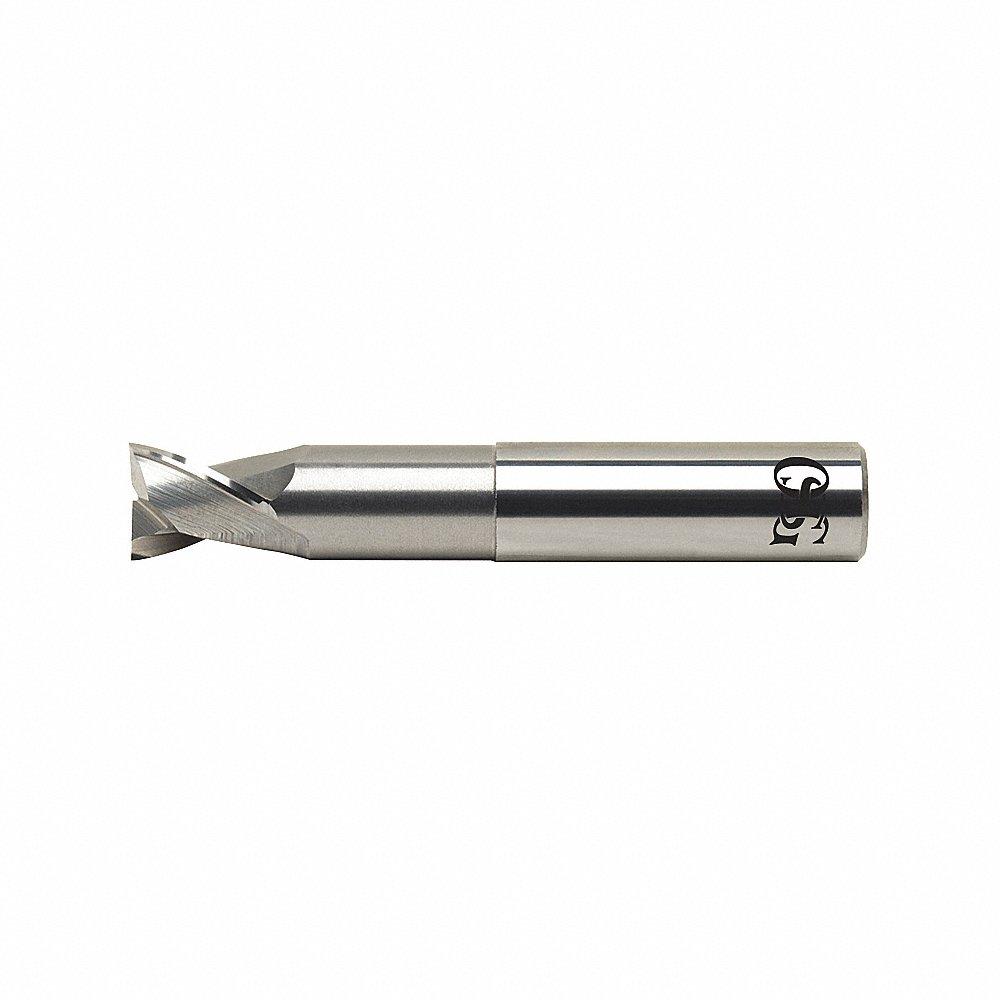

OSG 20240900 Square End Mill, Center Cutting, 2 Flutes, 5/8 Inch Milling Dia, 6 Inch Overall Length
Item: CT6TPMModel: 20240900Cross Ref: 35CF37
7 In Stock
0.625"
0.625"
Ships within 2 days via
10.00% off
€293.95 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Square End Mill |
| Cast Iron (k) Compatibility | No |
| Cutting Direction | Right Hand |
| Cutting Direction - Machining | Right Hand |
| Cutting Length | 5/8" |
| Cutting Type | Center Cutting |
| Dimension Type | Fractional Inch |
| Drilling Tool Configuration | Individual |
| End Mill Application | Roughing/Finishing |
| End Mill Style | Square |
| End Type | Single End |
| Finish | Bright, Uncoated |
| Grade | General Purpose |
| Hardened Compatibility | No |
| Helix Angle | 30° |
| List Number | 2024 |
| Material | Carbide |
| Material Grade - Machining | General Purpose |
| Milling Dia. | 5/8" |
| Neck Dia. | 39/64" |
| Neck Length | 2 3/8" |
| Non Ferrous (n) Compatibility | No |
| Number Of Flutes | 2 |
| Overall Length | 6" |
| Primary Material Application | Aluminum |
| Primary Material Application Iso Code | N |
| Shank Dia. | 5/8" |
| Shank Type | End Mill , Straight |
| Stainless (m) Compatibility | No |
| Steel (p) Compatibility | No |
| Super Alloy (s) Compatibility | No |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Shank Dia. | Overall Length | End Type | Milling Dia. | Grade | List Number | Helix Angle | End Mill Cutting Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
84400623 | 1/4" | 2 1/2" | Double End | 0.188" | - | 8440 | 43° | Center Cutting | €109.26 | |
 |
20224500 | 1/2" | 3" | Single End | 0.469" | General Purpose | 2022 | 30° | Center Cutting | €126.16 | |
 |
20231700 | 1" | 5" | Single End | 1" | General Purpose | 2023 | 30° | Center Cutting | €643.11 | |
 |
20241700 | 1" | 6" | Single End | 1" | General Purpose | 2024 | 30° | Center Cutting | €675.28 | |
 |
HP410-0394 | 6 mm | 60 mm | Single End | 1 mm | General Purpose | HP410 | 30° | Center Cutting | €50.22 | |
 |
8502010 | 4 mm | 40 mm | Single End | 1 mm | General Purpose | 8120 | 30° | Center Cutting | €74.94 | |
|
HP410-0551 | 6 mm | 60 mm | Single End | 1.4 mm | General Purpose | HP410 | 30° | Center Cutting | €58.54 |
