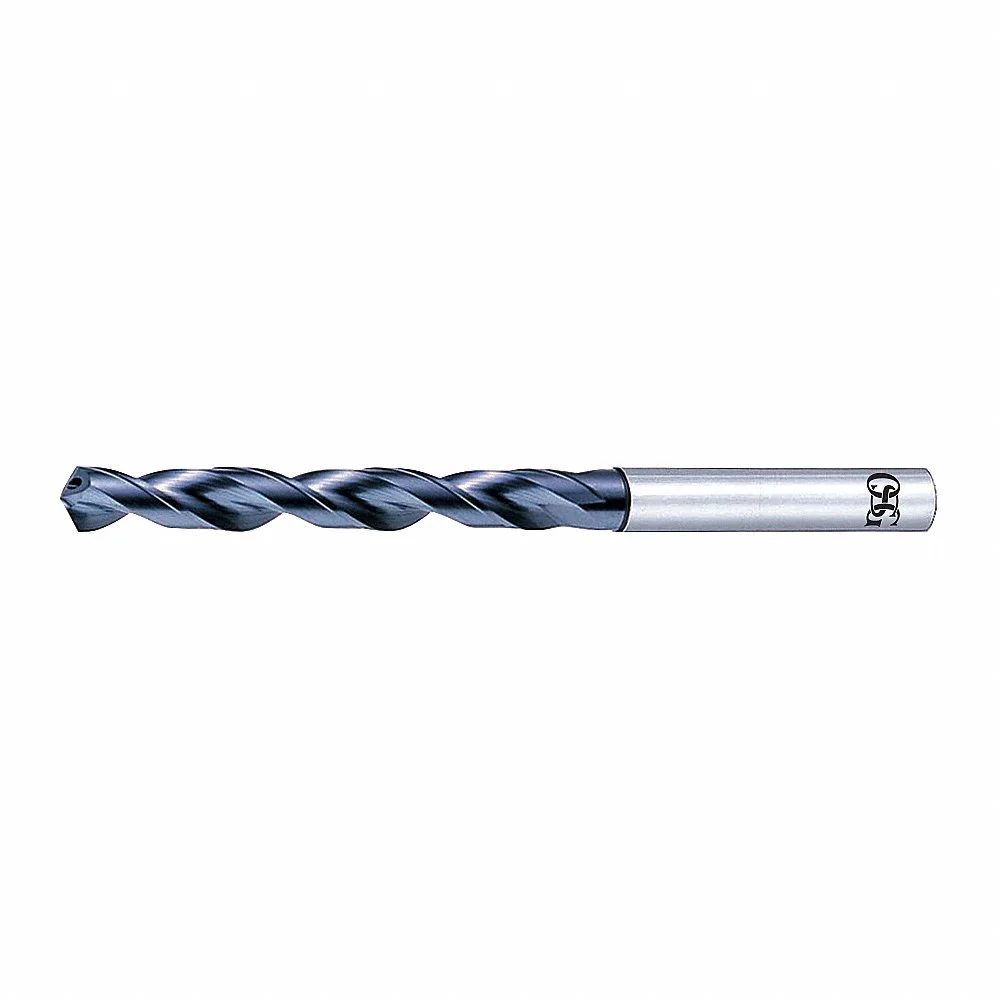

OSG 17500008 Jobber Length Drill Bit, 1/2 Inch Size Drill Bit Size, 1/2 Inch Shank Dia
Item: CT6CNDModel: 17500008Cross Ref: 34YU77
7 In Stock
Ships within 2 days via
10.00% off
€389.18 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Jobber Length Drill Bit |
| Coolant Fed | Coolant Through |
| Coolant Through | No |
| Cutting Direction | Right Hand |
| Decimal Equivalent | 0.5 |
| Depth X Dia. Ratio | 5xd |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 130° |
| Drill Bit Point Type | R Thinning Point |
| Drill Bit Size | 1/2" |
| Drill Diameter Tolerance | -0.027 mm to 0 mm |
| Drill Length Class | Jobber Length |
| Finish | V Coat |
| Finish - Machining | V |
| Flute Length | 4 1/2" |
| Flute Type | Spiral |
| Helix Angle | 30° |
| List Number | 1700 |
| Material | High Speed Steel |
| Material - Machining | High Speed Steel |
| Max. Drilling Depth | 4 1/2" |
| Number Of Coolant Holes | 2 |
| Number Of Flutes | 2 |
| Overall Length | 6 19/32" |
| Point Angle | 130° |
| Point Type | R Thinning Point |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Secondary Material Application | Aluminum, Cast Iron, Die Steel, Hardened Steel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, M, N, P, S |
| Series | 1700 Series |
| Shank Dia. | 1/2" |
| Shank Length | 53 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Sheeter Drill | No |
| Size | 1/2" |
| Standards | Not Rated |
| System Of Measurement | Fractional Inch |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Decimal Equivalent | Shank Dia. | Flute Length | Max. Drilling Depth | Drill Bit Size | Overall Length | Shank Length | Drill Diameter Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 18062508 | 1.0625 | 1 1/4" | 6 5/8" | 6 5/8" | 1 1/16" | 9 11/16" | 78 mm | -0.033 mm to 0 mm | €1,164.11 | |

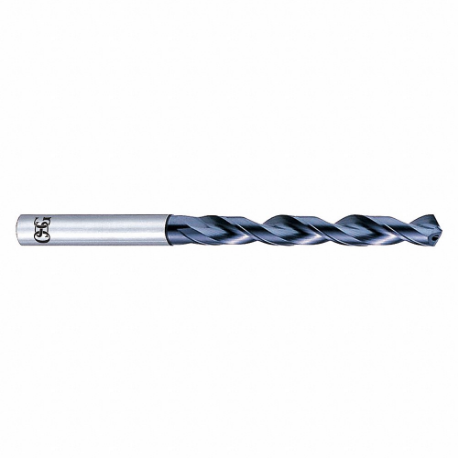

| 18031208 | 1.0313 | 25.4 mm | 6 1/2" | 6 1/2" | 1 1/32" | 228 mm | 77 mm | -0.033 mm to 0 mm | €1,098.45 | |
| 18250008 | 1.25 | 1 1/4" | 7 7/8" | 7 7/8" | 1 1/4" | 7 3/16" | 77 mm | -0.039 mm to 0 mm | €1,435.98 | |
| 18125008 | 1.125 | 1 1/4" | 7 1/8" | 7 1/8" | 1 1/8" | 13/16" | 78 mm | -0.033 mm to 0 mm | €1,240.51 | |
| 18093808 | 1.0938 | 1 1/4" | 6 7/8" | 6 7/8" | 1 3/32" | 9 15/16" | 78 mm | -0.033 mm to 0 mm | €1,164.11 | |
| 18218808 | 1.2188 | 1 1/4" | 7 1/2" | 7 1/2" | 1 7/32" | 1 3/16" | 78 mm | -0.039 mm to 0 mm | €1,435.98 | |
| 18000008 | 1 | 1" | 6 3/8" | 6 3/8" | 1" | - | 78 mm | -0.033 mm to 0 mm | €1,053.59 |
