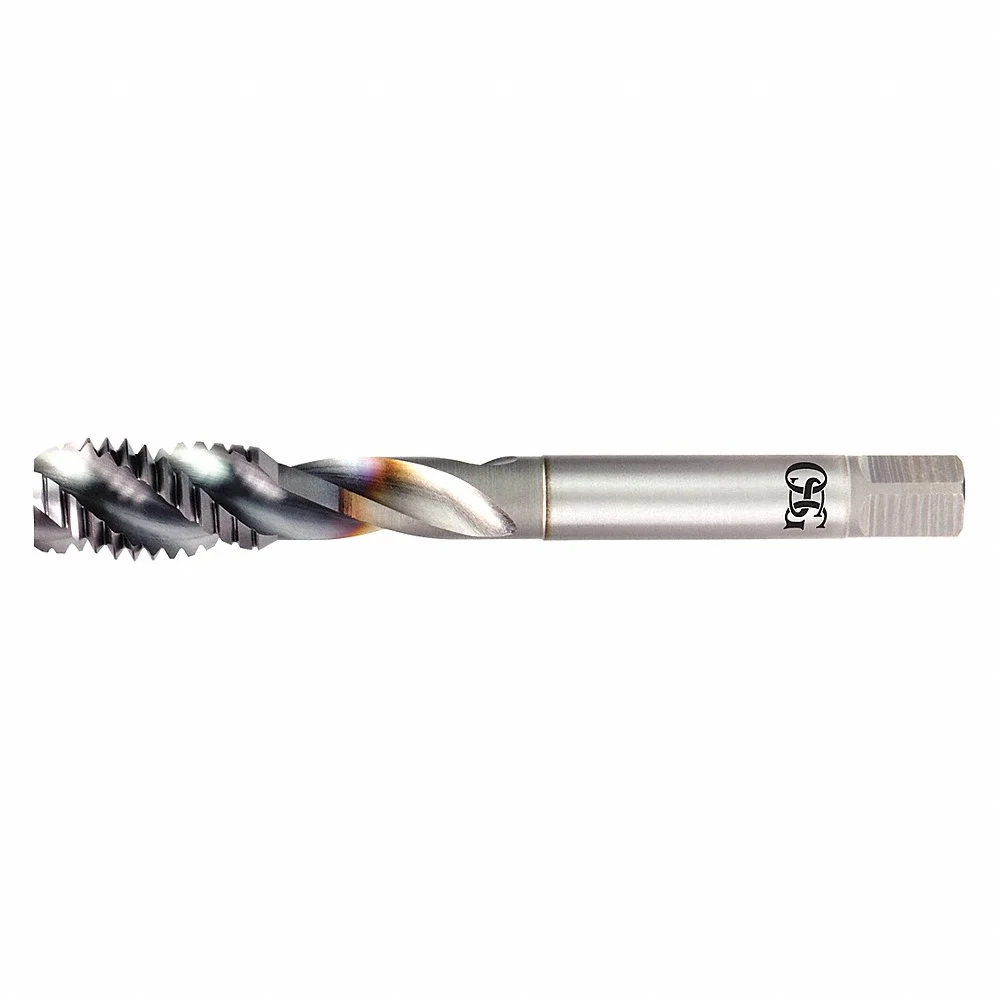

OSG 1654001908 Spiral Flute Tap, M16X1.5 Thread Size, 16 mm Thread Length, 100 mm Length, Right Hand
Item: CT6NDYModel: 1654001908Cross Ref: 54MH92
7 In Stock
0.565"
0.577"
Ships within 2 days via
€155.75 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 14.9 mm |
| 65% Thread Drill Size | 14.7 mm |
| 75% Thread Drill Size | 14.5 mm |
| Coolant Fed | Coolant Through |
| Drill Bit Size | 14.44 mm, 14.54 mm, 14.64 mm, 14.73 mm, 14.83 mm |
| Extended Neck | Yes |
| Features | Accelerates Chip Evacuation, High Wear Resistance, Long Tool Life, Stabilizes Chip Shape |
| Finish | Titanium Carbonitride Coated |
| Grade | Grade 16540 |
| Material Grade-machining | Grade 16540 |
| No. Of Flutes | 3 |
| Overall Length | 100 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 12.19 mm |
| Shank Length | 46 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Square Size | 9.14 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M16 x 1.5 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 16 mm |
| Thread Limit | D6 |
| Thread Limit/class Of Fit | D6 |
| Thread Pitch | 1.5 mm |
| Thread Size | M16 x 1.5 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.07 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10 |
| Ship width (cm) | 2.54 |
| Country of Origin | JP |
Product Variants
| Product | Model | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Coolant Fed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 2 1/2" | 1/4"-20 | TiN | H3 | #7 | 1/4" | Bottoming | Non Coolant Through | €27.80 | |
 |
1645514207 | 110 mm | M14 x 2 | TiN | D7 | 12 mm | 10.89 mm | Modified Bottom | Non Coolant Through | €157.25 | |
|
1645516205 | 110 mm | M16 x 2 | TiN | D5 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645516207 | 110 mm | M16 x 2 | TiN | D7 | 14 mm | 12.19 mm | Modified Bottom | Non Coolant Through | €174.56 | |
|
1645518257 | 125 mm | M18 x 2.5 | TiN | D7 | 16.5 | 13.76 mm | Modified Bottom | Non Coolant Through | €241.63 | |
 |
0142008 | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | Non Coolant Through | €41.62 | |
|
0142108 | 2 1/8" | - | - | - | - | 0.168" | Bottoming | - | €41.62 |
