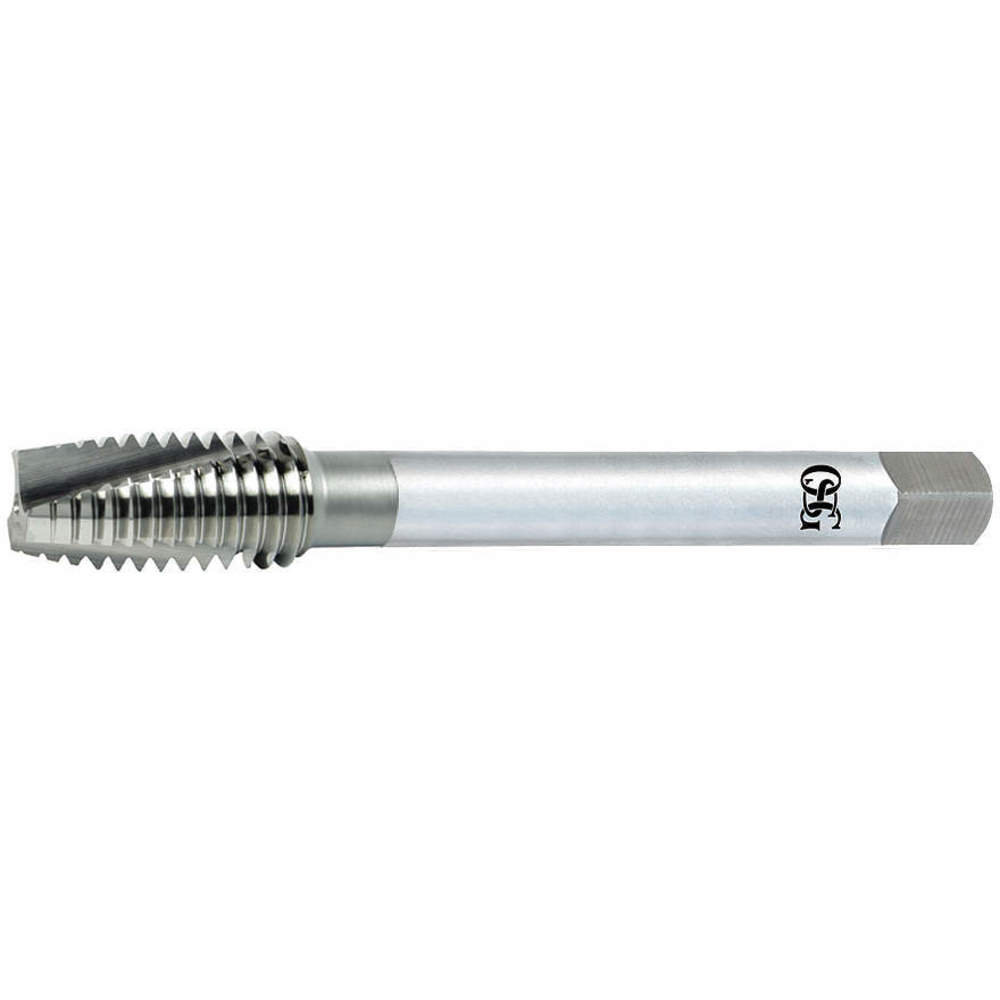

OSG 1606000 Spiral Point Tap Assembly Plug #5x40 Bright
Item: AG4DUYModel: 1606000Cross Ref: 33YG46
7 In Stock
0.1062"
0.323"
Ships within 2 days via
10.00% off
€33.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| 55% Thread Drill Size | #36 |
| 65% Thread Drill Size | #37 |
| 75% Thread Drill Size | #39 |
| Class Of Fit | Class H3 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.0990", 0.1006", 0.1023", 0.1039", 0.1055" |
| Extended Neck | Yes |
| Finish | Bright |
| List Number | 105A |
| Material | High Speed Steel |
| Measurement System | Pipe |
| Number Of Flutes | 2 |
| Overall Length | 1 29/32" |
| Pitch Diameter Limits | H2 |
| Pitch Type | 40 |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 9/64" |
| Shank Length | 1 9/32" |
| Shank Type - Machining | Straight |
| Size | #5 |
| Spiral Direction | Neutral |
| Square Size | 0.11" |
| Tap Chamfer | Plug |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Thread Size | #5-40 |
| Tap Type | Assembly Plug |
| Thread Direction | Right Hand |
| Thread Length | 5/16" |
| Thread Limit | H2 |
| Thread Limit/class Of Fit | H2, H3 |
| Thread Size | #5-40 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 40 |
Shipping Info:
| Ship height (cm) | 0.76 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 0.76 |
| HS code | 8207400000 |
Product Variants
| Product | Model | Thread Size | Thread Direction | Number Of Flutes | Thread Length | Overall Length | Tap Finish | Thread Limit | 75% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2805608 | #2-56 | Right Hand | 2 | 3/8" | 1 3/4" | TiCN | H2 | 1.73 mm | €59.92 | |
|
2811408 | #4-40 | Right Hand | 2 | 1/4" | 1 27/32" | TiCN | H3 | 2.2 mm | €40.60 | |
|
2835408 | 1/4"-28 | Right Hand | 3 | 9/16" | 2 1/2" | TiCN | H4 | 5.45 mm | €42.08 | |
|
2844008 | 7/8"-9 | Right Hand | 3 | 1 5/16" | 4 21/32" | TiCN | H5 | 19.5 mm | €289.14 | |
|
2852001 | 1 1/2"-8 | Right Hand | 4 | 2" | 6 11/32" | Black Oxide | H6 | 1.3782" | €1,096.75 | |
 |
2891101 | M7 x 1 | Right Hand | 3 | 12 mm | 69 mm | Black Oxide | D5 | 6 mm | €53.12 | |
 |
2888205 | M5 X 0.8 | Right Hand | 2 | 13 mm | 60 mm | Tin | 6H | 4.2 mm | €32.68 |
