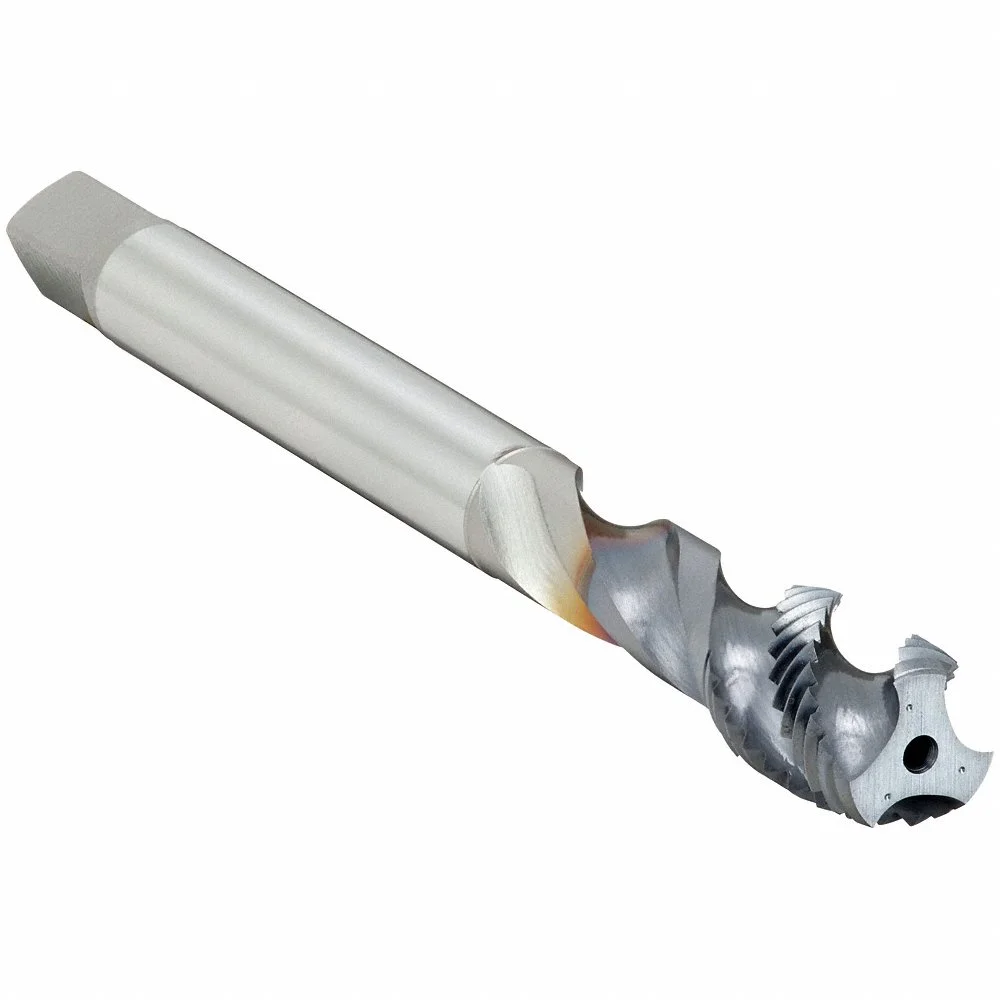

OSG 1650012908 Spiral Flute Tap, M12X1.5 Thread Size, 14 mm Thread Length, 100 mm Length
Item: CT6MPUModel: 1650012908Cross Ref: 54MH19
7 In Stock
0.408"
0.420"
Ships within 2 days via
10.00% off
€112.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 10.9 mm |
| 65% Thread Drill Size | 27/64" |
| 75% Thread Drill Size | 10.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 10.44 mm, 10.54 mm, 10.64 mm, 10.73 mm, 10.83 mm |
| Extended Neck | Yes |
| Features | Osg'S Proprietary V Coating, Powder Metallurgy Hss, Sharp Cutting Edge, Variable Helix Flute |
| Finish | Titanium Carbonitride Coated |
| Material Grade - Machining | Grade 16500 |
| Number Of Flutes | 3 |
| Overall Length | 100 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 9.32 mm |
| Shank Length | 50.9 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 6.98 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | DIN |
| Tap Style | Spiral Flute |
| Tap Thread Size | M12 x 1.5 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 14 mm |
| Thread Limit | D6 |
| Thread Limit/class Of Fit | D6 |
| Thread Pitch | 1.5 mm |
| Thread Size | M12 x 1.5 |
| Thread Standard | Metric Fine |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Thread Length | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1430105 | 3 | 5/8" | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | €39.71 | |
 |
1645514207 | 3 | 16 mm | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | €224.64 | |
|
1645516205 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | €249.37 | |
|
1645516207 | 3 | 16 mm | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | €249.37 | |
|
1645518257 | 4 | 25 mm | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | €345.18 | |
 |
0142008 | 2 | 3/16" | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | €59.46 | |
|
0142108 | 2 | 3/4" | 2 1/8" | - | - | - | - | 0.168" | €59.46 |
