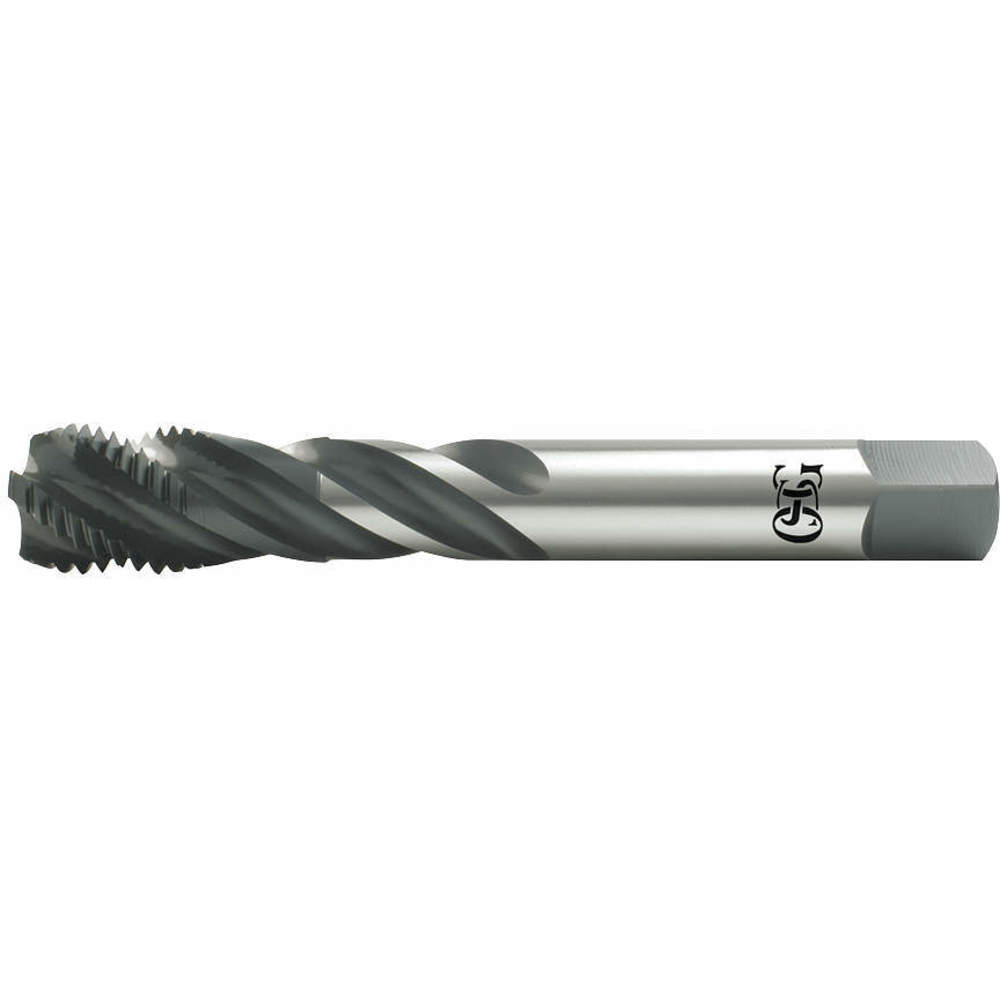

OSG 1302503701 Spiral Flute Tap Modified Bottoming 2-1/4 Inch x 4-1/2 S/o | AG3YLY 33XK56

OSG 1302503701 Spiral Flute Tap, 2-1/4 Inch - 4-1/2 Thread Size, 1 3/4 Inch Thread Lg, 2B / 2B

Item: AG3YLYModel: 1302503701Cross Ref: 33XK56

7 In Stock

2.009"

2.009"
0.6447"
0.7716"
0.7635"
0.565"
0.642"
0.446"
0.145"
0.267"
0.307"
0.33"
0.527"
0.104"
0.211"
0.417"
0.682"
0.472"
0.502"
0.755"
0.865"
0.97"
0.99"
1.095"
1.195"
1.24"
1.32"
1.365"
1.49"
1.615"
1.74"
1.865"
2.365"
0.798"
0.91"
1.035"
1.16"
1.41"
1.533"
1.759"
2.229"
1.285"
2.115"
0.680"
0.817"
1.03"
1.15"
1.46"
0.544"
0.93"
0.0968"
0.127"
0.193"
0.261"
0.340"
0.329"
0.397"
0.079"
0.13"
0.171"
0.465"
0.136"
0.369"
0.408"
1.115"
0.0979"
0.216"
0.383"
0.232"
0.282"
0.301"
0.602"
0.487"
0.644"
0.0667"
0.162"
0.0849"
0.0894"
0.177"
0.0764"
0.0797"
0.111"
0.112"
0.272"
0.419"
0.5806"
0.637"
0.899"
1.0271"
1.0181"
0.156"
0.196"
0.252"
0.36"
0.199"
0.3245"
0.3215"
0.453"
0.4483"

Tap Drill Size Min

2.045"

2.045"
0.6564"
0.7838"
0.772"
0.578"
0.663"
0.457"
0.156"
0.277"
0.321"
0.34"
0.546"
0.114"
0.22"
0.434"
0.696"
0.49"
0.515"
0.778"
0.89"
0.998"
1.015"
1.123"
1.225"
1.265"
1.35"
1.39"
1.515"
1.64"
1.765"
1.89"
2.39"
0.814"
0.928"
1.053"
1.178"
1.428"
1.567"
1.795"
2.267"
1.303"
2.14"
0.698"
0.836"
1.05"
1.17"
1.48"
0.559"
0.954"
0.102"
0.134"
0.202"
0.272"
0.350"
0.341"
0.411"
0.0841"
0.139"
0.181"
0.480"
0.141"
0.380"
0.420"
1.14"
0.1062"
0.224"
0.395"
0.242"
0.290"
0.311"
0.619"
0.499"
0.656"
0.0737"
0.170"
0.0939"
0.0968"
0.186"
0.0845"
0.0865"
0.119"
0.118"
0.281"
0.429"
0.5918"
0.6451"
0.9119"
1.0421"
1.0281"
0.164"
0.207"
0.265"
0.376"
0.2"
0.3342"
0.3288"
0.4639"
0.4561"

Tap Drill Size Max

Ships within 2 days via

€2,525.72 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Spiral Flute Tap
65% Thread Drill Size	2.0624"
75% Thread Drill Size	2.0335
Class Of Fit	Class 2B
Coolant Fed	Coolant Through
Cutting Direction-machining	Right Hand
Drill Bit Size	2.0191", 2.0335", 2.0479", 2.0624", 2.0768"
Extended Neck	Yes
Features	Vertical Tapping Solutions For The Oil And Gas Industry
Finish	Black Oxide
Helix Angle	45°
List Number	13025
Material	High Speed Steel
Material Grade-machining	Grade 13025
No. Of Flutes	6
Overall Length	11"
Pitch Dia. Limits	2B
Primary Material Application	Cast Iron, Steel
Primary Material Application Iso Code	K, P
Secondary Material Application	Stainless Steel
Secondary Material Application Iso Code	M
Shank Dia.	1 7/8"
Shank Length	9 7/32"
Shank Type	Straight
Shank Type-machining	Straight
Size	2.25"
Square Size	1.42"
System Of Measurement	Fractional Inch
Tap Chamfer	Modified Bottoming
Tap Finish	Black Oxide
Tap Length Standard	DIN
Tap Material	High Speed Steel
Tap Shank Standard	ANSI
Tap Style	Spiral Flute
Tap Thread Size	2 1/4"-4-1/2
Tap Type	Spiral Flute
Thread Direction	Right Hand
Thread Length	1 3/4"
Thread Limit	2B
Thread Limit/class Of Fit	2B, 2B
Thread Size	2 1/4"-4 1/2
Thread Standard	UNC
Thread Type	Coarse
Threads Per Inch	4.5

Shipping Info:

Ship weight (kg)	0.53
Ship height (cm)	7.62
Ship length (cm)	33.02
Ship width (cm)	7.62
HS code	8207400000
Country of Origin	JP

Product Variants

Model	Overall Length	Thread Size	Tap Finish	Thread Limit	75% Thread Drill Size	Shank Dia.	Tap Type	Coolant Fed	Price
1430105	2 1/2"	1/4"-20	TiN	H3	#7	1/4"	Bottoming	Non Coolant Through	€27.80
1645514207	110 mm	M14 x 2	TiN	D7	12 mm	10.89 mm	Modified Bottom	Non Coolant Through	€157.25
1645516205	110 mm	M16 x 2	TiN	D5	14 mm	12.19 mm	Modified Bottom	Non Coolant Through	€174.56
1645516207	110 mm	M16 x 2	TiN	D7	14 mm	12.19 mm	Modified Bottom	Non Coolant Through	€174.56
1645518257	125 mm	M18 x 2.5	TiN	D7	16.5	13.76 mm	Modified Bottom	Non Coolant Through	€241.63
0142008	2"	#6-32	TiCN	H4	#36	9/64"	Bottoming	Non Coolant Through	€41.62
0142108	2 1/8"	-	-	-	-	0.168"	Bottoming	-	€41.62
