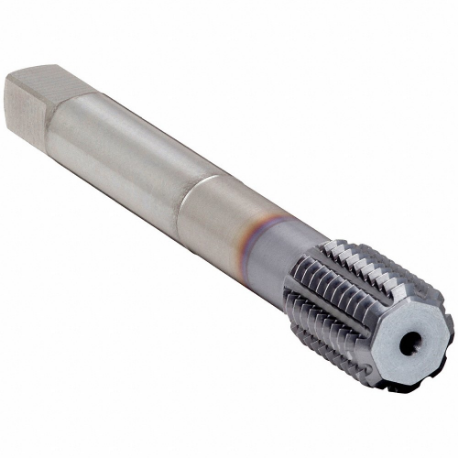

OSG 1635022512 Thread Forming Tap, M22X2.5 Thread Size, 25 mm Thread Length, 140 mm Length
Item: CT7AMVModel: 1635022512Cross Ref: 54MD78
7 In Stock
0.815"
2.65"
Ships within 2 days via
10.00% off
€458.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| 55% Thread Drill Size | 53/64" |
| 65% Thread Drill Size | 20.9 mm |
| 75% Thread Drill Size | 20.75 mm |
| Class Of Fit | Class 6H |
| Coolant Fed | Non Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | No |
| Features | 40-50% Less Machining Torque, Fluteless Forming Tap |
| Finish | Titanium Carbonitride Coated |
| List Number | 16350 |
| Material Grade - Machining | Grade 16350 |
| No. Of Pieces | 1 |
| Number Of Flutes | 0 |
| Overall Length | 140 mm |
| Primary Material Application Iso Code | H, M, N, P |
| Secondary Material Application | Hardened Steel, Nickel, Titanium |
| Secondary Material Application Iso Code | H, S |
| Shank Dia. | 17.7 mm |
| Shank Length | 72.6 mm |
| Spiral Direction | Neutral |
| Square Size | 13.28 mm |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Cobalt |
| Tap Shank Standard | ANSI |
| Tap Style | Thread Forming |
| Tap Thread Type | Metric Coarse |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Limit | D12 |
| Thread Limit / Class Of Fit | D12, 6H |
| Thread Pitch | 2.5 mm |
| Thread Size | M22 x 2.5 |
| Thread Standard | Metric Coarse |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Overall Length | Thread Length | Thread Limit | Thread Size | Tap Finish | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1400100006 | - | 1 5/8" | 1/4" | H2 | #0-80 | TiCN | 1.3 mm | 9/64" | €35.77 | |
 |
1400100000 | - | 1 39/64" | 5/16" | H2 | #0-80 | Bright | 1.2 mm | 9/64" | €33.20 | |
|
1400100100 | - | 1 39/64" | 5/16" | H3 | #0-80 | Bright | 1.2 mm | 9/64" | €36.56 | |
 |
1400100101 | - | 1 39/64" | 5/16" | H3 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €36.56 | |
 |
1405000308 | - | 1 39/64" | 5/16" | H3 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1405000208 | - | 1 39/64" | 5/16" | H2 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1400100201 | - | 1 39/64" | 5/16" | H2 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €33.20 |
