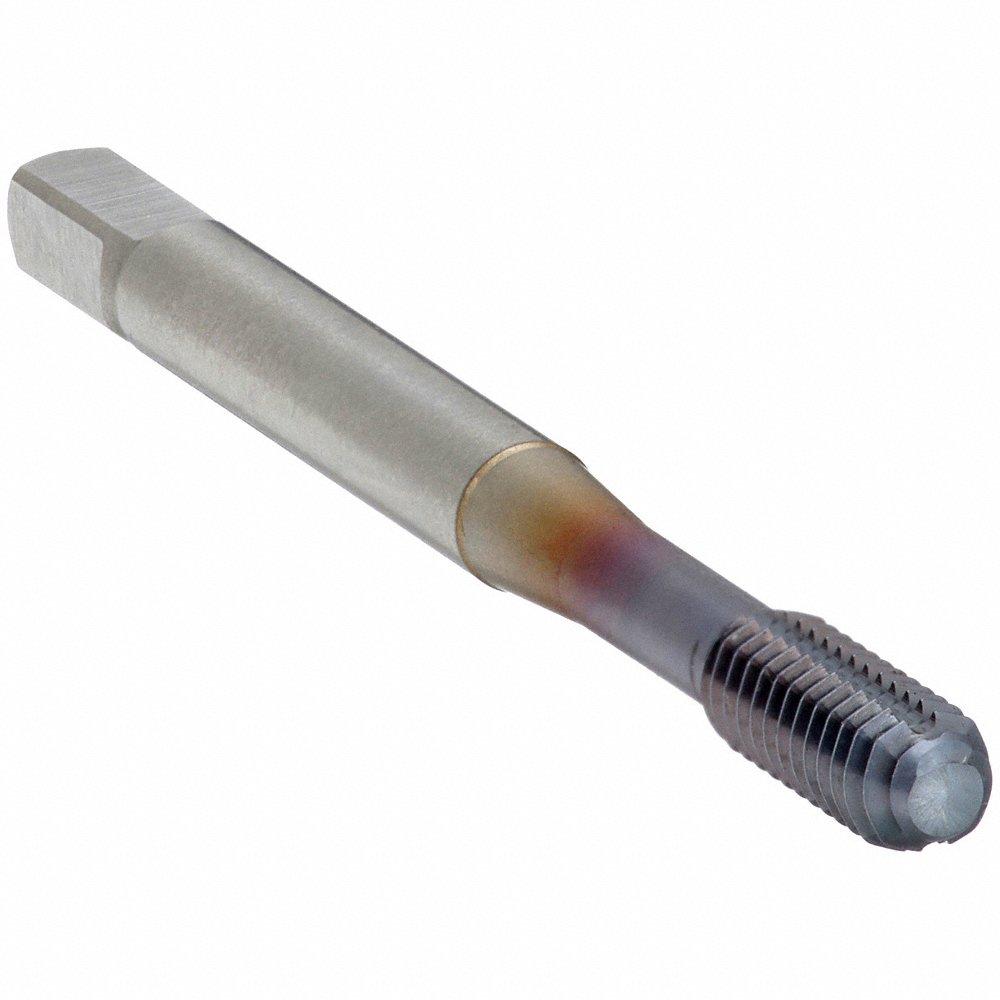

OSG 1405004808 Thread Forming Tap, #10-24 Thread Size, 1/2 Inch Thread Length, 2 23/64 Inch Length, Ticn
Item: CT6ZJQModel: 1405004808Cross Ref: 2TMX9
7 In Stock
0.16875"
0.866141"
Ships within 2 days via
10.00% off
€71.31 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Thread Forming Tap |
| 55% Thread Drill Size | 4.42 mm |
| 65% Thread Drill Size | 11/64" |
| 75% Thread Drill Size | 4.27 mm |
| Coolant Fed | Non Coolant Through |
| Cutting Direction - Machining | Right Hand |
| Extended Neck | No |
| Features | Create Strong Threads Without Creating Chips, For Forming Internal Threads |
| Finish | Titanium Carbonitride Coated |
| List Number | 14050 |
| Material Grade - Machining | Grade 14050 |
| No. Of Pieces | 1 |
| Number Of Flutes | 0 |
| Overall Length | 2 23/64" |
| Primary Material Application | Aluminum, Brass, Bronze, Copper, Stainless Steel, Steel |
| Primary Material Application Iso Code | M, N, P |
| Secondary Material Application | Hardened Steel, Stainless Steel |
| Secondary Material Application Iso Code | H, M |
| Shank Dia. | 3/16" |
| Shank Length | 1 7/16" |
| Spiral Direction | Neutral |
| Square Size | 0.152" |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Grouping | Tap |
| Tap Material | High Strength Steel |
| Tap Style | Thread Forming |
| Tap Type | Thread Forming |
| Thread Direction | Right Hand |
| Thread Length | 1/2" |
| Thread Limit | H3 |
| Thread Limit/class Of Fit | H3 |
| Thread Size | #10-24 |
| Thread Standard | Coarse |
| Threads Per Inch | 24 |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Number Of Flutes | Overall Length | Thread Length | Thread Limit | Thread Size | Tap Finish | 75% Thread Drill Size | Shank Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1400100006 | - | 1 5/8" | 1/4" | H2 | #0-80 | TiCN | 1.3 mm | 9/64" | €35.77 | |
 |
1400100000 | - | 1 39/64" | 5/16" | H2 | #0-80 | Bright | 1.2 mm | 9/64" | €33.20 | |
|
1400100100 | - | 1 39/64" | 5/16" | H3 | #0-80 | Bright | 1.2 mm | 9/64" | €36.56 | |
 |
1400100101 | - | 1 39/64" | 5/16" | H3 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €36.56 | |
 |
1405000308 | - | 1 39/64" | 5/16" | H3 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1405000208 | - | 1 39/64" | 5/16" | H2 | #0-80 | TiCN | 1.36 mm | 9/64" | €85.83 | |
 |
1400100201 | - | 1 39/64" | 5/16" | H2 | #0-80 | Black Oxide | 1.2 mm | 9/64" | €33.20 |
