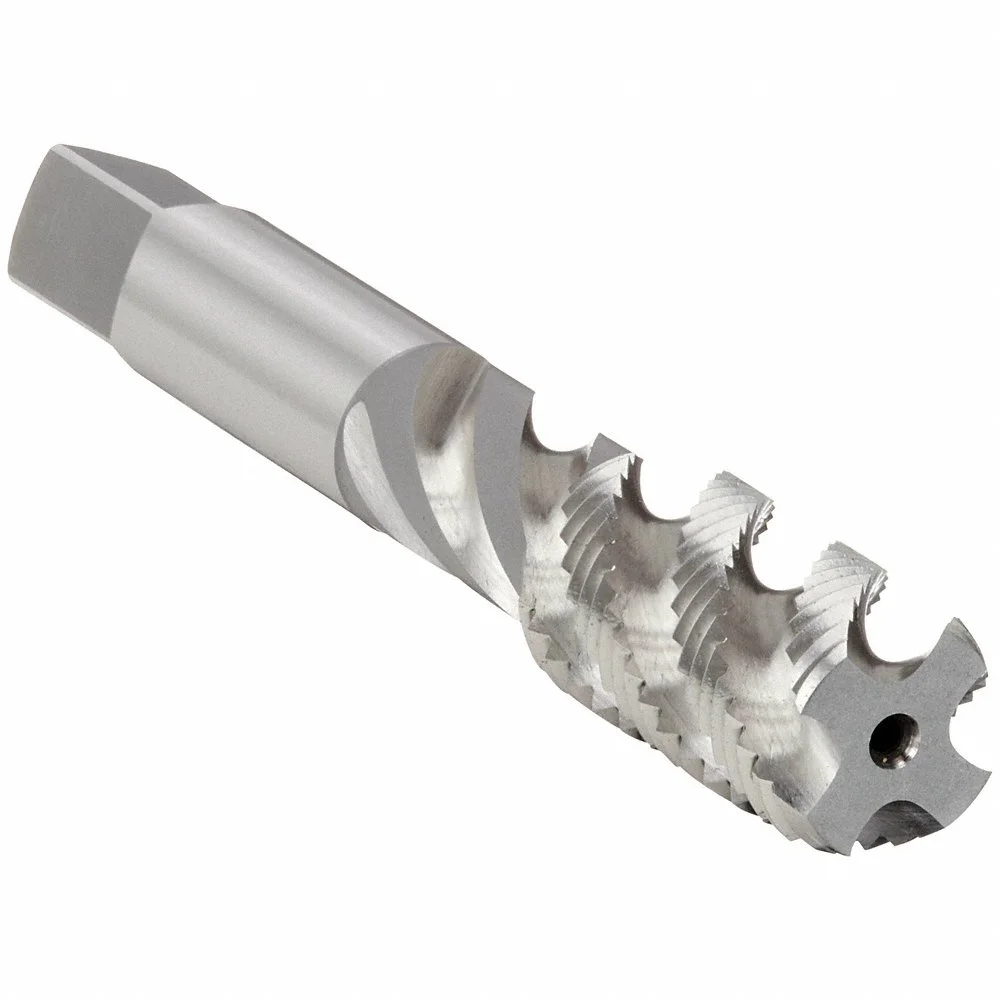

OSG 1433700 Spiral Flute Tap, 3/4-10 Thread Size, 1 3/16 Inch Thread Length, 4 1/4 Inch Length, H3
Item: CT6LZMModel: 1433700Cross Ref: 2WAA4
7 In Stock
Ships within 2 days via
10.00% off
€189.11 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 17.2 mm |
| 65% Thread Drill Size | 16.9 mm |
| 75% Thread Drill Size | 16.5 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.6461", 0.6526", 0.6591", 0.6656", 0.6721" |
| Extended Neck | Yes |
| Features | Efficient Chip Evacuation, For Blind Hole Applications, Increased Wear Resistance, Spiral Flute Taps For Ferrous And Non-Ferrous Materials |
| Finish | Bright |
| Grade | Grade 107 |
| Helix Angle | 50° |
| Material Grade - Machining | Grade 107 |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 4 1/4" |
| Primary Material Application | All Materials |
| Primary Material Application Iso Code | H, K, M, N, O, P, S |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Secondary Material Application Iso Code | K, N, P |
| Shank Dia. | 37/64" |
| Shank Length | 1 13/16" |
| Shank Type - Machining | Straight |
| Square Size | 0.442" |
| System Of Measurement | Imperial |
| Tap Chamfer | Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 3/4"-10 |
| Tap Type | Spiral Flute |
| Thread Length | 1 3/16" |
| Thread Limit | H3 |
| Thread Limit/class Of Fit | H3 |
| Thread Size | 3/4"-10 |
| Thread Standard | Coarse |
| Threads Per Inch | 10 |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Thread Size | Number Of Flutes | Thread Length | 75% Thread Drill Size | Overall Length | Thread Limit | Tap Finish | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1413301 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Black Oxide | Coarse | €33.97 | |
 |
1413300 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Bright | Coarse | €33.97 | |
 |
1413200 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Bright | Coarse | €33.97 | |
 |
1413305 | #10-24 | 3 | 1/2" | #25 | 2 11/32" | H3 | Tin | Coarse | €37.13 | |
 |
2985400 | #10-24 | 3 | 7/8" | #25 | 2 3/8" | 2B | Bright | Coarse | €24.86 | |
 |
2985405 | #10-24 | 3 | 7/8" | #25 | 2 3/8" | 2B | - | Coarse | €33.63 | |
 |
1413501 | #10-32 | 3 | 1/2" | #21 | 2 11/32" | H3 | Black Oxide | Fine | €33.97 |
