OSG 1005201508 Straight Flute Tap, 1/2 Inch - 13 Thread Size, 7/8 Inch Thread Lg, TiCN, H5, Bottoming
Item: AG3NPAModel: 1005201508Cross Ref: 33PC78
7 In Stock
Ships within 2 days via
5.00% off
€103.24 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Straight Flute Tap |
| 55% Thread Drill Size | 11.3 mm |
| 65% Thread Drill Size | 11 mm |
| 75% Thread Drill Size | 27/64" |
| Coolant Fed | Non Coolant Through |
| Extended Neck | Yes |
| Finish | TiCN Coated |
| List Number | 10052 |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 4 5/16" |
| Pitch Diameter Limits | H5 |
| Pitch Type | 13 |
| Primary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper |
| Primary Material Application Iso Code | K, N |
| Shank Dia. | 23/64" |
| Shank Length | 2 3/8" |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 0.274" |
| Tap Chamfer | Bottoming |
| Tap Finish | TiCN |
| Tap Length Standard | DIN |
| Tap Material | Powdered Metal |
| Tap Shank Standard | ANSI |
| Tap Style | Straight Flute (Hand) |
| Tap Type | Bottoming |
| Thread Direction | Right Hand |
| Thread Length | 7/8" |
| Thread Limit | H5 |
| Thread Limit/class Of Fit | H5 |
| Thread Size | 1/2"-13 |
| Thread Standard | UNC |
| Thread Type | Coarse |
| Threads Per Inch | 13 |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 1.91 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 1.91 |
| HS code | 8207406000 |
| Country of Origin | MX |
Product Variants
| Model | Number Of Flutes | Thread Size | Overall Length | 75% Thread Drill Size | Thread Limit | Shank Dia. | Thread Type | Pitch Diameter Limits | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1005200508 | 4 | 5/16"-18 | 3 17/32" | F | H5 | 5/16" | Coarse | H5 | €62.01 | |
| 1005202908 | 5 | 3/4"-16 | 4 5/16" | 17.5 mm | H5 | 37/64" | Fine | H5 | €202.89 | |

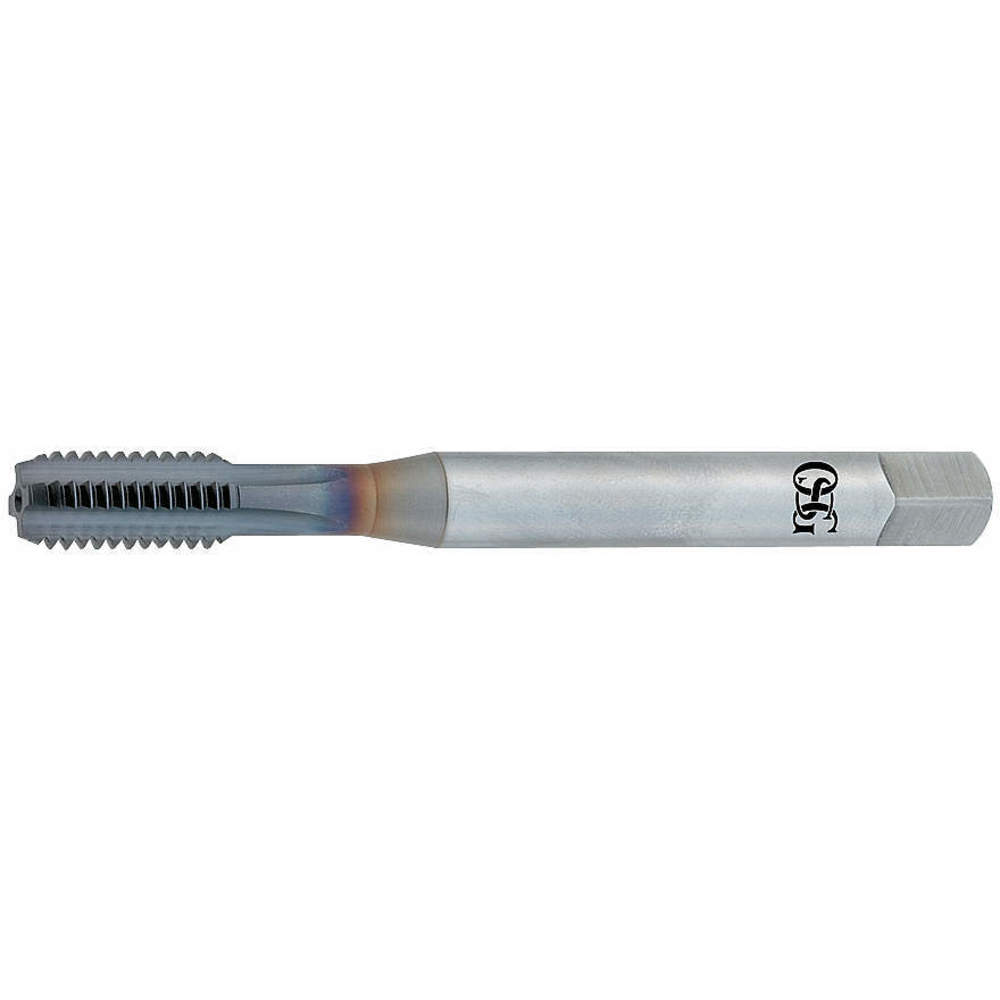

| 1005600308 | 4 | 1/4"-28 | - | 5.45 mm | H3 | 1/4" | Fine | H3 | €56.23 | |
| 1105200208 | 4 | M8 x 1.25 | 90 mm | H | D5 | 8.07 mm | Metric Coarse | D5 | €64.68 | |
| 1105200308 | 4 | M10 x 1 | 90 mm | 9 mm | D5 | 9.67 mm | Metric Fine | D5 | €72.93 | |
| 1105600808 | 4 | - | 86 mm | - | - | 6.9 mm | Metric Coarse | D6 | €103.26 |
