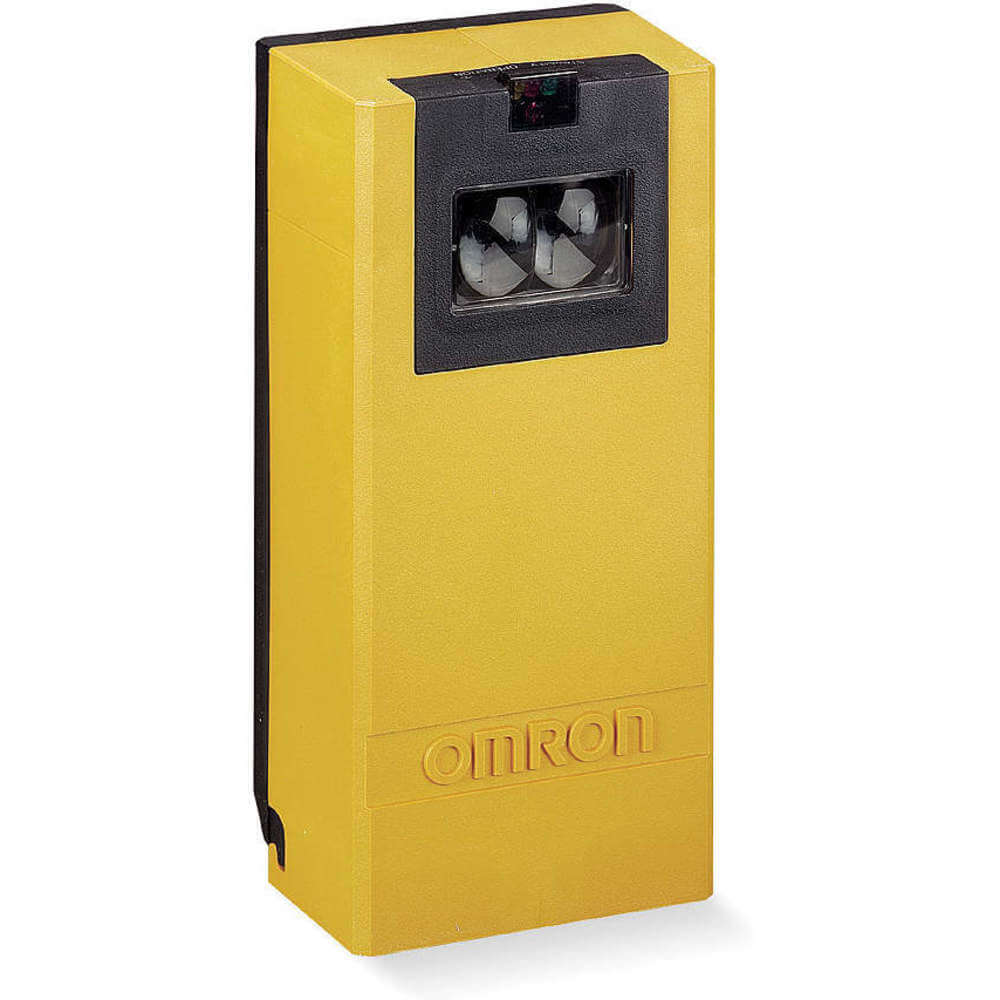

OMRON E3KR10K4 Photoelectric Sensor 32.8 Feet Dpdt
Item: AB8WGPModel: E3KR10K4Cross Ref: 2A183
7 In Stock
Ships within 2 days via
10.00% off
€575.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Photoelectric Sensor |
| Ac Supply Voltage Rating | 24-240V AC |
| Body Material | Plastic |
| Circuit Type | DPDT |
| Cylindrical Sensor Dims. (d X L) | 185 mm |
| Dc Supply Voltage Rating | 24-240V DC |
| Depth | 64 mm |
| Display Qty | 1 |
| Electrical Connection | Screw Terminal |
| Electrical Installation Type | Terminal Block |
| Features | Hygienic |
| Height | 185 mm |
| Includes Indicator Lights | Indicator Lights Included |
| Ip Rating | IP67 |
| Length | 7.3" |
| Light Source | Red, Green and Yellow LED |
| Load Current - Maximum | 10 mA |
| Max. Load Amps | 10A |
| Max. Load Current | 10 A |
| Max. Sensing Distance | 10m |
| Max. Sensing Distance | 32.8 ft. |
| Nema Enclosure Rating | NEMA 1, NEMA 12, NEMA 3, NEMA 4, NEMA 4X |
| Nema Rating | NEMA 1, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Operating Temp. Range | -25°C to +55°C |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -13°F |
| Operation Mode | Selectable Light On/Dark On |
| Output Circuit | Electromechanical Relay |
| Output Circuit Contact Form | DPDT |
| Output Circuit Type | Relay |
| Overall Height | 185 mm |
| Overall Width | 89 mm |
| Product Type | Photoelectric Sensor |
| Response Time | 30 ms |
| Sensing Method | Retroreflective |
| Sensor Body Style | Rectangular |
| Sensor Diameter | 64 mm |
| Sensor Face Orientation | Right Angle |
| Sensor Switching Mode | Selectable Light On/Dark On |
| Series | E3K Series |
| Shape | Rectangular |
| Standards | Csa, Ul Listed |
| Supply Voltage | 24-240V AC/24-240V DC |
| Supply Voltage Type | Ac, Dc |
| Width | 89 mm |
Shipping Info:
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 21.34 |
| Ship width (cm) | 9.4 |
| HS code | 8541408000 |
| Country of Origin | CN |
Product Variants
| Product | Model | Ip Rating | Nema Rating | Height | Depth | Circuit Type | Electrical Connection | Max. Sensing Distance | Sensing Method | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

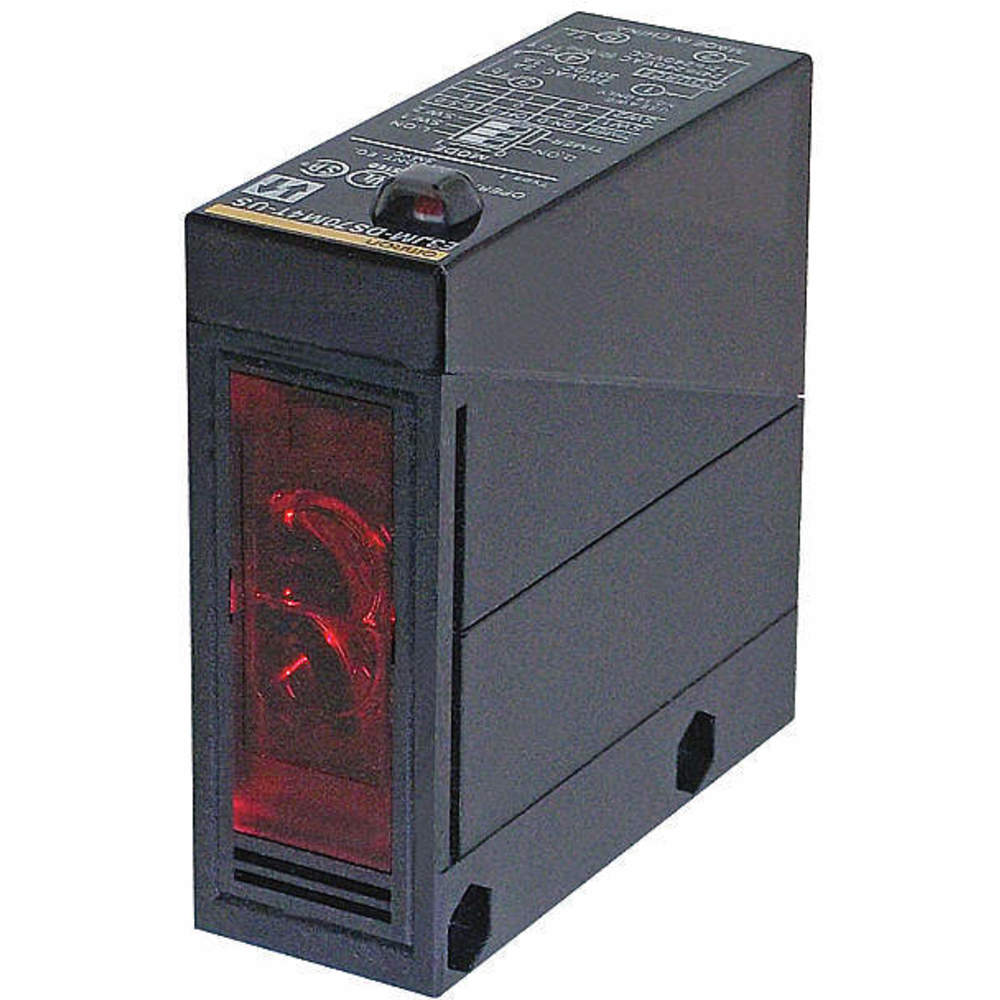

E3JMDS70M4TUS | IP66 | IP66 | 75 mm | 67 mm | Relay | Terminal Block | 700 mm | Diffuse | €526.62 |
