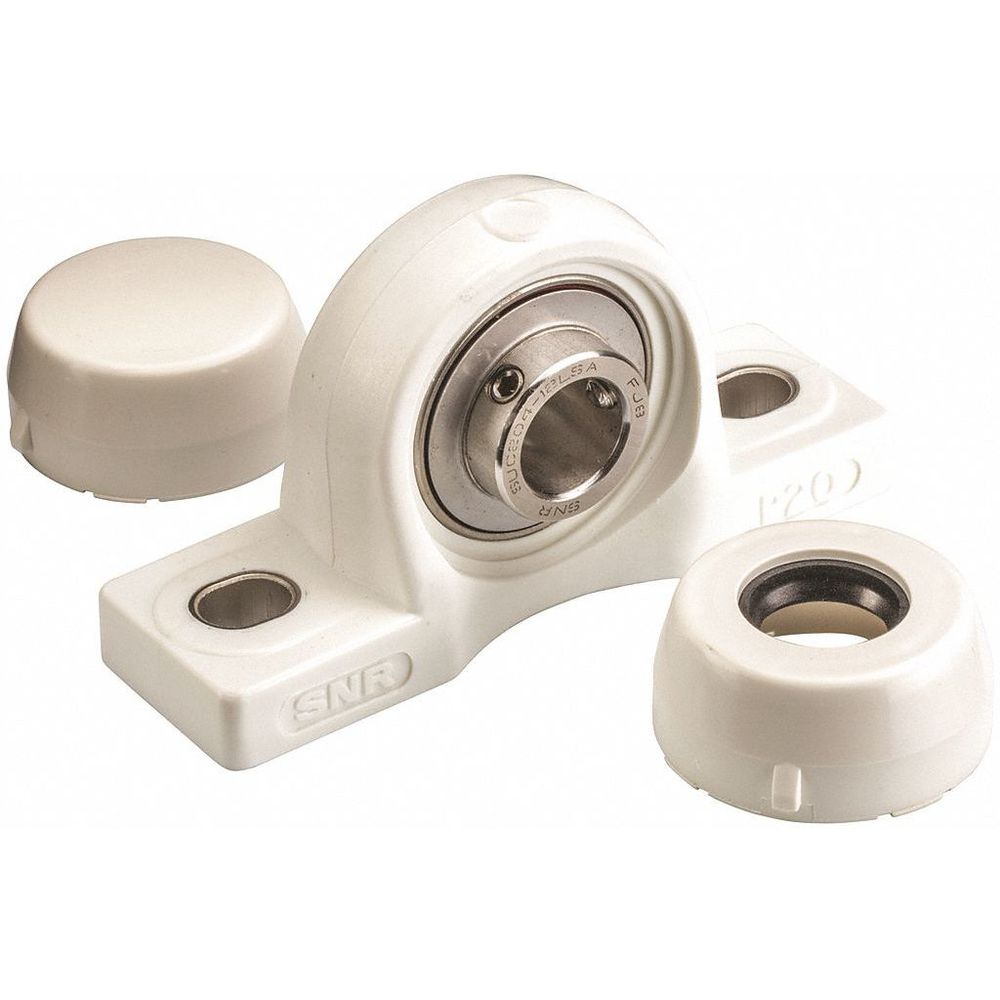

NTN SUCPPL207-23CCFG1 Pillow Block Bearing, No. of Bolts 2, 1-7/16 Inch Bore Dia.
Item: CD2HXHModel: SUCPPL207-23CCFG1Cross Ref: 406U32
7 In Stock
Ships within 2 days via
13.00% off
€609.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pillow Block Bearing |
| Base Height | 0.708" |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bolt Size | 1/2" |
| Bore Dia. | 1 7/16" , 1.437" |
| Bore Type | Round |
| Closure | Double Sealed |
| Dynamic Load Capacity | 4520 lbs. |
| Dynamic Radial Load Capacity | 4945 lbf. |
| Finish | Plain |
| Grade | Grade 440C |
| Housing Material | Polymer |
| Housing Material Finish | Unfinished |
| Housing Material Grade | PBT |
| Included | Open End Cap And Closed End Cap |
| Inner Ring Width | 1.688" |
| Insert Material | Stainless Steel |
| Insert Type | Ball |
| Lock Type | Set Screw |
| Locking Device | Set Screw |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Max. Temp. | 212°F |
| Min. Temp. | -4°F |
| Mount Hole Center To Center Length | 5" |
| Mount Hole Size | 0.551" |
| Mounting Bolt Size | 1/2" |
| Mounting Hole Center To Center | 5" |
| Mounting Surface To Shaft Center | 1 7/8" |
| Mounting Surface To Shaft Center Height | 1 55/64" |
| Mounting Type | Bolt Through |
| No. Of Bolts | 2 |
| No. Of Mount Holes | 2 |
| Overall Height | 3.687" |
| Overall Length | 6.562" |
| Overall Width | 1 7/8" |
| Resistance Properties | Corrosion Resistant |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Load Capacity | 3510 lbs. |
| Static Radial Load Capacity | 2765 lbf. |
| Temp. | +14°F to +212°F |
Shipping Info:
| Ship weight (kg) | 0.91 |
| Ship height (cm) | 9.36 |
| Ship length (cm) | 16.67 |
| Ship width (cm) | 4.76 |
Product Variants
| Model | Housing Material | Bore Dia. | Overall Height | Dynamic Load Capacity | Overall Width | Bolt Size | Finish | Static Load Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SUCPPL204-12CCFG1 | Polymer | 3/4" | 2.546" | 2270 lbs. | 1.484" | 3/8" | Plain | 1530 lbs. | €420.16 | |
| SUCPPL205-16CCFG1 | Polymer | 1" | 2.781" | 2470 lbs. | 1.484" | 3/8" | Plain | 1800 lbs. | €515.75 | |
| SUCPPL206-19CCFG1 | Polymer | 1.187" | 3.265" | 3440 lbs. | 1.796" | 1/2" | Plain | 2590 lbs. | €573.68 | |
| SUCPPL207-20CCFG1 | Polymer | 1 1/4" | 3.687" | 4520 lbs. | 1 7/8" | 1/2" | Plain | 3510 lbs. | €700.19 | |
| SUCPPL208-24CCFG1 | Polymer | 1 1/2" | 3.843" | 5130 lbs. | 2 1/8" | 1/2" | Plain | - | €763.11 | |

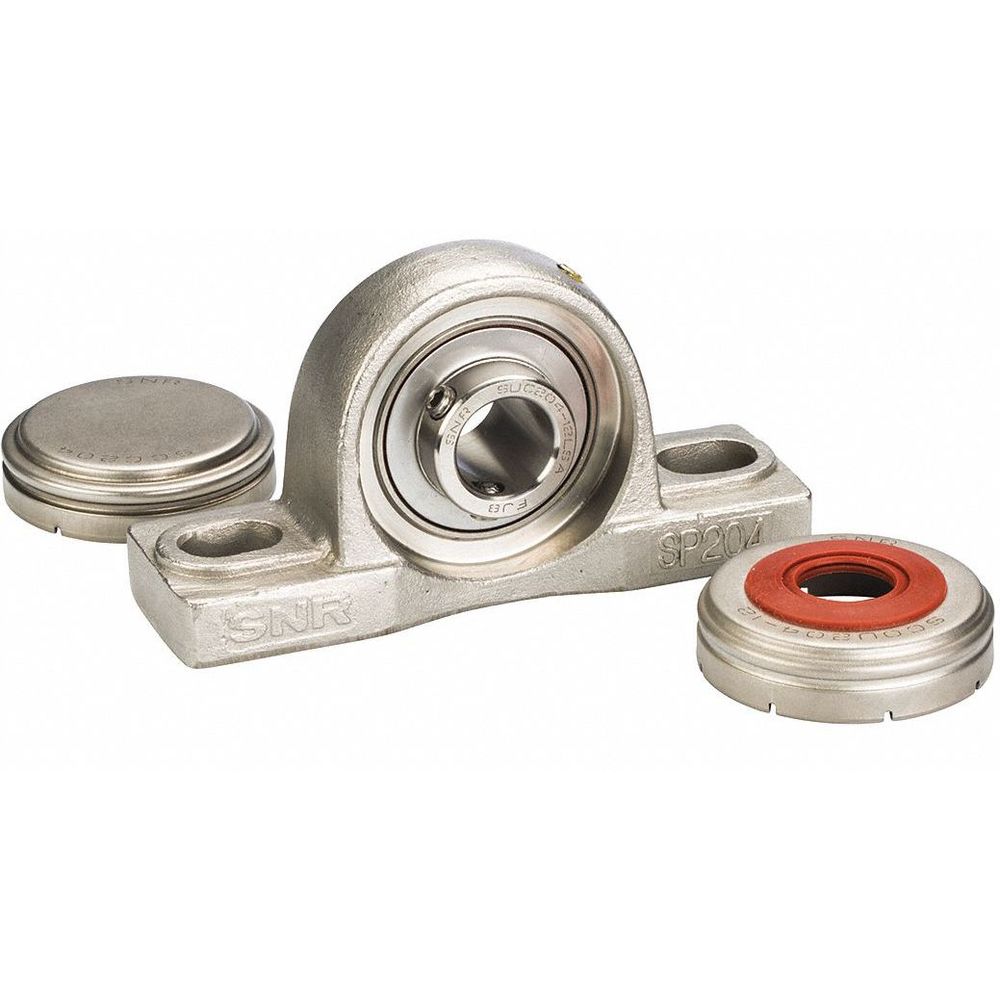

| SUCP205-16CCFG1 | Stainless Steel | 1" | 2.755" | 2470 lbs. | 1.862" | 3/8" | Unfinished | 1800 lbs. | €628.08 | |
| SUCP207-20CCFG1 | Stainless Steel | 1 1/4" | 3.7" | 4520 lbs. | 2.318" | 1/2" | Unfinished | 3510 lbs. | €882.65 |
