NTN SUCFB207 Flange Bearing, 3 Bolt, 35 mm Bore, Ss, Set Screws, 90 mm Lg, 44.4 mm Wd
Item: CT4GKXModel: SUCFB207Cross Ref: 55PD28
7 In Stock
Ships within 2 days via
13.00% off
€653.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bearing |
| Application | Food And Beverage |
| Back Side To Center Width | 19 mm |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Dia. | 35 mm |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Dynamic Load Capacity | 20100N |
| Expansion Type | Fixed |
| Flange Thickness | 12.7 mm |
| Grade | Grade 440C |
| Housing Material | Stainless Steel |
| Housing Material Finish | Unfinished |
| Housing Material Grade | Grade 440C |
| Housing Type | Flange Bracket |
| Included | (3) Set Screws |
| Included Bearing Cap | None |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Lubrication Openings | One Zirc Fitting |
| Max. Speed | 3700 RPM |
| Max. Temp. | 120°C |
| Min. Temp. | -20°C |
| Mount Hole Center To Center Height | 50.8 mm |
| Mount Hole Center To Center Length | 50.8 mm |
| Mount Hole Size | 13.5 mm |
| Mounting Bolt Size | M10 |
| No. Of Mounting Holes | 3 |
| Overall Height | 152.2 mm |
| Overall Length | 90 mm |
| Overall Width | 44.4 mm |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screw |
| Static Radial Load Capacity | 15600N |
Shipping Info:
| Ship weight (kg) | 1.43 |
| Ship height (cm) | 15.22 |
| Ship length (cm) | 9 |
| Ship width (cm) | 4.44 |
Product Variants
| Product | Model | Bore Dia. | Insert Material | Housing Material | Overall Height | Overall Width | Dynamic Load Capacity | Bearing Insert Material | Bolt Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

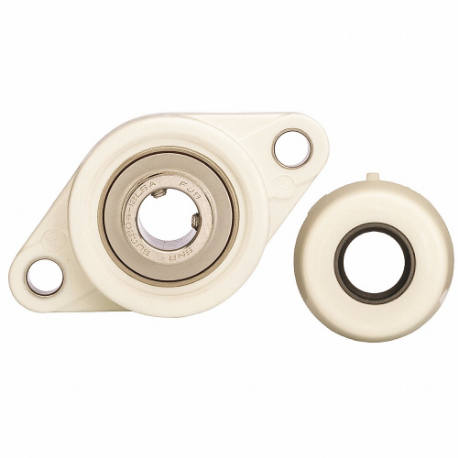

SUCNFL208-24C0FG1 | 1 1/2" | Stainless Steel | Polymer | 3 15/16" | 2 51/64" | 5126 lbf. | Stainless Steel | - | €667.79 | |
 |
SUCFL208-24C0FG1 | 1 1/2" | Stainless Steel | Stainless Steel | 3 59/64" | 2 1/32" | 5125 lbf. | Stainless Steel | - | €916.65 | |
|
SUCNFL206-20C0FG1 | 1 1/4" | Stainless Steel | Polymer | 3 9/64" | 2 1/4" | 3440 lbf. | Stainless Steel | - | €523.65 | |
 |

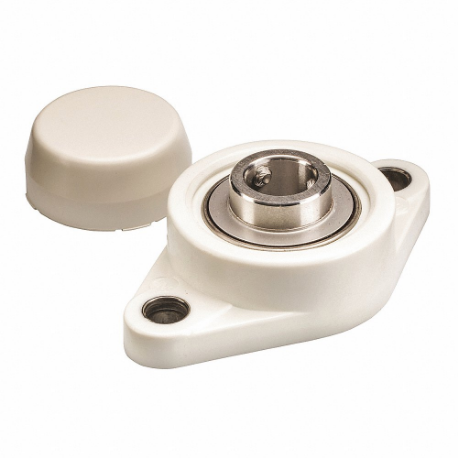

SUCNFL206-20CCFG1 | 1 1/4" | Stainless Steel | Polymer | 3 9/64" | 2 1/4" | 3440 lbf. | Stainless Steel | - | €537.81 | |
|
SUCNFL207-20C0FG1 | 1 1/4" | Stainless Steel | Polymer | 3 17/32" | 2 27/64" | 4519 lbf. | Stainless Steel | - | €581.75 | |
 |

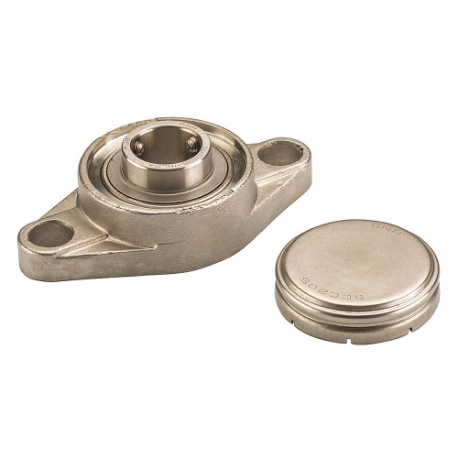

SUCFL207-20CCFG1 | 1 1/4" | Stainless Steel | Stainless Steel | 3 33/64" | 1 3/4" | 4510 lbf. | Stainless Steel | 1/2" | €855.53 | |
|
SUCFL207-20C0FG1 | 1 1/4" | Stainless Steel | Stainless Steel | 3 33/64" | 1 3/4" | 4510 lbf. | Stainless Steel | - | €812.18 |
