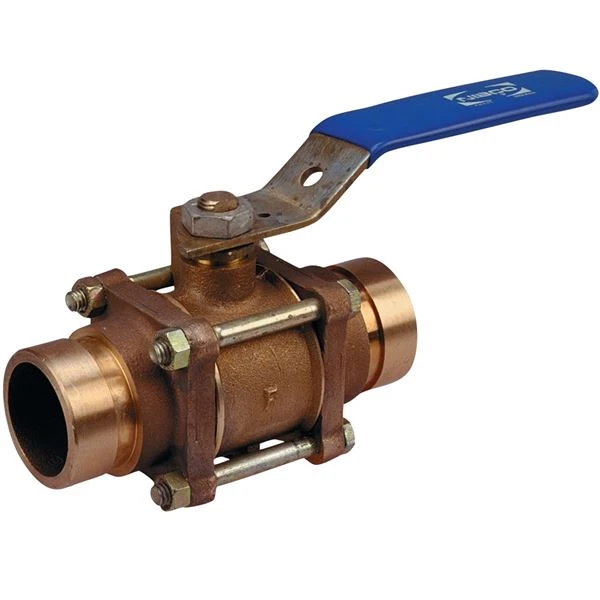

NIBCO NJ8700D G-595-Y Three Piece Ball Valve, Grooved, 2 Inch Size, Cast Bronze
Get it by Thursday, Dec 18
€815.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Body Type | Three Piece |
| Ball Finish | Chrome Plated |
| Ball Material | Bronze |
| Ball Operator | CS Standard Lever Handle |
| Ball Port Style | Full Port |
| Ball Stem Material | Bronze |
| Body Material | Bronze |
| Cold Working Pressure | 41.4 Bar |
| Connection Type | Groove |
| End Connection Type | G Grooved |
| Flow Coefficient | 245 |
| Height | 4" |
| Length | 10.01" |
| Nominal Pipe Size | 2" |
| Operation Type | CS Standard Lever Handle |
| Potable Water Code | Not Ll Compliant Not Intend Potable |
| Pressure Rating (cwp) | 600 psi CWP |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Seat/seal Material | PTFE |
| Series | G-595-Y Series |
| Stem Material | Silicon Bronze |
| Trim Package | Bronze |
| Turns/operation | Quarter Turn |
| Type | Ball Valve |
| Type Of Valve | Ball |
| Valve Ball Body Type | Three Piece |
| Valve Ball Port Style | Full Port |
| Valve Size | 2" |
| Width | 5.63" |
Shipping Info:
| Ship weight (kg) | 4.72 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 25.43 |
| Ship width (cm) | 14.3 |
| Country of Origin | US |
