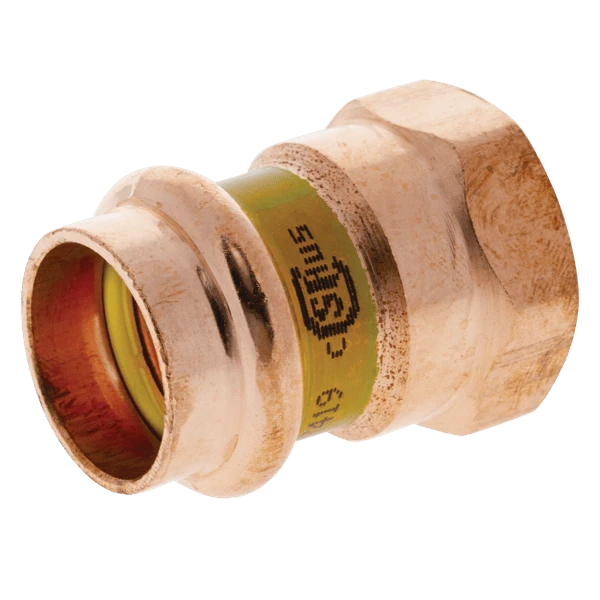

NIBCO 9024650HPC PCH603 Adapter, Press x FNPT, 1/2 Inch Size, Wrot Copper
Item: CP2HEXModel: 9024650HPCCross Ref: 787WY6 / PCH603
7 In Stock
Ships within 2 days via
10.00% off
€7.41 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Adapter |
| Application | Natural Gas, Non-Potable Water, Propane |
| Compatible Copper Tube Type | Type G, Type K, Type L |
| Compatible Tube Material | Copper |
| Fitting Material | Copper |
| Fitting Side A Connection Type | Press Fit |
| Fitting Side A Copper Tube Size | 1/2" |
| Fitting Side A Tube Outer Diameter | 1/2" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Copper Tube Size | 1/2" |
| Fitting Side B Pipe Size | 1/2" |
| Fitting Side B Tube Outer Diameter | 1/2" |
| Includes Center Stop | No Center Stop |
| Max. Operating Pressure | 200 psi |
| Maximum Operating Temperature | 180°F |
| Minimum Operating Temperature | -40°F |
| O-ring Material | HNBR |
| Overall Length | 1 15/32" |
| Specific Fitting Shape | Straight Adapter |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 3.73 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Fitting Side A Copper Tube Size | Overall Length | Fitting Side A Tube Outer Diameter | Fitting Side B Tube Outer Diameter | Fitting Side B Copper Tube Size | Specific Fitting Shape | Fitting Material | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9025900HPC | 1 1/2" | 2.438" | 1 1/2" | 1 1/2" | 1 1/2" | Straight Adapter | Copper | 200 psi | €91.91 | |
| 9025550HPC | 1 1/4" | 2.062" | 1 1/4" | 1 1/4" | 1 1/4" | Straight Adapter | Copper | 200 psi | €64.78 | |
| 9025250HPC | 1" | 1 13/16" | 1" | 1" | 1" | Straight Adapter | Copper | 200 psi | €26.04 | |
| 9026150HPC | 2" | 2 1/2" | 2" | 2" | 2" | Straight Adapter | Copper | 200 psi | €123.29 | |
| 9024950HPC | 3/4" | 1 23/32" | 3/4" | 3/4" | - | Straight Adapter | Copper | 200 psi | €14.59 | |
| 9024805HPC | 1/2" | 1 11/32" | 1/2" | 3/8" | 3/8" | Straight Adapter | Copper | 200 psi | €26.43 |
