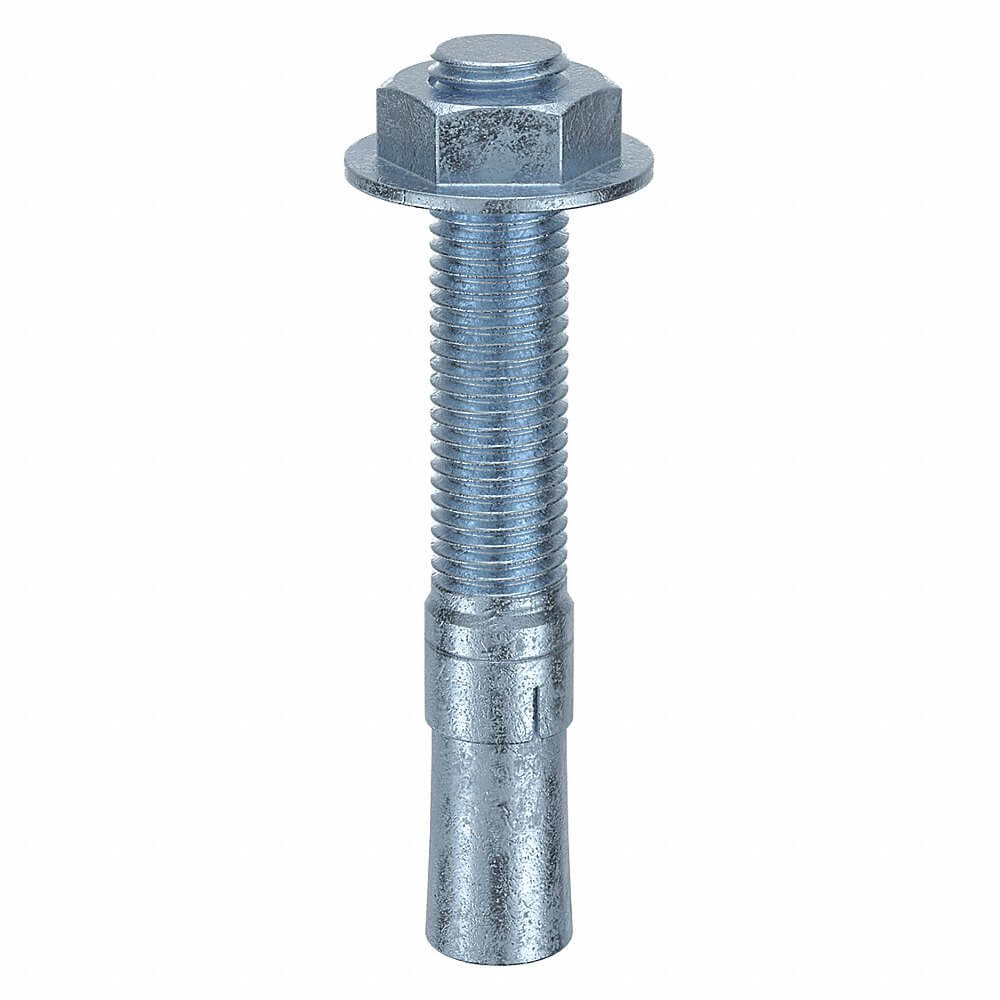

MKT FASTENING 2678600 Wedge Anchor, 7/8 In - 9 Thread Size, 6 In Anchor Lg., 3 1/2 In Thread Lg., 7/8 In Anchor Dia., 2 In Max. Work Thk., 4 In Min. Embdmnt.
Item: AB6KKVModel: 2678600Cross Ref: 21U904
7 In Stock
Ships within 2 days via
10.00% off
€69.71 /pkg. of 4
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 7/8" |
| Anchor Diameter | 7/8" |
| Anchor Length | 6" |
| Compatible Material | Concrete |
| Display Qty | 4 |
| Drill Bit Size | 7/8" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5 |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Work Thickness | 2" |
| Maximum Installation Torque | 225 lbs.-ft. |
| Maximum Material Thickness | 1 1/8" |
| Maximum Ultimate Shear Strength | 21574 lbs. |
| Maximum Ultimate Tension Strength | 13902 lbs. |
| Min. Embedment | 4" |
| Minimum Installation Depth | 4" |
| Minimum Installation Torque | 125 lbs.-ft. |
| Minimum Material Thickness | 6" |
| Nut Width | 1.3125" |
| Overall Length | 6" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 3 1/2" |
| Thread Size | 7/8"-9 |
| Ultimate Pullout (lb.) | 13902 |
| Ultimate Shear | 21574 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 21574 lbs. |
| Ultimate Tension | 13902 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 9746 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 13902 lbs. |
| Washer Outside Diameter | 1.75" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 2.09 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 26.67 |
| Ship width (cm) | 7.87 |
| HS code | 7316000000 |
| Country of Origin | US |
