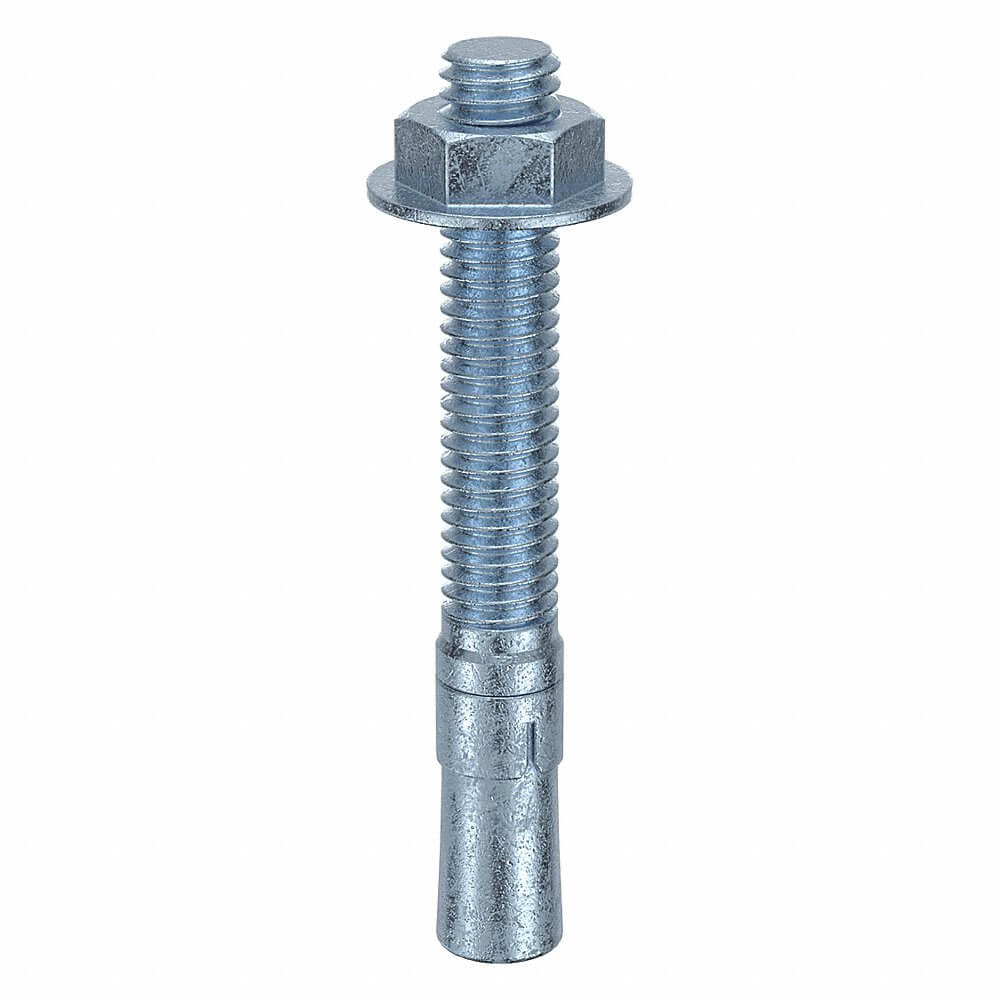

MKT FASTENING 2638300 Wedge Anchor, 3/8 In - 16 Thread Size, 3 In Anchor Lg., 1 7/8 In Thread Lg., Gr. 2
Item: AB6KJWModel: 2638300Cross Ref: 21U881
7 In Stock
Ships within 2 days via
5.00% off
€31.03 /pkg. of 20
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 3/8" |
| Anchor Diameter | 3/8" |
| Anchor Length | 3" |
| Compatible Material | Concrete |
| Display Qty | 20 |
| Drill Bit Size | 3/8" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Fm Approved, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Work Thickness | 1 3/8" |
| Maximum Installation Torque | 30 lbs.-ft. |
| Maximum Material Thickness | 1" |
| Maximum Ultimate Shear Strength | 3151 lbs. |
| Maximum Ultimate Tension Strength | 2289 lbs. |
| Min. Embedment | 1 5/8" |
| Minimum Installation Depth | 1 5/8" |
| Minimum Installation Torque | 15 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Nut Width | 0.5625" |
| Overall Length | 3" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 1 7/8" |
| Thread Size | 3/8"-16 |
| Ultimate Pullout (lb.) | 2289 |
| Ultimate Shear | 3151 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 3151 lbs. |
| Ultimate Tension | 2289 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 2289 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 2367 lbs. |
| Washer Outside Dia. | 0.812" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.86 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 11.68 |
| HS code | 7316000000 |
| Country of Origin | US |
