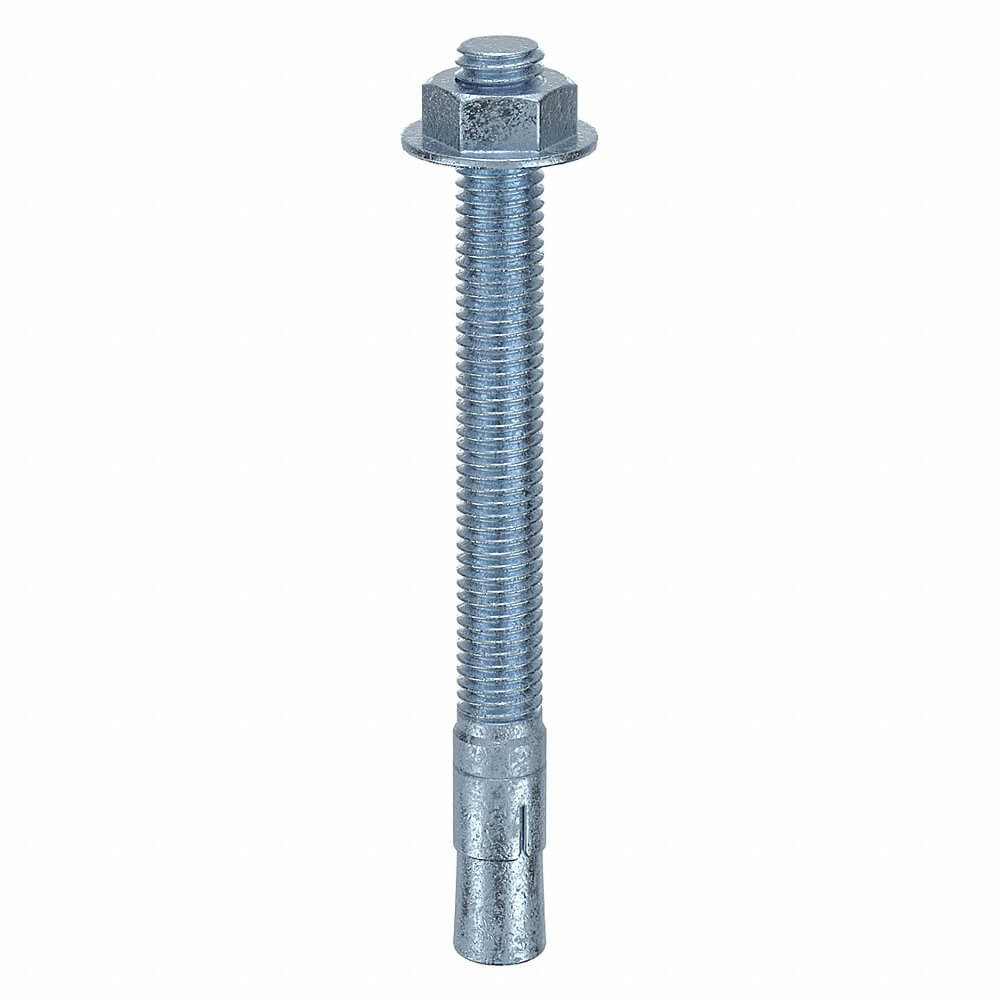

MKT FASTENING 2612512 Wedge Anchor, 1/2 In - 13 Thread Size, 5 1/2 In Anchor Lg., 4 In Thread Lg., Gr. 2
Item: AB6KKCModel: 2612512Cross Ref: 21U887
7 In Stock
Ships within 2 days via
€22.33 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 1/2" |
| Anchor Length | 5 1/2" |
| Compatible Material | Concrete |
| Display Qty | 10 |
| Drill Bit Size | 1/2" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Included | Nut And Washer |
| Industry Standards | Fm Approved, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Installation Torque | 50 lbs.-ft. |
| Max. Material Thickness | 2 3/4" |
| Max. Ultimate Shear Strength | 6828 lbs. |
| Max. Ultimate Tension Strength | 5772 lbs. |
| Max. Work Thickness | 1" |
| Min. Embedment | 2 1/4" |
| Min. Installation Depth | 2 1/4" |
| Min. Installation Torque | 25 lbs.-ft. |
| Min. Material Thickness | 4" |
| Nut Width | 3/4" |
| Overall Length | 5 1/2" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 4" |
| Thread Size | 1/2"-13 |
| Ultimate Pullout (lb.) | 5772 |
| Ultimate Shear | 6828 lbs. |
| Ultimate Shear Strength 4000 Psi Concrete | 6828 lbs. |
| Ultimate Tension | 5772 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 4608 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 5772 lbs. |
| Washer Outside Dia. | 1.062" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.33 |
| Ship height (cm) | 2.29 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 13.21 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Thread Size | Anchor Length | Anchor Dia. | Finish | Seismic Approved | Icc Approved For Cracked Concrete | Min. Embedment | Max. Work Thickness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2614134 | 1/4"-20 | 1 3/4" | 1/4" | Zinc Plated | No | No | 1 1/8" | 5/8" | 20 | €16.36 | |
 |
2614214 | 1/4"-20 | 2 1/4" | 1/4" | Zinc Plated | No | No | 1 1/8" | 1 1/8" | 20 | €18.12 | |
 |
2638214 | 3/8"-16 | 2 1/4" | 3/8" | Zinc Plated | No | No | 1 5/8" | 5/8" | 20 | €19.23 | |
 |
2638234 | 3/8"-16 | 2 3/4" | 3/8" | Zinc Plated | No | No | 1 5/8" | 1 1/8" | 20 | €22.84 | |
 |
2638300 | 3/8"-16 | 3" | 3/8" | Zinc Plated | No | No | 1 5/8" | 1 3/8" | 20 | €26.22 | |
 |
2638334 | 3/8"-16 | 3 3/4" | 3/8" | Zinc Plated | No | No | 1 5/8" | 2 1/8" | 20 | €28.14 | |
 |
2638500 | 3/8"-16 | 5" | 3/8" | Zinc Plated | No | No | 1 5/8" | 3 3/8" | 20 | €33.94 |
