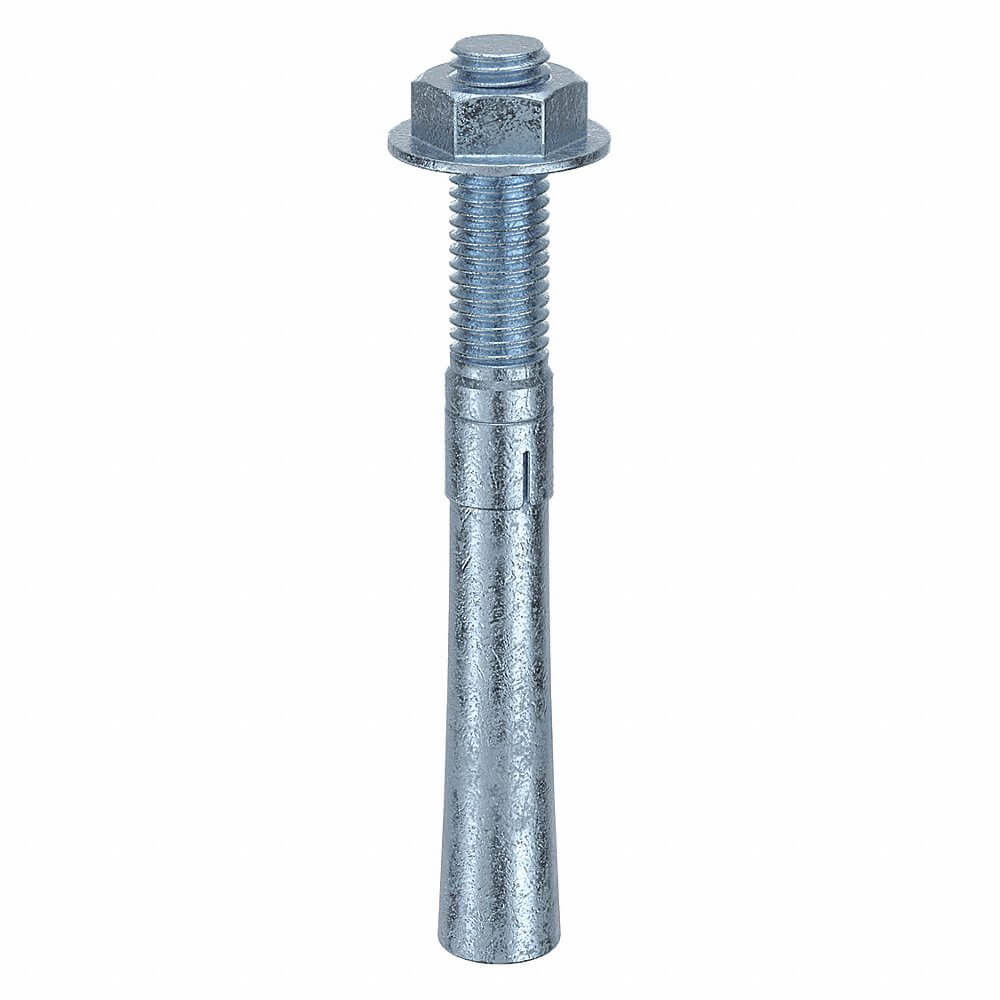

MKT FASTENING 2158600 Seismic Wedge Anchor, 5/8 In - 11 Thread Size, 6 In Anchor Lg., 2 In Thread Lg., Gr. 2
Item: AB6KRPModel: 2158600Cross Ref: 21V023
7 In Stock
Ships within 2 days via
10.00% off
€45.89 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Seismic Wedge Anchor |
| Anchor Dia. | 5/8" |
| Anchor Diameter | 5/8" |
| Anchor Length | 6" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 5/8" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | Yes |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Icc Esr-2461 |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Work Thickness | 1 1/2" |
| Maximum Installation Torque | 65 lbs.-ft. |
| Maximum Material Thickness | 1 1/2" |
| Min. Embedment | 3 1/4" |
| Minimum Installation Depth | 3 1/4" |
| Minimum Installation Torque | 65 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 6" |
| Seismic Approved | Yes |
| System Of Measurement | Imperial |
| Thread Length | 1 1/2" |
| Thread Size | 5/8"-11 |
| Ultimate Shear Strength At 4000 Psi | 14859 lbs. |
| Ultimate Tension Strength (4,000 Psi Concrete) | 9603 lbs. |
| Washer Outside Diameter | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.15 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 15.49 |
| Ship width (cm) | 12.7 |
| HS code | 7316000000 |
| Country of Origin | DE |
