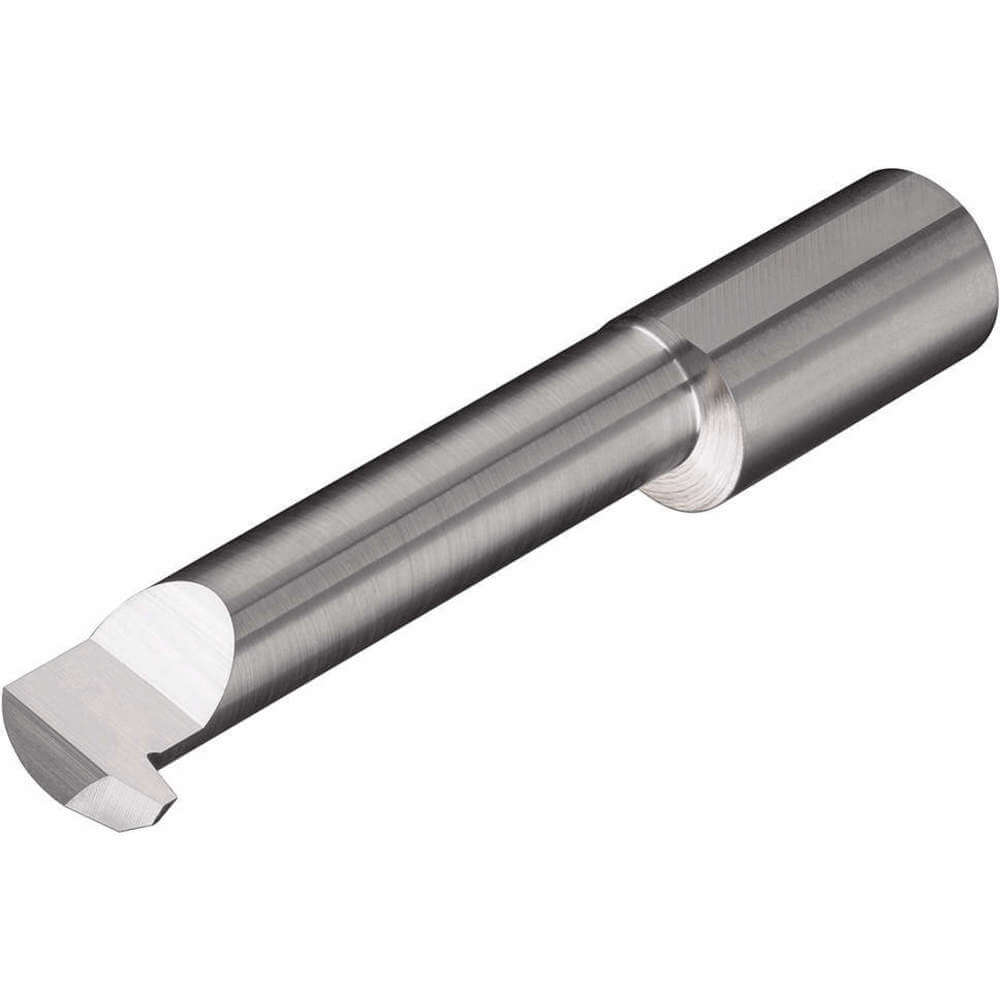

MICRO 100 SAT-2000-9 Threading Tool, 2 Inch Max. Bore Depth, 0.042 Inch Flat, 0.052 Inch Point Offset
Item: AA7WETModel: SAT-2000-9Cross Ref: 16T246
7 In Stock
Ships within 2 days via
10.00% off
€132.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Threading Tool |
| Center To Cutting Tip | 0.24" |
| Cutter Material | Carbide |
| Cutting Application | Threading |
| Cutting Direction | Right Hand |
| Features | Polished Split Face For Improved Edge Retention And Chip Evacuation While Reducing Galling, Split Geometry Makes The Tool As Rigid As Possible |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Flat Width | 0.042" |
| Head Width | 0.49" |
| Hole Dia. | 0.49" |
| Included Angle | 29° |
| Max. Bore Depth | 2" |
| Max. Depth | 2" |
| Max. Hole Depth | 2" |
| Max. Threads Per Inch | 9 |
| Min. Bore Dia. | 0.512" |
| Min. Hole Dia. | 0.49" |
| Offset Point | 0.052" |
| Overall Length | 3" |
| Product Datasheet | micro-100-iat-1000-12.pdf |
| Projection | 0.12" |
| Shank Dia. | 1/2" |
| Shank Material | Carbide |
| Shank Type - Machining | Straight With Three Flats |
| Style | Stub Acme Threading Tool |
| System Of Measurement | Imperial |
| Thread Direction | Right Hand |
| Thread Standard | Stub ACME |
| Threads Per Inch | 9 |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 1.27 |
| Ship length (cm) | 7.62 |
| Ship width (cm) | 1.27 |
| HS code | 8209000030 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Shank Dia. | Hole Dia. | Projection | Overall Length | Max. Depth | Offset Point | Flat Width | Max. Hole Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| SAT-1000-12 | 3/8" | 9/25" | 0.085" | 2 1/2" | 1" | 0.051" | 0.033" | 1" | €104.97 | |
| SAT-1000-14 | 5/16" | 0.235" | 0.07" | 2 1/2" | 1" | 0.045" | 0.028" | 1" | €79.70 | |
| SAT-1000-16 | 1/4" | 1/5" | 0.045" | - | 1" | 0.024" | 0.024" | 1" | €64.36 | |
| SAT-1250-12 | 3/8" | 9/25" | 0.085" | 2 1/2" | 1 1/4" | 0.051" | 0.033" | 1 1/4" | €104.97 | |
| SAT-1500-10 | 1/2" | 0.49" | 0.12" | 3" | 1 1/2" | 1/16" | 0.037" | 1 1/2" | €147.25 | |
| SAT-1500-5 | 1/2" | 0.49" | 0.12" | 3" | 1 1/2" | 0.083" | 0.079" | 1 1/2" | €147.25 | |
| SAT-1500-8 | 1/2" | 0.49" | 0.12" | 3" | 1 1/2" | 0.068" | 0.048" | 1 1/2" | €147.25 |
