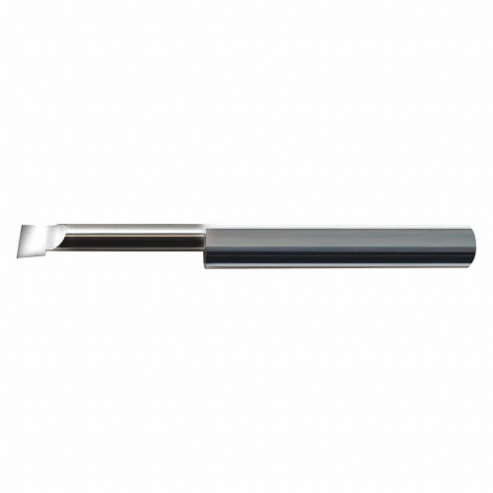

MICRO 100 BB-2001100 Boring Bar, 0.20 Inch Head Width, 1.1 Inch Max. Bore Depth, 0.006 Inch Radius, UN Coat
Item: AA7BEAModel: BB-2001100Cross Ref: 15R966
7 In Stock
Ships within 2 days via
10.00% off
€47.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Boring Bar |
| Application | Boring |
| Bore Depth | 1.1" |
| Bore Dia. | 1/5" |
| Boring Bar Type | Boring |
| Center To Cutting Tip | 0.075" |
| Cutting Application | Boring |
| Cutting Direction | Right Hand |
| Features | Corner Radius Profile, Split Geometry |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Groove Width | 0.15" |
| Head Width | 1/5" |
| Max. Bore Depth | 1.1" |
| Min. Bore Dia. | 0.216" |
| Neck Dia. | 0.15" |
| Offset Point | 0.075" |
| Overall Length | 2 1/2" |
| Product Datasheet | micro-100-bb-050150.pdf |
| Projection | 0.05" |
| Radius | 0.005" to 0.008" |
| Shank Dia. | 1/4" |
| Shank Material | Carbide |
| Shank Type - Machining | Straight With Three Flats |
| Side Cutting Edge Angle | 6° |
| Split Length | 0.175" |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 1.11 |
| Ship length (cm) | 6.99 |
| Ship width (cm) | 1.11 |
| HS code | 8207600061 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Radius | Center To Cutting Tip | Shank Dia. | Finish | Min. Bore Dia. | Projection | Offset Point | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BB-050150 | 0.003" | -0.013" | 1/8" | Uncoated | 0.055" | 0.012" | -0.013" | 1 1/2" | €46.00 | |
| BB-050200 | 0.003" to 0.005" | -0.013" | 1/8" | Tin Coated | 0.055" | 0.012" | -0.013" | - | €46.00 | |
| BB-050200G | 0.003" to 0.005" | -0.013" | 1/8" | Uncoated | 0.055" | 0.012" | -0.013" | - | €50.39 | |
| BB-050300 | 0.003" to 0.005" | -0.013" | 1/8" | Uncoated | 0.055" | 0.012" | -0.013" | 1 1/2" | €47.31 | |
| BB-050300G | 0.003" to 0.005" | -0.013" | 1/8" | Tin Coated | 0.055" | 0.012" | -0.013" | - | €50.39 | |
| BB-050400 | 0.003" to 0.005" | -0.013" | 1/8" | Uncoated | 0.055" | 0.012" | -0.013" | - | €46.00 | |
| BB-050400G | 0.003" to 0.005" | -0.013" | 1/8" | Tin Coated | 0.055" | 0.012" | -0.013" | 1 1/2" | €50.39 |
