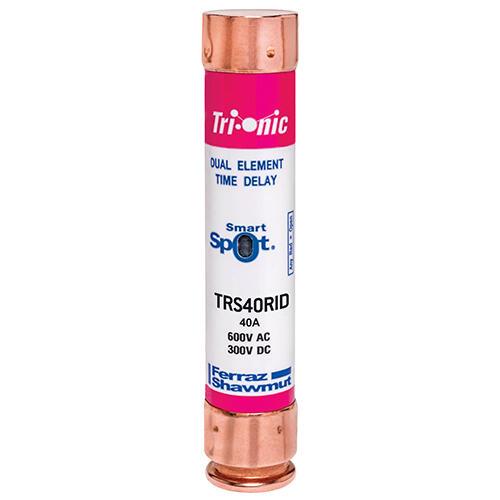

MERSEN FERRAZ TRS40RID Time Delay Fuse, 600V, 40A, Class RK5
Item: CH6CHXModel: TRS40RIDCross Ref: 4YZW8
7 In Stock
Ships within 2 days via
10.00% off
€42.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 40A |
| Body Material | Polyester |
| Body Style | Cylindrical |
| Body/insulating Material | Polytube |
| Class | Class RK5 |
| Compatible Fuse Block Series | 2Hkrfb, 6Hkrfb |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | 300V DC |
| Diameter | 27 mm |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Frs-R-Id, Littelfuse Flsr-Id, Mersen Trs-Rid |
| Equivalent Series | Flsr-Id, Frs-R-Id, Trs-Rid |
| Fits Fuse Block Style | Rejection |
| Frequency | 50/60 Hz |
| Fuse Class | Class RK5 |
| Fuse Size | 5 1/2" x 1 1/16" |
| Indication System | Yes |
| Indication System Type | Smartspot |
| Interrupt Rating | 200 kA at 600V AC, 20 kA at 300V DC |
| Length | 139.7 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-tr110r.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 300V |
| Series | TRS-RID Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Standards | Csa, Ul |
| Visual Indication | Indicating |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 14.27 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 5.56 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Diameter | Body Material | Body Style | Visual Indication | Dc Voltage Rating | Dc Voltage | Fuse Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TRS110R | 110A | 1 13/16" | Polyester | Blade | Non Indicating | 600V DC | - | - | €141.41 | |
 |
TRS125R | 125A | 46.1 mm | Polyester | Blade | Non Indicating | 600V DC | - | - | €152.17 | |
|
TRS12R | 12A | 13/16" | Polyester | Cylindrical | Non Indicating | 600V DC | - | - | €19.33 | |
 |
TRS15/100R | 15/100A | 20.7 mm | Polyester | Cylindrical | Non Indicating | 600V DC | - | - | €46.62 | |
|
TRS150R | 150A | 1 13/16" | Polyester | Blade | Non Indicating | 600V DC | - | - | €161.84 | |
 |
TRS3/10R | 3/10A | 20.7 mm | Polyester | Cylindrical | Non Indicating | 600V DC | - | - | €44.05 | |
|
TRS300R | 300A | 2 9/16" | Polyester | Blade | Non Indicating | 600V DC | - | - | €335.47 |
