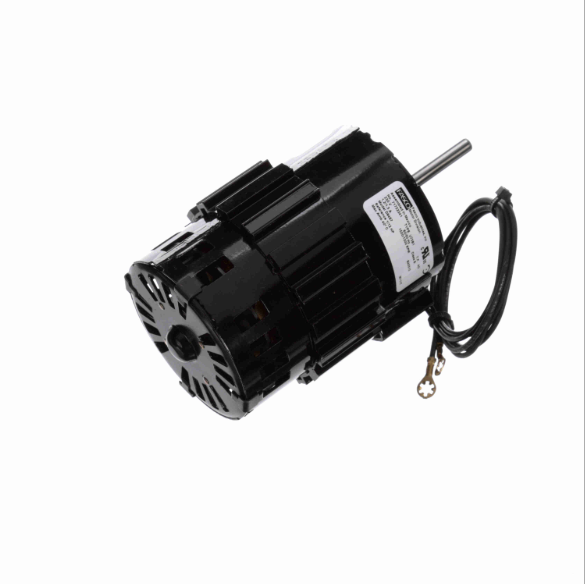

FASCO D9487 Condenser Fan Motor, Tecumseh Oem Repl, 1/12 Hp, 1, 500 Nameplate Rpm, 230VAC | CP4XMK 48GP13

FASCO D9487 Condenser Fan Motor, Tecumseh Oem Repl, 1/12 Hp, 1, 500 Nameplate Rpm, 230VAC

Item: CP4XMKModel: D9487Cross Ref: 48GP13
7 In Stock

Ships within 2 days via

€378.34
10.00% off
€340.50 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Condenser Fan Motor
Ambient Temp. 40°C
Amps 1.2/1.3A
Bearing Type Sleeve
Body Dia. 3 2/5"
Capacitor Required No
Drive End Bearing Sleeve
Duty Air Over
Duty Cycle Continuous
Electrical Type Shaded Pole
Frame 3.3
Frame Length 4.58"
Frame Material Steel
Frequency 60 Hz
Full Load Amps 1.2/1.3A
Hp 1/12 hp
Ins. Class Class B
Insulation Class Class B
Length 6.98"
Length Less Shaft 4 13/16"
Max. Ambient Temp. 104°F
Motor Application OEM Replacement
Motor Bearings Sleeve
Motor Design Shaded Pole
Motor Enclosure Design OAO
Motor Frame Material Steel
Motor Mounting Type Rigid Base
Motor Service Factor 1
Motor Shaft Design Flat
Motor Shaft Rotation Counter Clockwise Shaft End
Motor Shaft Rotation CCWSE
Motor Sub Application Condenser Fan
Motor Thermal Protection Auto
Motor Type Shaded Pole
Mounting Type Bracket
No. Of Poles 4
No. Of Shafts 1
No. Of Speeds 1
Number Of Shafts 1
Number Of Speeds 1
Oem Replacement Brand Tecumseh
Opp Drive End Bearing Sleeve
Output Hp 1/12 hp
Output Kw 0.06 kW
Overall Length 7"
Phase 1
Replacement For 810E026A81
Rpm 1500/1300 RPM
Service Factor 1
Shaft Dia. 0.313"
Shaft Extension Size 2.15"
Shaft Length 2 1/8"
Shaft Type Flat
Starting Method Across The Line
Thermal Protection Automatic
Usable @ 200v No
Usable @ 208v No
Voltage 230V
Weight 9 lbs.

Shipping Info:

Ship weight (kg) 2.24
Ship height (cm)11.43
Ship length (cm)20.32
Ship width (cm)11.43
Country of OriginMX

Product Variants

ProductModelMotor Enclosure DesignVoltagePhaseFull Load AmpsNameplate RpmHpMounting TypeService FactorPrice
CENTURY H845 ODP Resilient Base Mot, 3 HP, 3, 450 Nameplate RPM, 200-230/460VAC, P56HZ Frame, 3-Phase | CQ8LMG 48Y949 H845Dripproof200-230/460V AC34.3/9-8.6A3450 RPM3 hpCushion Base1.15€922.36
CENTURY BK3074 ODP Resilient Base Motor | CQ8LMH 48Y955 BK3074--------€736.91
CENTURY RB3154AV1 ODP Resilient Base Motor, 1 1/2 HP, 1, 725 Nameplate RPM, 208-230/460VAC, 56HZ Frame | CQ8LMJ 48Y957 RB3154AV1Open Dripproof208-230/460V AC34.6/2.3A-1 1/2 hpResilient Base1.15€819.92
CENTURY H852L ODP Resilient Base Motor, 1 HP, 1, 725 Nameplate RPM, 200-230/460VAC, M56H Frame, 3-Phase | CQ8LMK 48Y954 H852LOpen Dripproof200-230/460V AC32/3.7-4A--Resilient Base1.15€696.41
CENTURY RB3204AV1 ODP Resilient Base Motor, 2 HP, 1, 725 Nameplate RPM, 208-230/460VAC, 56HZ Frame, 3-Phase | CQ8LML 48Y959 RB3204AV1Open Dripproof208-230/460V AC35.8/2.9A1725 RPM2 hpResilient Base1.15€822.75
CENTURY OB3204V1 ODP Rigid Base Motor | CQ8LMM 48X980 OB3204V1--------€697.80
CENTURY H847 ODP Rigid Base Motor, 5 HP, 3, 450 Nameplate RPM, 208-230/460VAC, Y56HZ Frame, 3-Phase | CQ8LMN 48Y985 H847Dripproof208-230/460V AC36.6/13.4-13.2A3450 RPM5 hpRigid Base1.15€1,109.87
