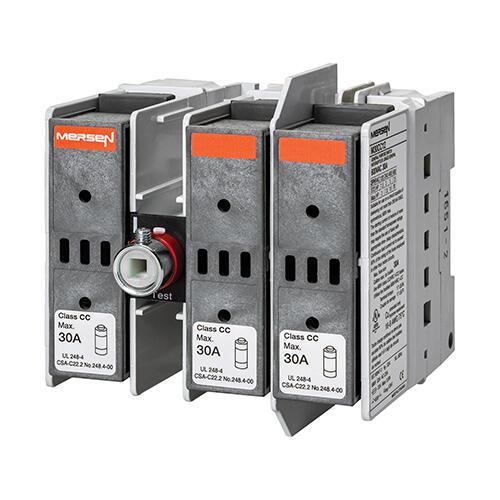

MERSEN FERRAZ M30CC12 Disconnect Fuse, Class CC, 600V, 30A, 3 Pole
Get it by Tuesday, Dec 23
€749.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 30A |
| Connection/terminal Type | Box |
| Contact Type | Double Break |
| Fuse Class | Class CC |
| Height | 104.4 mm |
| Installation Mounting | Direct Screw Mount |
| Length | 113 mm |
| Max. Fuse Rating | 30A |
| Maximum Horsepower Rating/fla | 3 Phase 240V 7.5 Hp, 480V 15 Hp, 600V 20 Hp, 1 Phase 120V 2 Hp, 240V 3 Hp |
| Number Of Poles | 3 |
| Product Datasheet | mersen-ferraz-m100j03.pdf |
| Product Group | UL/CSA Switches |
| Rated Insulation Voltage | 1000V |
| Rated Torque | 17 lbs.in. |
| Rated Voltage Ac Ul | 600V |
| Rohs Compliant | Yes |
| Short Circuit Current Rating (sccr) | 200 kA |
| Short Circuit Rating (standalone) | 200 kA |
| Torque Rating | 1.921 N-m |
| Width | 106.2 mm |
| Wiring Range | #18 to 8 |
Shipping Info:
| Ship weight (kg) | 0.73 |
| Ship height (cm) | 10.8 |
| Ship length (cm) | 13 |
| Ship width (cm) | 24 |
Product Details:
- 1-2 Pole Configuration
