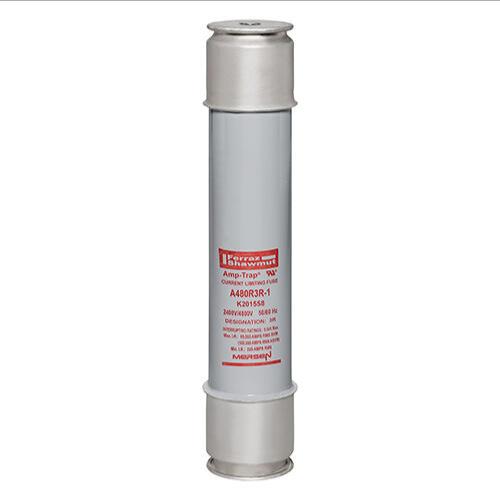

MERSEN FERRAZ A480R3R-1 Fuse, Medium Voltage, 4800V, R Rated
Item: CH4UNNModel: A480R3R-1Cross Ref: 15D755
7 In Stock
Ships within 2 days via
10.00% off
€804.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max I.r./breaking Capacity I1 | 65 kA |
| Ac Voltage | 4800V AC |
| Ac/dc | AC |
| Amps | 100A |
| Body Material | Epoxy |
| Body Style | Cylindrical |
| Body/insulating Material | Epoxy |
| Class | R-Rated |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dc Voltage Rating | Not Rated |
| Design Details | 3R |
| Diameter | 76.2 mm |
| Element | Single |
| Equivalent Brand And Series | Bussmann Jcl, Mersen A480R |
| Equivalent Series | A480R, Jcl |
| Finish | Silver Plated |
| Fits Fuse Block Style | Nonrejection |
| Frequency | 50/60 Hz |
| Fuse Size | 15 7/8" x 3" |
| Height | 76.2 mm |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Interrupt Rating | 50 kA (Sym.) @ 4800V AC |
| Length | 403.4 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-a480r12r-1he.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 4800V |
| Rohs Compliant | Yes |
| Series | A480R Series |
| Speed | Time Delay |
| Speed Characteristic | R Rated |
| Visual Indication | Indicating |
| Width | 76.2 mm |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 45.09 |
| Ship width (cm) | 10.16 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Height | Dc Voltage Rating | Speed | Visual Indication | Body Style | Body Material | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A480R12R-1HE | - | 76.2 mm | - | - | - | - | Epoxy | Clip | €3,358.32 | |
 |
A480R18R-1 | 18A | 162.8 mm | Not Rated | - | - | - | Epoxy | Clip | €4,144.80 | |
|
A480R18R-1HE | - | 162.8 mm | - | - | - | - | Epoxy | Clip | €4,389.00 | |
 |
A480R24R-1 | - | 162.8 mm | - | - | - | - | Epoxy | Clip | €4,144.80 | |
|
A480R24R-1HE | - | 162.8 mm | - | - | - | - | Epoxy | Clip | €4,389.00 | |
|
A480R2R-1 | - | 76.2 mm | - | - | - | - | Epoxy | Clip | - | RFQ
|
|
A480R2R-1HE | - | 76.2 mm | - | - | - | - | Epoxy | Clip | €1,491.60 |
