MERSEN FERRAZ A480R2R-1 Fuse, Medium Voltage, 4800V, R Rated
Get it by Wednesday, Aug 26
€1,476.45 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 65 kA |
| Ac Voltage | 4800V AC |
| Ac/dc | AC |
| Body Material | Epoxy |
| Body/insulating Material | Epoxy |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Design Details | 2R |
| Dia. | 76.2 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Height | 76.2 mm |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 403.4 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-a480r12r-1he.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 4800V |
| Rohs Compliant | Yes |
| Speed Characteristic | R Rated |
| Width | 76.2 mm |
Shipping Info:
| Ship weight (kg) | 4.95 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 45.09 |
| Ship width (cm) | 10.16 |
Documentation:
Product Variants
| Product | Model | Amps | Ac Max. I R Breaking Capacity I1 | Height | Design Details | Fits Fuse Block Style | Class | Ac Voltage | Mounting | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
A480R12R-1HE | - | 50 kA | 76.2 mm | 12R | - | - | 4800V AC | Clip | €3,358.32 | |
 |

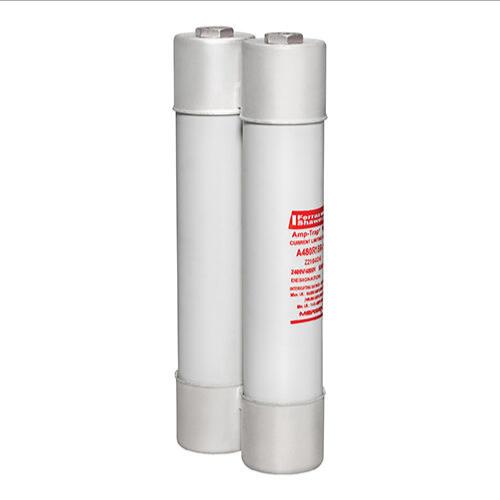

A480R18R-1 | 18A | 64 kA | 162.8 mm | 18R | - | - | 4800V AC | Clip | €4,144.80 | |
|
A480R18R-1HE | - | 50 kA | 162.8 mm | 18R | - | - | 4800V AC | Clip | €4,389.00 | |
 |

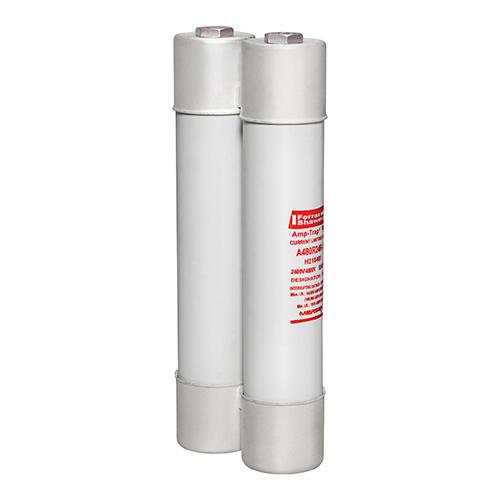

A480R24R-1 | - | 64 kA | 162.8 mm | 24R | - | - | 4800V AC | Clip | €4,144.80 | |
|
A480R24R-1HE | - | 50 kA | 162.8 mm | 24R | - | - | 4800V AC | Clip | €4,389.00 | |
|
A480R2R-1HE | - | 50 kA | 76.2 mm | 2R | - | - | 4800V AC | Clip | €1,491.60 | |
|
A480R36R-1 | - | 64 kA | 246.9 mm | 36R | - | - | 4800V AC | Clip | €5,029.20 |
