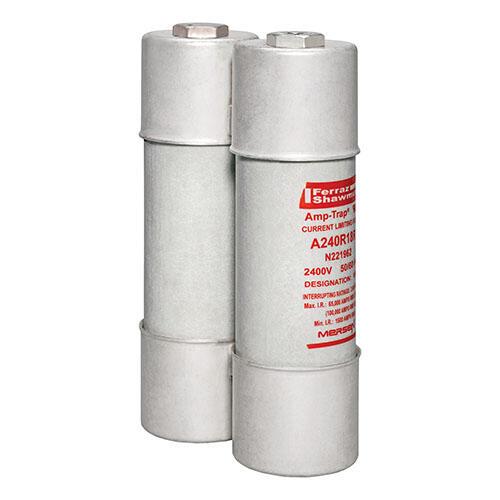

MERSEN FERRAZ A240R18R Fuse, Medium Voltage, R Rated, 2400V
Get it by Tuesday, Sep 1
€4,534.20 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 65 kA |
| Ac Voltage | 2400V AC |
| Ac/dc | AC |
| Body Material | Epoxy |
| Body/insulating Material | Epoxy |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Design Details | 18R |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Height | 162.8 mm |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 276.4 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60lcb502.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 2400V |
| Rohs Compliant | Yes |
| Speed Characteristic | R Rated |
| Width | 162.8 mm |
Shipping Info:
| Ship weight (kg) | 7.09 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 32.39 |
| Ship width (cm) | 20.32 |
Documentation:
Product Variants
| Model | Ac Max. I R Breaking Capacity I1 | Design Details | Height | Ac Voltage | Mounting | Frequency | Connection/terminal Material | Connection/terminal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 9F60LCB502 | 50 kA | 2R | 76.2 mm | 2400V AC | Clip | 50/60 Hz | Copper | Ferrule | €1,867.80 | |
| 9F60LCB503 | 50 kA | 3R | 76.2 mm | 2400V AC | Clip | 50/60 Hz | Copper | Ferrule | €1,867.80 | |
| 9F60LCB504 | 50 kA | 4R | 76.2 mm | 2400V AC | Clip | 50/60 Hz | Copper | Ferrule | €1,867.80 | |
| 9F60LCB506 | 50 kA | 6R | 76.2 mm | 2400V AC | Clip | 50/60 Hz | Copper | Ferrule | €3,643.20 | |
| 9F60LCB509 | 50 kA | 9R | 76.2 mm | 2400V AC | Clip | 50/60 Hz | Copper | Ferrule | €3,643.20 | |
| 9F60LCB512 | 50 kA | 12R | 76.2 mm | 2400V AC | Clip | 50/60 Hz | Copper | Ferrule | €3,643.20 | |
| 9F60LCL302 | 50 kA | 2R | 76.2 mm | 2400V AC | Clip | 50/60 Hz | Copper | Ferrule | €2,125.20 |
