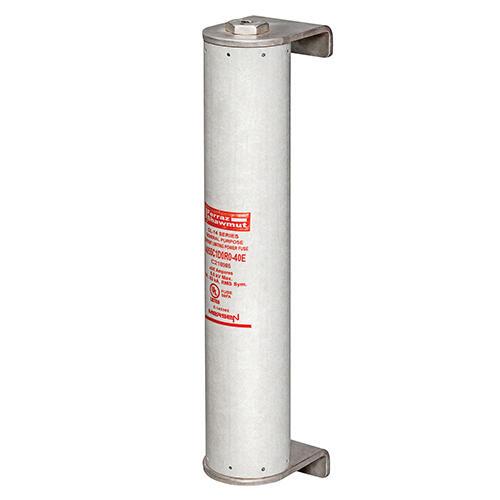

MERSEN FERRAZ A055C1D0R0-40E Fuse, Medium Voltage, 5500V, 40A, E Rated, Mount Striker
Get it by Tuesday, Sep 1
€2,237.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 63 kA |
| Ac Voltage | 5500V AC |
| Ac/dc | AC |
| Amps | 40A |
| Body Material | Polytube |
| Body/insulating Material | Polytube |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dia. | 76.2 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 427 mm |
| Mounting | Clip Lock |
| Product Datasheet | mersen-ferraz-a055c1d0r0-100e.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5500V |
| Speed Characteristic | E Rated |
Shipping Info:
| Ship weight (kg) | 5.67 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 71.42 |
| Ship width (cm) | 13.97 |
Product Details:
- With Clip Lock
Documentation:
Product Variants
| Product | Model | Amps | Ac Voltage | Mounting | Frequency | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Connection/terminal Type | Rated Voltage Ac Ul | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A055C1D0R0-100E | 100A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €2,336.40 | |
 |
A055C1D0R0-10E | 10A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €1,768.80 | |
 |
A055C1D0R0-125E | 125A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €4,092.00 | |
 |
A055C1D0R0-150E | 150A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €4,092.00 | |
 |
A055C1D0R0-15E | 15A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €1,768.80 | |
 |
A055C1D0R0-200E | 200A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €4,092.00 | |
 |
A055C1D0R0-20E | 20A | 5500V AC | Clip Lock | 50/60 Hz | 63 kA | Copper | Blade | 5500V | €1,768.80 |
