MERSEN FERRAZ 9F60DNJ003 Fuse, Medium Voltage, 25800V, 3A, E Rated, Ferrule Mount Striker
Get it by Tuesday, Dec 23
€2,204.40 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max I.r./breaking Capacity I1 | 35 kA |
| Ac Voltage | 25800V AC |
| Ac/dc | AC |
| Amps | 3A |
| Body Material | Epoxy |
| Body/insulating Material | Epoxy |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Diameter | 50.8 mm |
| Finish | Silver Plated |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 588.8 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60cmj001.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 25800V |
| Speed Characteristic | E Rated |
Shipping Info:
| Ship weight (kg) | 2.6 |
| Ship height (cm) | 7.32 |
| Ship length (cm) | 60.17 |
| Ship width (cm) | 6.99 |
Documentation:
Product Variants
| Product | Model | Amps | Mounting | Ac Voltage | Body Material | Height | Price | |
|---|---|---|---|---|---|---|---|---|
 |
9F60CMJ001 | 1A | Clip | 25800V AC | Epoxy | - | €2,013.00 | |
 |
9F60CMJ002 | 2A | Clip | 25800V AC | Epoxy | - | €2,013.00 | |
 |

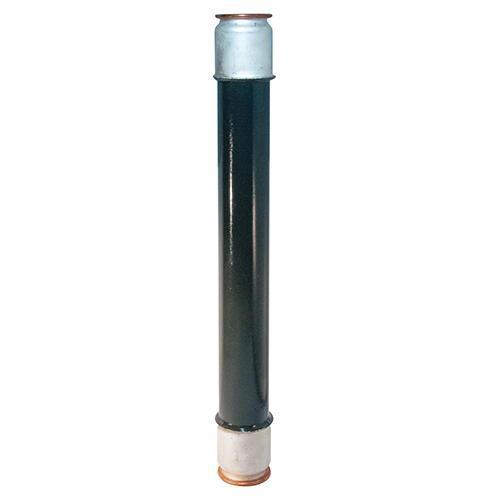

9F60CMJ905 | 0.5A | Clip | 25800V AC | Epoxy | - | €2,013.00 | |
 |
9F60DNJ001 | 1A | Clip | 25800V AC | Epoxy | - | €2,013.00 | |
 |
9F60DNJ002 | 2A | Clip | 25800V AC | Epoxy | - | €2,204.40 | |
 |
9F60DNJ005 | 5A | Clip | 25800V AC | Epoxy | - | €2,013.00 | |
 |
9F60DNJ007 | 7A | Clip | 25800V AC | Epoxy | - | €2,013.00 |
