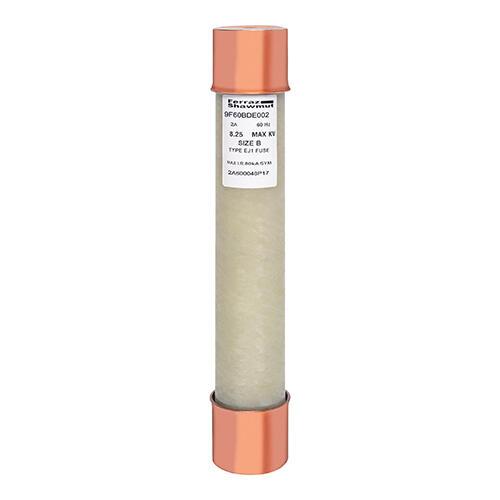

MERSEN FERRAZ 9F60BDE002 Fuse, Medium Voltage, 8250V, 2A, PT Type, Ferrule Mount
Get it by Tuesday, Aug 25
€641.52 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max. I R Breaking Capacity I1 | 50 kA |
| Ac Voltage | 8250V AC |
| Ac/dc | AC |
| Amps | 2A |
| Body Material | Epoxy |
| Body/insulating Material | Epoxy |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Dia. | 39.6 mm |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 241.3 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60aaa003.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 8250V |
Shipping Info:
| Ship weight (kg) | 0.81 |
| Ship height (cm) | 5.56 |
| Ship length (cm) | 33.81 |
| Ship width (cm) | 5.38 |
Documentation:
Product Variants
| Product | Model | Ac Voltage | Amps | Ac Max. I R Breaking Capacity I1 | Connection/terminal Material | Rated Voltage Ac Ul | Body/insulating Material | Dia. | Finish | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9F60AAA003 | 625V AC | 3A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €375.12 | |
 |
9F60AAA005 | 625V AC | 5A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €375.12 | |
 |
9F60AAA007 | 625V AC | 7A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €384.36 | |
 |
9F60AAA010 | 625V AC | 10A | 100 kA | Copper | 625V | Epoxy | 20.6 mm | - | 2 | €375.12 | |
 |
9F60AAB001 | 2750V AC | 1A | 52 kA | Copper | 2750V | Epoxy | 20.6 mm | - | 2 | €492.59 | |
|
9F60AAB002 | 2750V AC | 2A | 52 kA | Copper | 2750V | Epoxy | 20.6 mm | - | 2 | €492.59 | |
 |
9F60BBB001 | 2750V AC | 1A | 52 kA | Copper | 2750V | Epoxy | 39.6 mm | - | 1 | €641.52 |
