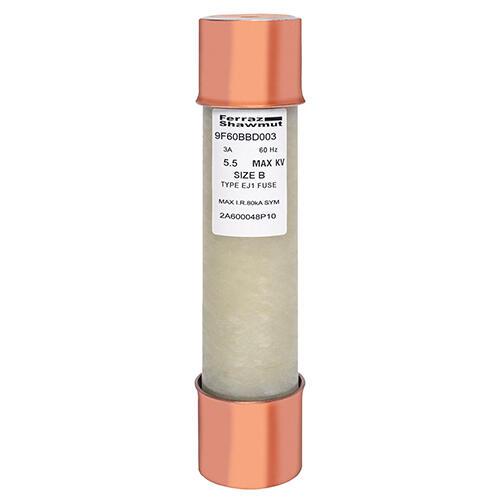

MERSEN FERRAZ 9F60BBD003 Fuse, Medium Voltage, 5500V, 3A, PT Type, Ferrule Mount
Get it by Monday, Dec 22
€661.32 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Medium Voltage Fuse |
| Ac Max I.r./breaking Capacity I1 | 63 kA |
| Ac Voltage | 5500V AC |
| Ac/dc | AC |
| Amps | 3A |
| Body Material | Epoxy |
| Body/insulating Material | Epoxy |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Diameter | 39.6 mm |
| Frequency | 50/60 Hz |
| Indication System | Yes |
| Indication System Type | Visual Indicator |
| Length | 187.5 mm |
| Mounting | Clip |
| Product Datasheet | mersen-ferraz-9f60aaa003.pdf |
| Product Group | Medium Voltage IEEE Fuses |
| Rated Voltage Ac Ul | 5500V |
Shipping Info:
| Ship weight (kg) | 0.71 |
| Ship height (cm) | 5.56 |
| Ship length (cm) | 33.81 |
| Ship width (cm) | 5.38 |
Documentation:
Product Variants
| Product | Model | Amps | Speed | Visual Indication | Ac Voltage | Body Material | Interrupt Rating | Dc Voltage Rating | Body Style | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
9F60AAA003 | 3A | - | - | 625V AC | Epoxy | - | - | - | 2 | €375.12 | |
 |
9F60AAA005 | 5A | - | - | 625V AC | Epoxy | - | - | - | 2 | €375.12 | |
 |
9F60AAA007 | 7A | - | - | 625V AC | - | - | - | - | 2 | €384.36 | |
 |
9F60AAA010 | 10A | - | - | 625V AC | Epoxy | - | - | - | 2 | €375.12 | |
 |
9F60AAB001 | 1A | - | - | 2750V AC | Epoxy | - | - | - | 2 | €492.59 | |
|
9F60AAB002 | 2A | - | - | 2750V AC | Epoxy | - | - | - | 2 | €492.59 | |
 |
9F60BBB001 | 1A | - | - | 2750V AC | Epoxy | - | - | - | 1 | €641.52 |
