MERSEN FERRAZ 61033T Fuse Base, 600V, 100A, Class T, 3 Pole, Tin Plated, Aluminium Box | CH4RLK

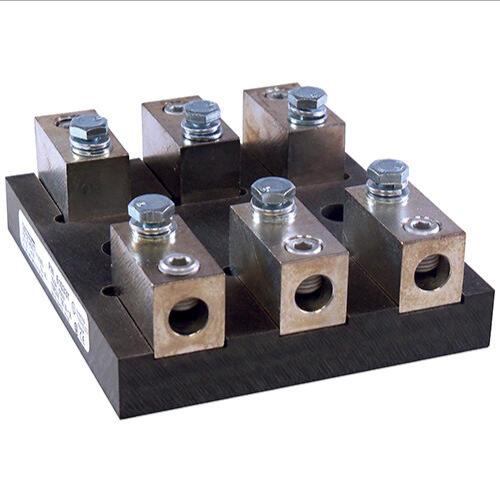

MERSEN FERRAZ 61033T Fuse Base, 600V, 100A, Class T, 3 Pole, Tin Plated, Aluminium Box

Item: CH4RLKModel: 61033TCross Ref: 5LDN5
7 In Stock

Ships within 2 days via

€356.47
5.00% off
€338.65 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Fuse Base
Ac Voltage Rating 600V AC
Ac/dc AC/DC
Amps 100A , 61-100A
Body Material Phenolic
Body/insulating Material Phenolic
Connector Type Box Lug
Features Unique Adder Block Design
Fits Fuse Type Industrial
For Fuse Size 2 15/16" x 13/16", 2 61/64" x 3/4"
Frequency 50/60 Hz
Fuse Block Design Open
Fuse Block Style Nonrejection
Fuse Class Class T
Fuse Installation Method Clip In
Fuse Ul Class Class T
Height 49.5 mm
Installation Mounting Direct Screw Mount
Length 121.4 mm
Max. Fuse Rating 100A
Mounting Style Bolt Down
No. Of Poles 3
Product Datasheet mersen-ferraz-30305t.pdf
Product Group Fuse Bases
Rated Voltage Ac Ul 600V
Rated Voltage Dc Ul 600V
Rohs Compliant Yes
Short Circuit Amps Rating (sccr) 200 kA
Spring Reinforced Clip Yes
Torque 13.558 N-m
Visual Indication Non Indicating
Voltage 600V AC/DC
Width 111.3 mm
Wire 6 AWG to 2/0 AWG

Shipping Info:

Ship weight (kg) 0.68
Ship height (cm)4.95
Ship length (cm)12.14
Ship width (cm)11.13
Country of OriginMX

Documentation:

Datasheet

Product Variants

ProductModelAmpsHeightNo. Of PolesBody/insulating MaterialInstallation MountingMax. Fuse RatingTorqueMounting StylePkg. Qty.Price
MERSEN FERRAZ 60305T Fuse Base, 600V, 30A, Class T, Adder, Tin Plated, Aluminium Box | CH4REJ 60305T30A39.6 mmAdderGlass Filled PolycarbonateScrew Mount, Din Rail30A3.954 N-m-10€339.64
MERSEN FERRAZ 60306T Fuse Base, 600V, 30A, Class T, 1 Pole, Tin Plated, Aluminium Box | CH4REN 60306T30A39.6 mm1Glass Filled PolycarbonateScrew Mount, Din Rail30A3.954 N-m-1€40.94
MERSEN FERRAZ 60307T Fuse Base, 600V, 30A, Class T, 2 Pole, Tin Plated, Aluminium Box | CH4RET 60307T30A39.6 mm2Glass Filled PolycarbonateScrew Mount, Din Rail30A3.954 N-mBolt-Down, DIN Rail1€45.38
MERSEN FERRAZ 60308T Fuse Base, 600V, 30A, Class T 3 Pole, Tin Plated, Aluminium Box | CH4REX 60308T30A39.6 mm3Glass Filled PolycarbonateScrew Mount, Din Rail30A3.954 N-mBolt-Down, DIN Rail1€138.22
MERSEN FERRAZ 60315T Fuse Base, Adder, 600V, 30A, Class T, Tin Plated, Copper Screw | CH4RFJ 60315T30A39.6 mmAdderGlass Filled PolycarbonateScrew Mount, Din Rail30A2.26 N-m-10€283.66
MERSEN FERRAZ 60316T Fuse Base, 600V, 30A, Class T, 1 Pole, Tin Plated, Copper Screw | CH4RFN 60316T30A39.6 mm1Glass Filled PolycarbonateScrew Mount, Din Rail30A2.26 N-m-10€324.32
MERSEN FERRAZ 60317T Fuse Base, 600V, 30A, Class T, 2 Pole, Tin Plated, Copper Screw | CH4RFT 60317T30A39.6 mm2Glass Filled PolycarbonateScrew Mount, Din Rail30A2.26 N-m-5€286.97
